Curved tempered glass

Price: US$ 70$ / Square Meter
Minimum Order: 50sqm
Payment Terms: 30% TT first
Port of Export: Qingdao Port
Product Details
Model No.: Brand Name:
Certification: CE,ISO
Specification: Max. Size 2200x750(mm)
Min Size 400*300(mm)
Thickness 5-19(mm)
Min. Benting Radius 370mm
Packaging & Delivery
Packaging: Wooden Crates
Delivery/Lead Time: Within 15days
Production Capacity: 1000 container Per Month
Product Description
*More than 10 years manufacturer and supplier experience
*Quick delivery of 15 days.
*Australian Standard: AS/NZS 2208: 1996-safety glazing matererials
*Safety strong packing and loading
*Option processing clear, frosted, heat soaked, heat strengthened
*Edging: Flat edge, grind edge, polished edge, beveled edge and others.
Features:

1.5 times harder than ordinary float glass.
2. Tensile strength for float glass 40 MPa (N/mm2), tempered glass, 120-200 MPa (N/mm2)
3. Quality standard AS/NZS 2208: 1996
4. It withstands abrupt temperature change of 220 Centigrade.
5. Once breakage occurs, the glass disintegrates into small cubical fragments, which are relatively harmless to human body.
Bent/Curved Tempered Glass

Max. Size 2200x750(mm)
Min Size 400*300(mm)
Thickness 5-19(mm)
Min. Benting Radius 370mm

Applications:
1. External use of windows, doors, curtain wall, shopfronts, offices, houses, shops etc.
2. Interior glass screens, partitions, balustrades etc.
3. Shop display windows, showcases, display shelves etc.
4. Furniture, table-tops, picture frames etc.

Tempered Glass Equipments

1. Water jet machine, cutting tolerance +-0.1mm
2. Screen Printing Equipment
3. Single Straight-line Glass Edging Machine
4. Double Straight-line Glass Edging Machine
5. Round Glass Edging Machine
6. Glass Drilling Machine
7. Glass Tempering Furnace
8. Glass cutting line

Packing detail:

1. Interlay paper between two sheets
2. Timber end caps
3. Iron/plastic belt for consolidation
4. Safety corner

Specifications:

Density  2.5g/cm±

Tensile Strength  120-200 MPa (N/mm2)

Compressive Strength   1000 N/mm 2

Yong's Module  73 Gpa

Coefficient of linear expansion   9 x 10 - 6 m/Mk

softening point    650-700®C
Thickness 4mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm

Payment term (1)    30% deposit ,balance paid against the copy of B/L

payment term (2)
30% deposit ,balance will be L/C at sight
Delivery time     15 days after received the deposit
Packing    End caps pakcing within stripe and paper
MOQ    500 Square meter
Loading port   Qingdao port
Australian Standard:   AS/NZS 2208:1996-safety glazing matererials

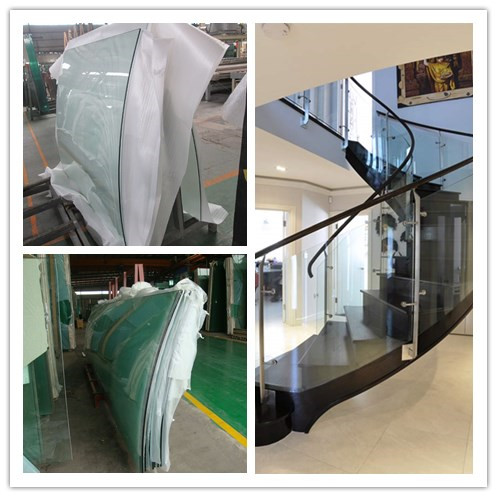

Curved tempered glass
Curved Tempered Glass
Curved Tempered Glass
