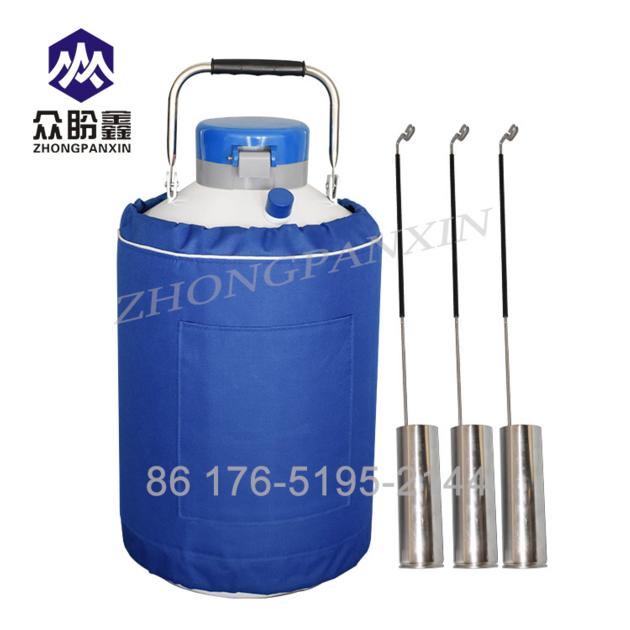

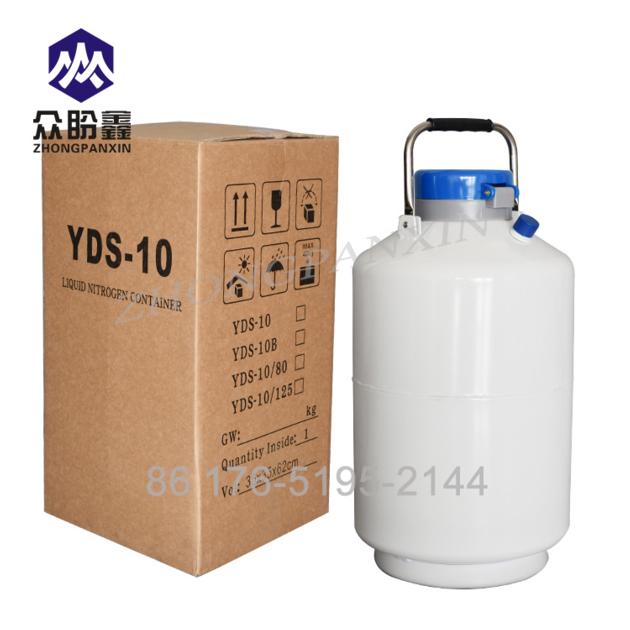

Cryogenic Tank YDS-10 Liquid Nitrogen Container

Cryogenic Tank YDS-10 Liquid Nitrogen Container

YDS-series products are mainly made up of outer shell, inner vessel, neck tube, multi-layer isolating material and canisters.
1.The outer shell and inner vessel are made of the aluminum alloy plate featuring light weight, high cryogenic strength and corrosion resistance.
2.The neck tube is made of glass-fiber reinforced plastics featuring of high mechanical strength and low heat conductivity.
3.The multi-layer insulation is composed of the reflecting screen of aluminum foils with high reflectivity and insulation material with low heat conductivity and low gas-passing speed to reduce heat radiation.
4.The jacket between the outer shell and inner vessel is of high vacuum to prevent thermal convection. Moreover, an adsorbent with a high adsorbing capacity at the cryogenic temperature is used to ensure the long-term stable and reliable performance of the dewar with more than five-year life service.

ZPX Liquid Nitrogen Tank Application

1. Preservation of animal semen; commonly used in cattle, sheep, pigs and other fine species of public animals and other semen preservation of animal semen, and long-distance transportation and storage.
2. Preservation of biological sample activity; Liquid nitrogen tank biological research field has a wide range of applications, commonly used in vaccines, bacterial strains, cells, human organs, animal organs and other biological samples for long-term preservation, immersed in liquid nitrogen tanks The sample can be stored for a long time and can be used when it is taken out and thawed.
3. Refrigeration and freezing in the medical and health industry, liquid nitrogen is often used in the medical field for cryotherapy during surgery
4. Use in beauty salons, beauty salons are often used for information on problems such as spotting, spotting, corns, and flat warts.
5. Food industry; used to freeze food, make liquid nitrogen ice cream, liquid nitrogen dishes, etc.
6. Stage wedding; stage smoke

ZPX liquid nitrogen tank Company Information

Xinxiang Zhongpanxin Instruments Co., Ltd. is a professional liquid nitrogen tank manufacturer with R&D, production and sales department, located in the Da Zhaoying Filter Park in Xinxiang City, Henan Province. The factory covers an area of 3,000 square meters, icnlude 8 vacuum production lines, pull-up foundry workshop, cutting and rounding workshop, welding workshop, wrapping workshop, office area and so on. We have 2 masters with 18 years of first-line production experience, Research and Development design engineers, 4 professional machine operators, 10 domestic sales executives, 15 foreign marketing executives.
The common liquid nitrogen tanks we have are 2L, 3L, 6L, 10L,15L, 20L, 30L, 35L, 50L, 60L, 80L, 100L. Otherwise, we also support customized design. Our tanks are widely used in animal husbandry, gas companies, beauty industry , food industry and so on.
