Corrugator Belt
| Price: | US$ 55 / Square Meter |
|---|---|
| Minimum Order: | 100 |
| Payment Terms: | T/T LC |
| Port of Export: | TIANJIN |
Product Details
| Model No.: | YXKSD --- Reinforced Edges Kevlar armored on both edges | Brand Name: | YIKE |
|---|
| Certification: | CE |
|---|---|
| Specification: |
Corrugator Belt
Model型号 YXKSD YXHSD Material材料 100% PET SYNTHETICS Speed适用车速 100-300m/min Weight 重量 7.6+0.2kg/m2 Thicknss厚度 8-9mm Width宽度 1400-3200mm Heat resistance耐热 240℃(Kevlar 350℃) 240 Tension抗拉强度 65MPA Air.permeability透气量 2.0M3/M2MIN Min.winding radius最小转弯半径 R70(mm) Life寿命 40-50 MILLION METER |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | 60days |
| Production Capacity: | 50/YEAR |
Product Description

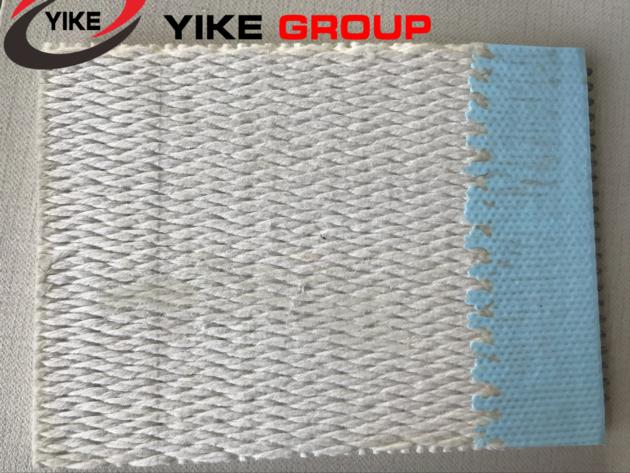

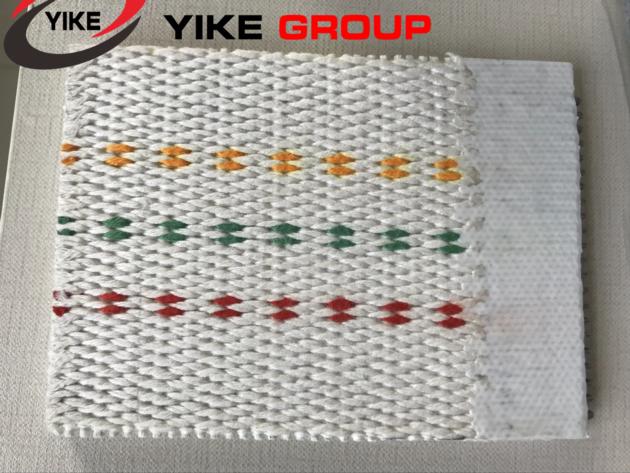

·5-layer woven fabric
·Composition of cotton, synthetic and IFDY
·High moisture absorption and release; Low noise and high speed
·Woven structure, anti-skidding
Introduction
Corrugator belt also named Corrugated board conveyor belt.
Corrugator belt is for corrugated board production line and developed specifically for Double Facer. Corrugator belts consistently keep the fastest absorption & release of moisture, which secures high quality cardboards with less consumption of heat and energy, and higher speed is assured. Corrugator belt have been specially developed for the transport of board and optimization of the drying process ,they resist the stress continuously and achieve as long a life as possible.
Type
Normal High speed corrugator belt & High speed corrugator belt with Kevlar edge

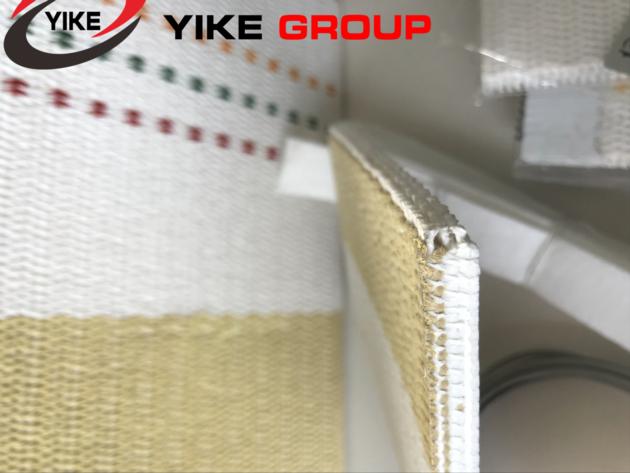

YXKSD --- Reinforced Edges Kevlar armored on both edges
-----------------------------------------------------------
Width: 1400-3200mm
Speed: 100-300m/min
Kevlar edge: 100-200mm
Suitable for: Top and Bottom Belt
Change cardboards width frequently , or hotter plates.
|
