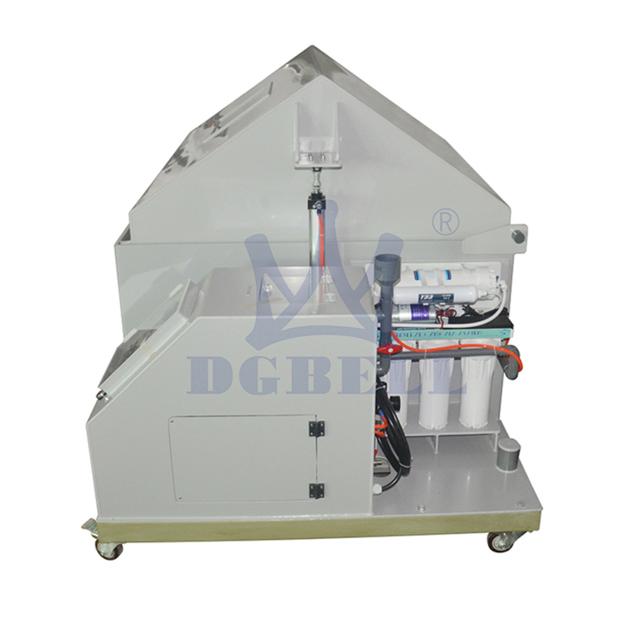

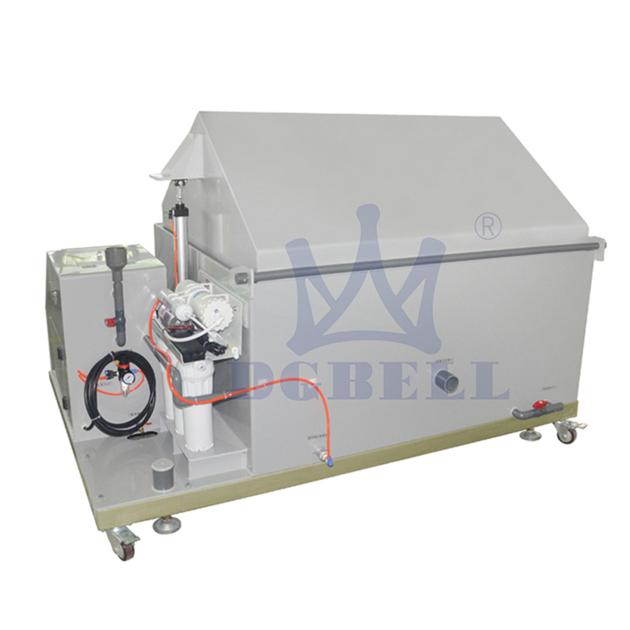

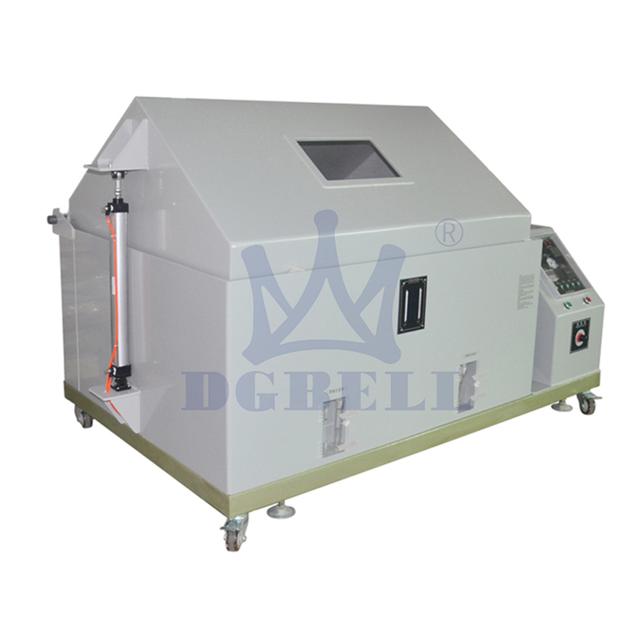

Corrosion Test Chamber/ Salt Spay Test Chamber

Product Application
This equipment mainly used for simulating salt fog corrosion, testing the
corrosion resistance test of products. After anti-corrosion treatment on the
various materials surface, including coating, electroplating, inorganic and
organic film, anode processing, anti-rust oil, test performance in
anticorrosion.
Technical Parameters
Test machine Temperature Scope
RT(Room Temperature)~55℃
Pressure Tank Temperature Scope
RT (Room Temperature) ~70℃
Brine temperature
35℃¯1℃
Temperature Fluctuation
≤¯0.5℃
Temperature Uniformity
≤¯2℃
Temperature Deviation
≤¯1℃
Spray Flow
1 ~ 2ML/80cm2 1hr (Based on mean value by 16

hour’s Gathering)
Relative Humidity
≥85% HR
Spray Pressure
1.00¯0.01 kgf/cm2
PH
Neutral 6.5~7.2 /Acid 3.0~3.3
Specifications
Model No.
Internal Dimension (mm)
External Dimension (mm)
BE-CS-60
W600*H400*D450
W1070*H1180* , D600
BE-CS-90
W900*H500*D600
W1310*H1280* , D880
BE-CS-120
W1200*H500*D1000
W1900*H13 , 00*D1400
BE-CS-160
W1600*H500*D1000
W2300 , *H1400*D1300
BE-CS-200
W2000*H500*D1200
W , 2700*H1500*D1500

Standard Complance
1.ASTM B117 Salt Spray (Fog) Test

1. ASTN D1654 Standard Test Method For Evaluation of Painted or Coated
Specimens
Subjected to Corrosive

2. Environments

3. ASTM D3359 Standard Test Methods for Measuring Adhesion By Tape Test

4. JIS H8502 Methods of Corrosion Resistance Test For Metallic Coatings

5. IEC 60068-2-11-1981 Basic Environmental Testing Procedures Part 2: Tests,
Test
Ka: Salt Mist

6. IEC6802-52 1996 Environmental Testing-Part 2: Tests-Test Kb: Salt mist,
cyclic
(Sodium Chloride Solution)

7. GJB 150.11A-2009 Laboratory Environmental Test Methods For Military
Material-
Part 11: Salt Fog Test

8. CNS 4159 CASS Test-Copper Accelerated Acetic Acetic Acid Salt Spray (Fog)
Test

9. CNS 4158 Method of Salt Spray Fog Test for Surface Finishing

10. MIL-STD810F Environmental Engineering Considerations and Laboratory Tests

11. MIL-STD 202 Test Method Standard: Electronic and Electrical Component Parts

12. MIL-STD 883 Test Method Standard: Microcircuits

13. MIL-STD 1344 Test Methods For Electrical Connectors

14. RTCA DO-160 Section 14 (Avionics) IEC 68 Part 2

15. NEMA 250 Enclosures for Electrical Equipment

16. SAE J2334 International Surface Vehicle Standard-Cosmetic Corrosion Lab
Test

17. SAE J 1211 Recommended Environmental Practices For Electronic Equipment
Design

18. GM 9540P General Motors Engineering Standards: Accelerated Corrosion Test

Features
With automatic / manual water supply system ,can automatically add water when
water shortage, do not interrupt test.

Temperature controller with digital display, PID control error ¯0.1℃

Double overheating protection, water shortage warning

Adopting steam direct heating mode, heating speed and uniformity, reduce the
standby time

With automatic/manual water system, water shortage will automatically added
water,
test don't interrupt., PID control error 0.1 ℃

Double over temperature protection, insufficient water level warning

Adopts steam heating mode directly, fast and uniform temperature rise, reduce
the
standby time
