Copper plated CuS acrylic conductive filaments 150D/60F or 150D/80F yarns-XT11322

copper plated CuS acrylic conductive filaments 150D/60F or 150D/80F for anti bacteria socks/beddings



Product Description
a) thickness 150D/60F or 150D/80F

b) other spec.:

70~1000ohm/cm 75D/40F 150D/80F or 150D/60F 300D/160F etc.
1000~2000 ohm/cm 75D/40F 150D/80F or 150D/60F 300D/160F etc.


Based materials: acrylic DTY
Conductivity: (10^1~10^2) ohm/cm.
Elongation at break: (15-25)%.
Tenacity at break: (1.94~3.39)g/Denier
cuprous sulfide: less than 8% approx.


Characteristics and application
--------------------------------------------------------------------------------------------------------------

a) ESD(anti static)
As the conductivity of it is (10^1~10^2) ohm/cm,
so, it has good anti static properties when it is combined/blended with
other filament/staple fibers.
At the same time, it has good washability resistant and soft hand feeling.
And it has good textile properties for processing easily.



b) Anti-EMR(anti electromagnetic wave radiation)
As the conductivity of it is (10^1~10^2)ohm/cm, so, it also has excellent
shielding effectiveness. The shielding efficiency is more than 35DB at 0.15MHz~3GHz.



c) Anti-bacteria
The active copper ion in fiber could damage the metastasis of the
bacteria, make them die out. Has the stable and persistent anti
bacteria ability.



d) Gathering heat and heat preservation
In the sunlight, the copper ion in fiber generates surge
phenomenon, therefore, bring about heat and temperature of fiber to
be raised. Therefore, it has the high efficiency of heat gathering
and preservation.



e) Application
Mainly used for home textiles, garments(anti bacteria socks, underwear, etc.)
and intelligent textiles, military and industrial textiles, etc. .
-------------------------



Packaging & Shipping

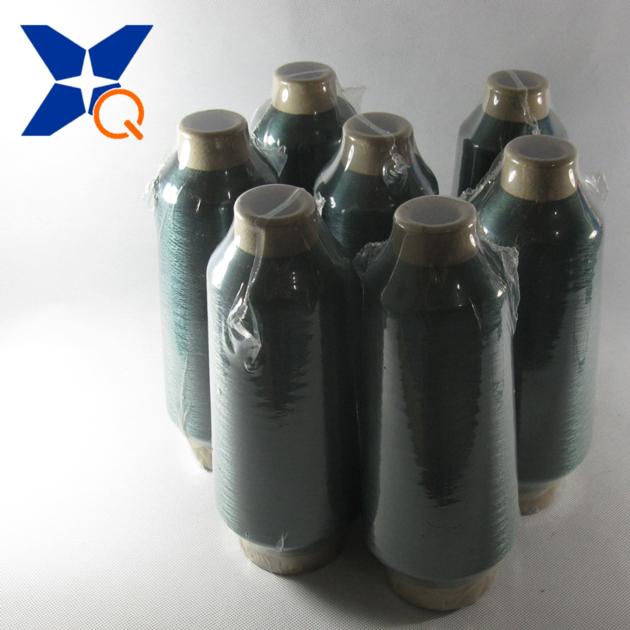

32 bobbins/carton, net weight 16kg/carton, dimension: 56cm*56cm*38cm

By DHL/TNT/UPS/FedEx, by general air transportation, by sea

Our Services

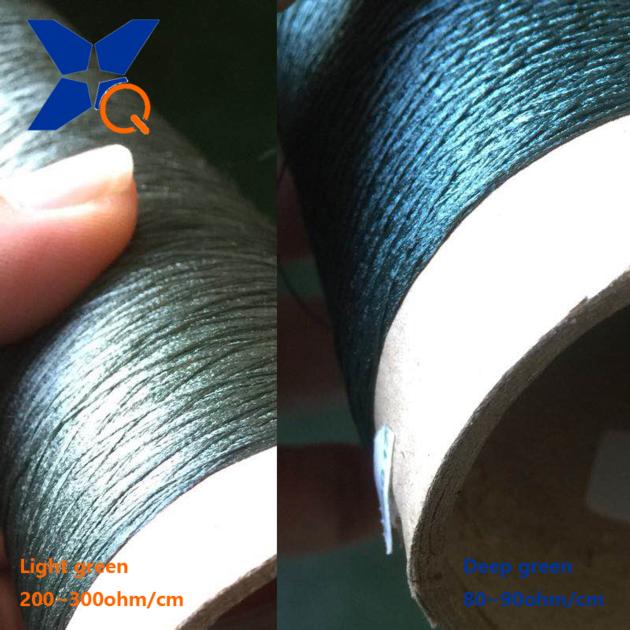

Surface resistance could be customzied, from 70~2000ohm/cm.

FAQ
a) Could shield electromagnetic wave radiation?

Of course, because it possesses low resistance, could achieve to more than shielding efficien
