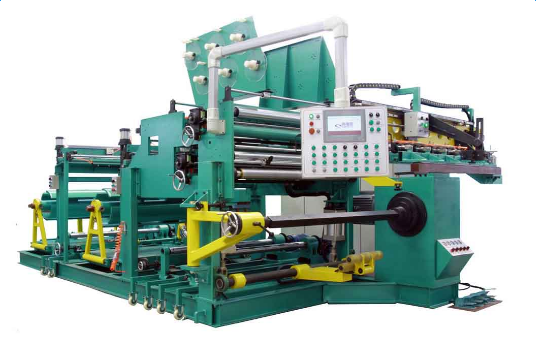

Copper & aluminum foil winding machine

Instruction:

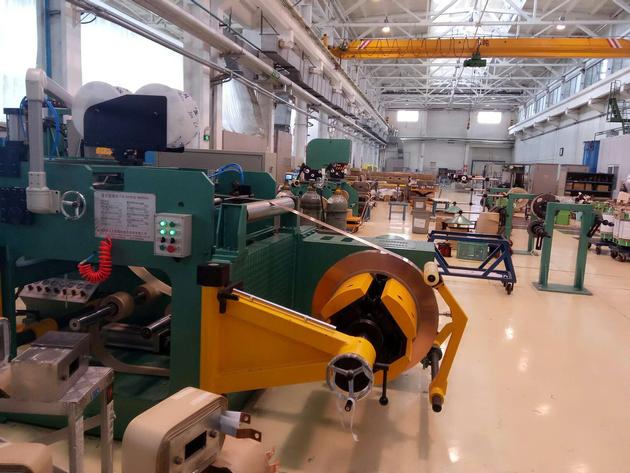

Clamping core foil winding machine for power transformers and reactors industry foil line
Laps wound. Foil coil or in a different thickness of copper foil with a conductor, like broadband
Insulating material for interlayer insulation, complete wound on the winding machine, formed into a roll-shaped coil.Meanwhile End A coil inside and outside surface dressing. The shape of the coil may be circular, elliptical, rectangular and the like.

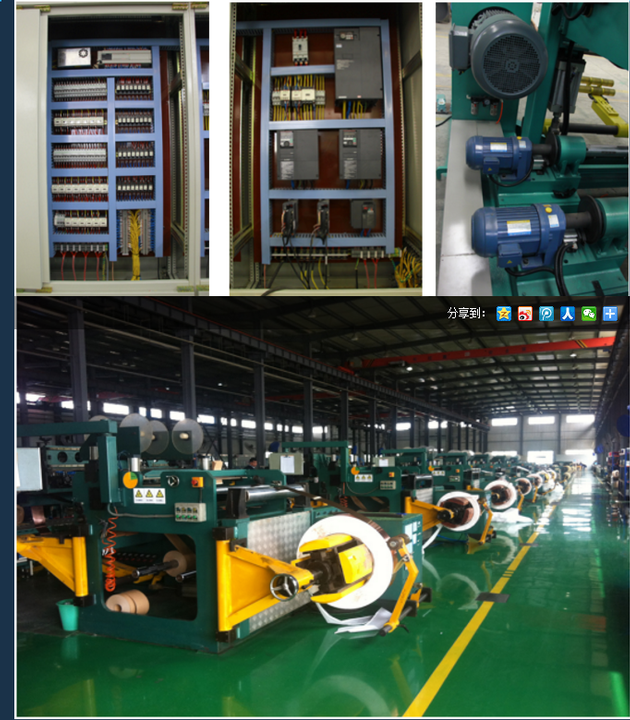

Main components of the machine:
1. Foil material uncoiler
2. Feeding wool pressure device
3. Winding device
4. Insulation unwinding device
5. Correction system
6. Main Frame
7. Automatic welding equipment
8. Pneumatic devices
9. Electrical System
Main Technical Parameters:
Item
Technical Parameters
Product Name
Foil winding machine
Model
BRJ1102
Height of coil
1100mm
Thickness of foil
0.5-2.5 mm
Max. outer diameter of coil
Φ 1000mm
Form of coil
Rectangular; Round;oval
Winding speed
0-20r/min stepless frequency speed adjustment
Max. tension of foil tape
6000N stepless and adjustable
Winding power
15KW
Welding method/speed
TIG/0-1.5r/min
Rectification accuracy
¯0.5mm
