Copper Conductor XLPE Insulated Steel Tape Armoured PVC Sheathed Electric Cable
| Price: | US$ 500 / Roll |
|---|---|
| Minimum Order: | 1km |
| Payment Terms: | T/T; L/C |
| Port of Export: | Shanghai / Ningbo |
Product Details
| Model No.: | Brand Name: | Qinshan |
|---|
| Certification: | ISO, TUV, SONCAP, CCC, |
|---|---|
| Specification: | Copper Conductor XLPE Insulated Steel Tape Armoured PVC Sheathed Electric Cable |
Packaging & Delivery
| Packaging: | As per requirement |
|---|---|
| Delivery/Lead Time: | 20 days |
| Production Capacity: | 100000 |
Product Description

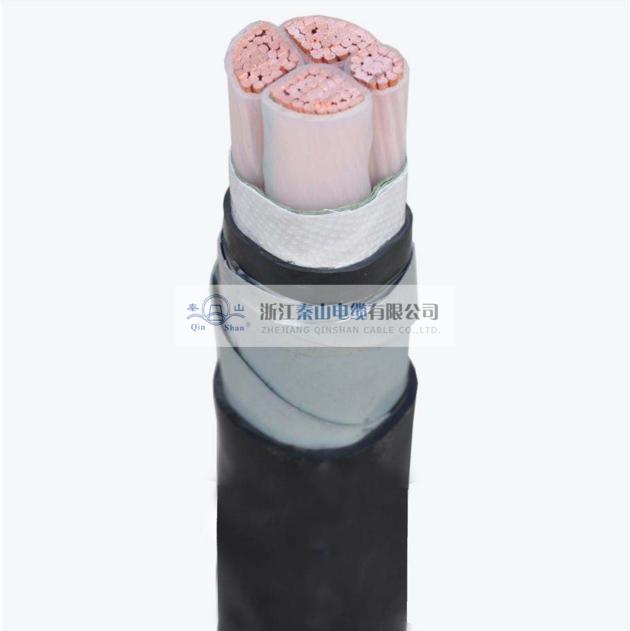

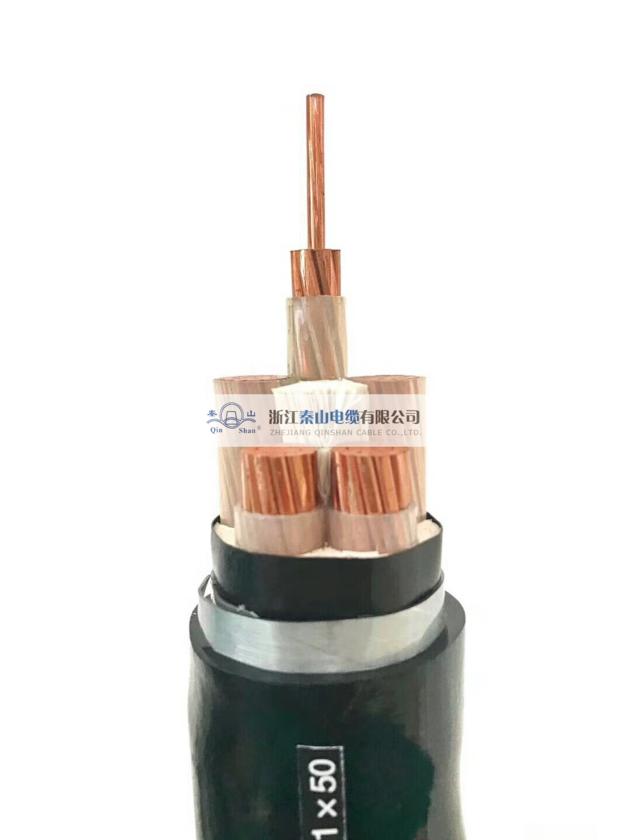

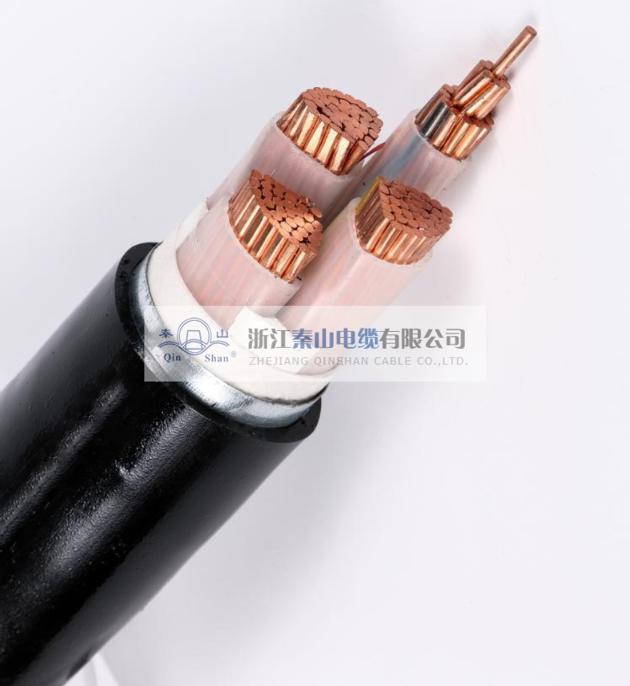

Copper Conductor XLPE Insulated Steel Tape Armoured PVC Sheathed Electric Cable Model No.: YJV22-0.6/1.0KV
Application: Power Transmission And Lighting Systems
Standards: IEC 60502, IEC 60228, GB/T 12706.1-2008
For laying indoors and outdoors, it's able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.
Rated voltage: 0.6/1.0kV
Maximum conductor temperature: normal 90℃, short circuit (no more than 5s) 160℃ when section-area below 300mm2, 140℃ when section-area above 300mm2
Minimum ambient temperature: The cable shall be pre heated if the ambient temperature is below 0℃
Minimum bending radius:
For single core cable 20 x (d+D) ¬5%
For multi-cores cable: 15 x (d+D) ¬5%
|
