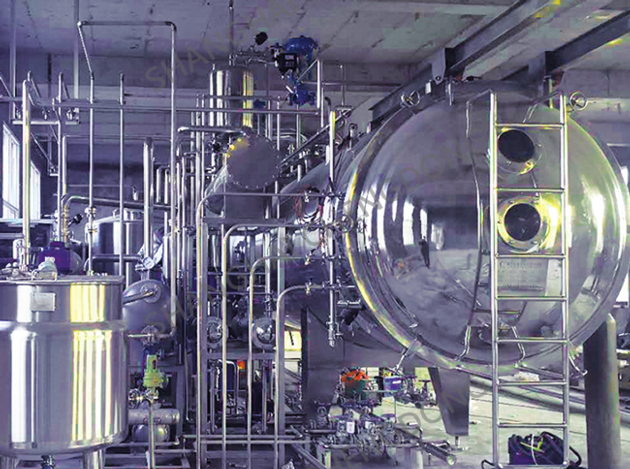

Continuous low-temperature Vacuum belt dryer
| Price: | US$ 10000 / Set |
|---|---|
| Minimum Order: | 1set |
| Payment Terms: | 30% down payment +70% before shipping |
| Port of Export: | Shanghai,China |
Product Details
| Model No.: | ZDG 120-7(120m2) | Brand Name: | CHENGDONG |
|---|
| Certification: | ISO ,GMP |
|---|---|
| Specification: |
S/No. Specification Technical Parameter
1 Volume 66m± 2 Heating transfer area 120m° 3 Water evaporation capacity 100Kg/h 4 Layers of belt & Material 7 Layers/Teflon 5 Heating Method Stream and Water 6 Working Vacuum Degree 1000～3000Pa（adjustable） 7 Product mesh after drying 20～80mesh（adjustable） 8 Moisture content of dried product 1%～5%（adjustable） 9 Weight ≈22T 10 Power ≈100Kw（based on actual usage） 11 Size 21M（L）×3.0M（W）×4.0M（H） |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | 10weeks |
| Production Capacity: | 50sets/Mth |
Product Description
Main Features & Advantage:
1.The whole set of process is in automation, channelization and continuity;
2.The targets of continuous feeding and discharging in vacuum condition have been reached;
3.The operations of drying, smashing and pelletizing can be completed in vacuum condition;
4.The operation cost is 1/3 of vacuum drying oven and spray drying, and 1/6 of freeze drying;
5.The maximum operators just two, the labour costs are reduced greatly;
6.Heating and Cooling plate adopt advanced technology manufacture whole life around 30yrs ;We are the first to use this technology in the world;
7.Drying temperature can be adjusted from 25℃ to 150℃ according to process technological requirements;
8.Heat sensitive materials will not be denatured or contaminated;
9.Drying powder can be discharged in 30-60min and the discharging rate is 99%;
10.Can dry liquid and pasty materials with high viscosity difficult drying.Online automatic-cleaning, in accordance with GMP standard;
|
SUPPLIER PROFILE
|
|||
|---|---|---|---|
| Company: | Shanghai Chengdong Machinery Co.,Ltd | ||
| City/State | SHANGHAI, | Country: |
China
|
| Business Type: | Export - Manufacturer / Trading Company | Established: | 1983 |
| Member Since: | 2021 | Contact Person | Ella CAI |
