Consolidation Test Device
| Price: | US$ ask for last price / Unit |
|---|---|
| Minimum Order: | |
| Payment Terms: | CASH , L/C, TT, MONEYGRAM, WESTERN UNION |
| Port of Export: |
Product Details
| Model No.: | Brand Name: | ParsRos |
|---|
| Certification: | |
|---|---|
| Specification: |
Standards

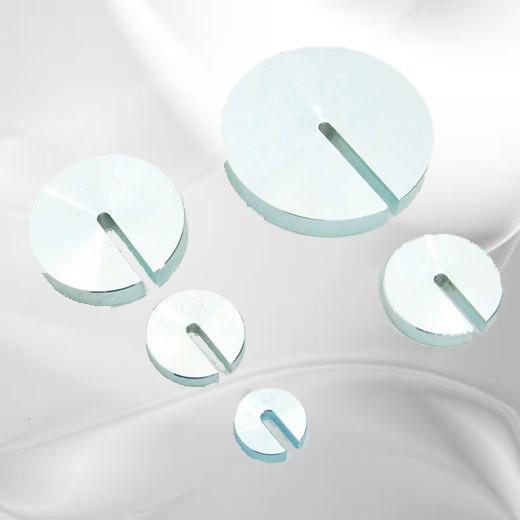

BS 1377:5; ASTM D2435, D3877, D4546; AASHTO T216; CEN ISO/TS 17892-5 Product Code Sets of Weight forConsolidation PRS-ZE034016 kgf Set (2) 5 kg, (1) 2 kg, (2) 1 kg, (3) 0,5 kg, (2) 0,25 kg PRS-ZE0342 32 kgf Set (1) 10 kg, (3) 5 kg, (2) 2 kg, (1) 1 kg, (3) 0,5 kg, (2) 0,25 kg PRS-ZE0344 50 kgf Set (3) 10 kg, (2) 5 kg, (3) 2 kg, (2) 1 kg, (3) 0,5 kg, (2) 0,25 kg PRS-ZE0346 64 kgf Set (4) 10 kg, (3) 5 kg, (2) 2 kg, (3) 1 kg, (3) 0,5 kg, (2) 0,25 kg PRS-ZE0348 80 kgf Set (6) 10 kg, (2) 5 kg, (3) 2 kg, (2) 1 kg, (3) 0,5 kg, (2) 0,25 kg |
Packaging & Delivery
| Packaging: | yes |
|---|---|
| Delivery/Lead Time: | |
| Production Capacity: |
Product Description
Consolidation Test Device
PRODUCT CODE
PRS-ZE0300 Front Loading Oedometer (Consolidation)
PRS-ZE0302 Bench for Consolidation, 3 Oedometer Capacity
PRS-ZE0307 Consolidation Cell for High Pressure, Ø 50 mm
PRS-ZE0309 Consolidation Cell for High Pressure, ASTM Ø 63.5 mm (2.5”)
PRS-ZE0311 Consolidation Cell for High Pressure, BS/EN, Ø 75 mm
PRS-ZE0317 Calibration disc for Ø 50 mm consolidation cell (PRS-ZE0307), stainless steel
PRS-ZE0319 Calibration disc for Ø 63,5 mm consolidation cell (PRS-ZE0309), stainless steel
PRS-ZE0321 Calibration disc for Ø 75 mm consolidation cell (PRS-ZE0311), stainless steel
PRSGM-0120 Analog Dial Gauge, 30x0.01 mm
PRSGM-0148 Digital Dial Gauge 25x0.01 mm, LCD display
PRSGM-0152 Digital Dial Gauge 12.7x0.001 mm, LCD display
PRSGM-0060 Linear Potentiometric Displacement Transducer, 10x0,001mm
PRSGM-0062 Linear Potentiometric Displacement Transducer, 25x0,001mm
PRSGM-0072 High Accurate Strain Gauge Based Displacement Transducer, 10x0,001 mm
PRSGM-0078 High Accurate Strain Gauge Based Displacement Transducer, 50x0,001 mm
PRSG-0320 Static Unilogger, 4 Channel Data Acquisition Unit
PRSG-0325 Static Unilogger, 8 Channel Data Acquisition Unit
PRS-ZE0330 Utest Software for Consolidation Test

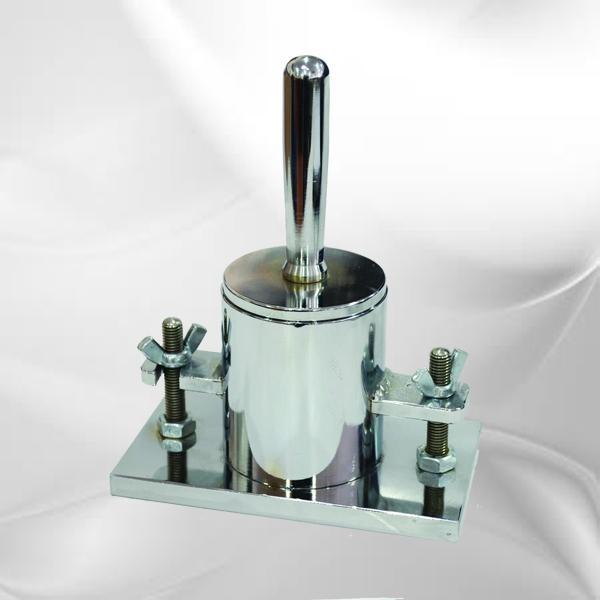

PRS-ZE0332 Apparatus for prepare Consolidation Sample,for Ø 50 mm. samples.
PRS-ZE0334 Apparatus for prepare Consolidation Sample, for Ø 63.5 mm. samples.
PRS-ZE0336 Apparatus for prepare Consolidation Sample, for Ø 75 mm. samples.
The PRS-ZE0300 Front Loading Oedometer is rigidly constructed to ensure minimum frame distortion.
The frame is designed to load the specimen through a lever arm assembly and one of three alternative beam ratios as 9:1, 10:1 and 11:1.
The beam is fitted with a counter balance weight and beam support jack.
The cell platform will accept the complete range PARSROS consolidation cells and is fitted with a central spigot to ensure accurate centering of the cell under the loading.

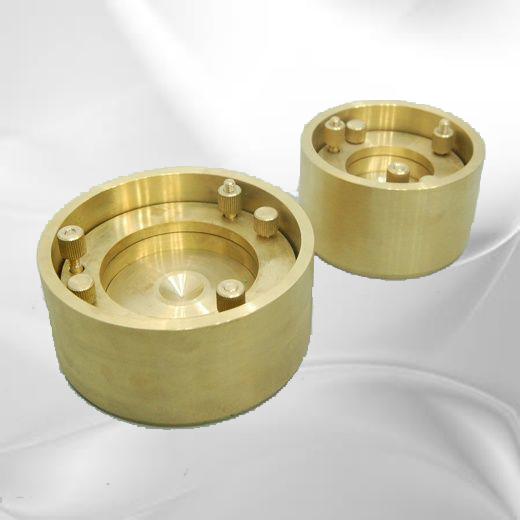

The PARSROS fixed ring consolidation cells are manufactured from corrosion-resistant materials and conform to the requirements of the relevant standards.
An integral water reservoir is incorporated in the cell which allows the specimen to be inundated when required.
All cells are supplied complete with upper and lower porous disc, pressure pad and cutting (specimen) ring.
The One-dimensional Consolidation test is used to determine the consolidation characteristics of soils of low permeability.
Tests are carried out on specimens prepared from undisturbed samples.
Data obtained from these tests together with classification data and a knowledge of the soils loading history, enables estimates to be made of the behavior of foundations under load.
Consolidation cell, dial gauge or displacement transducer and data logger, bench, weights, apparatuses for prepare Consolidation samples and calibration disc should be ordered separately.
Data Acquisition & PC Software
4 or 8 channel static uniloggers (PRSG-0320 or PRSG-0325 ) are used for recording displacement data over time.
• High resolution : 260.000 points.
• Serial port for PC and printer
connection.
• CPU card by microprocessor 32 bit ARM risk architecture.
• 4 or 8 analogical channels for displacement transducers.
The PARSROS consolidation software is developed according to ASTM D2435, D3877, D4546, BS 1377:5 and AASHTO T216 standarts to use with static unilogger systems.
The displacement transducers are connected to unilogger and unilooger is connected to PC by RS232 serial output.
The software is capable monitoring the chance of displacement data over times. The user can start recording of vertical displacement and stop current recording proses.
The user can enter time intervals(or select fixed time intervals) and stress for calculattion consolidation test data.
The consolidation software have 8 different columns which can be set to different normal load values.
The user can also manually enter the vertical displacement to these columns. The time-displacement pairs are drawn to square root time and logaritmic time graphs.
The software can calculate enginnering terms like as square root t90, t50, t100, mv, Cv. These calculations are done respect to the standarts requirements by using best line algorithms.
Since these parameters require an engineering perspective while making comments, all test data and graphs are exported to Microsoft Excel for further investigations.
• Foreign Language Support and Customizable User Interface
• Graphical outputs and reports can be saved as a MS Excel worksheet
• Maximum Flexibility to edit report and graph templatesTypical Loadin
|
