Compressometer-Extensometer

Compressometer-Extensometer
PRODUCT CODE
PRS-B0303 Compressometer-Extensometer for 100x200 mm (4"x8") and 150x300 mm (6"x12")Cylinders with 3 Digital Dial Gauges

PRS-B0304 Compressometer-Extensometer for 100x200 mm (4"x8") and 150x300 mm (6"x12")Cylinders with 2 Digital Dial Gauges

PRS-B0313 Compressometer-Extensometer for 100x200 mm (4"x8") and 150x300 mm (6"x12") Cylinders with 3 Linea Potantiometric Displacement Transducers

PRS-B0314 Compressometer-Extensometer for 100x200 mm (4"x8") and 150x300 mm (6"x12") Cylinders with 2 Linear Potantiometric Displacement Transducers

PRS-B0323 Compressometer-Extensometer
for 100x200 mm (4"x8") and 150x300 mm (6"x12") Cylinders with 2 High Accurate Displacement Transducers

PRS-B0324Static Unilogger, 4 Channel Data Acquisition Unit,

PRS-B0320 Digital Dial Gauge, 12,7 x 0.001 mm,
LCD Display
PRSGM-015 Linear Potentiometric Displacement Transducer, 10 mm,

PRSGM-0060 High Accurate Strain Gauge Based
Displacement Transducer, 10 mm

PRSGM-0072 General Purpose Strain Gauge, 10 mm

PRSGM-0180 General Purpose Strain Gauge, 20 mm

PRSGM-0182 General Purpose Strain Gauge, 30 mm

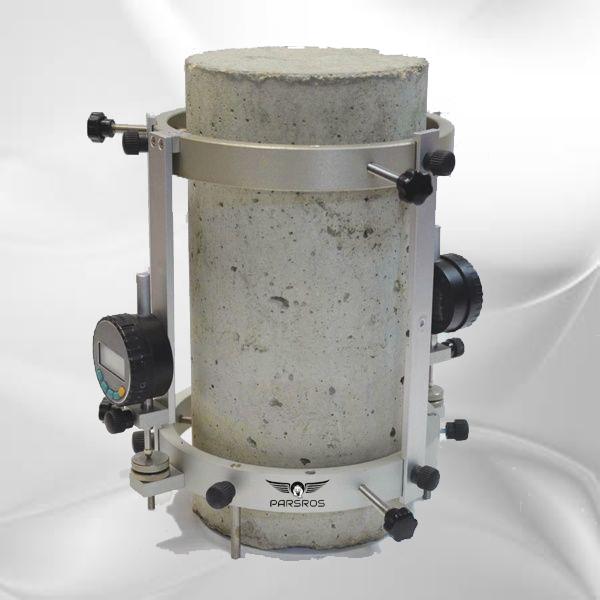

Concrete Compressometers are used to determine the deformation (both axial and diametrical) of concrete cylinder or cube specimens during the compression test.

There are 6 different models available for Ø4”x8” or Ø100x200 mm cylinders , Ø6”x12” or Ø150x300 mm.

The PRS-B0303 is supplied complete with 3 pcs. and PRS-B0304 is supplied complete with 2 pcs. digital dial gauges, 12.7x0.001 mm, LCD display.

The PRS-B0313 is supplied complete with 3 pcs. and PRS-B0314 is supplied complete with 2 pcs. Linear Potentiometric Displacement Transducers 10 mm, nominal resistance 1kΩ .
The PRS-B0323 3is supplied complete with 3 pcs. and PRS-B0324 is supplied complete with 2 pcs. Linear High Accurate Strain Gauge Based Displacement Transducer, 10 mm, rated output 5mV/V, nonlinearity within ¯0,1% RO, hysteresis within ¯0,1% RO.

For displacement controlled test, PRS-B0313, PRS-B0314, PRS-B0323 and PRS-B0324 should be used with PRS-B4850 or PRS-B4860 advanced servo controlled automatic power packs with proportional valve units or PRS-B4870 or PRS-B4880 advanced servo controlled automatic power pack with servo valve.
For load controlled test, PRS-B0313 , PRS-B0314, PRS-B0317 , PRS-B0323and PRS-B0324 can be used with any PARSROS servo controlled or PARSROS automatic power packs.
If the any compressiometer ( exept compressometers with digital dial gauges) is used with PARSROS semi-automatic or automatics powerpacks, PRS-B0320 Static Unilogger is also required and should be ordered separately.

PRS-B0303 , and PRS-B0304 can be used with any PARSROS machine indipendent of power pack type.

The Compressometers/Extensometers are supplied complete with;
• Digital dial gauge or displacement transducer depending on the model, 3 pcs. or 2 pcs.
• Wooden Box
