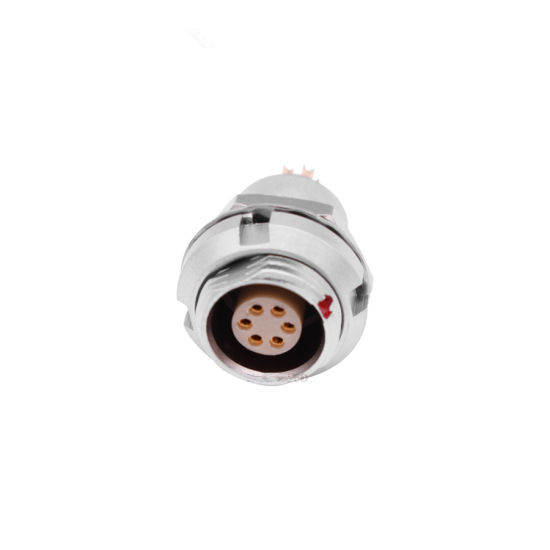

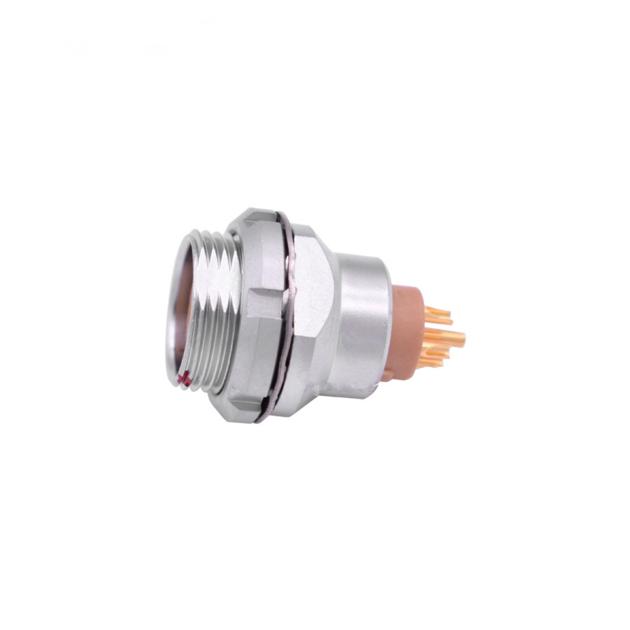

Compatible Lemo push-pull self-locking connector EEG Female socket

Industry Application:

Medical connector: Analyzers, Processing Equipment, Dental Equipment, Electrosurgical Devices, Pacemakers and Hearing Devices;

Audio-video connector: HDTV/Media Converter, Remote Cam / Motion Pict Cam(Indoors/outdoors), Analog Audio/Video, Digital Audio, Lighting - Indoors/outdoors;

Test & Measurement connector: GPS (portable or vehicle mounted), High Voltage Experiments, Meters, Sources, Analyzers, Weather Sensors, Quality Inspections;

Information system connector: Authentication Devices, Computers (outdoors), Input Devices, Printers/Copiers,

Automotive connector: Cars/Trucks (inside), Crash Dummies, Engine Compartments, Emergency Vehicles,

Research connector: Robots, Sub-Atomic Research, Physics Research, Laboratories;

Aerospace connector: Airplanes/Helicopters, Baggage Screeners;

Communication connector: Antennas - Indoors/outdoors, Headsets/IBFs (Reporters), Remote Control, RF/uWave,

System control connector: Security/Surveillance – Indoors, outdoors.

Features:

· Straight male plug with nut for bend relief..

· Push-pull self-latching system for mating and unmating easily.

· Multi-contact types 2 to 26 contacts.

· Solder pins for cable.

· Keying system ("G"key standard) for connector alignment.

· Multiple key options to avoid cross mating of similar connectors.

· High packing density for space savings.

· 360® screening for full EMC shielding.

Technical characteristics:

Mechanical and Climatically;

1. Endurance: > 5000 mating cycles;

2. Humidity : up to 95% at 60 degree;

3. Temperature range: -45 , +125 ;

4. .Resistance to vibration : 15 g[10 HZ-2000HZ];

5. Shock resistance: 100 g ,6 MS;

6. Salt spray corrosion test : > 48h;

7. Protection index (mated) : IP50.
