Compact Three-Head Rotary Plasma Sputtering Coater with Vacuum Pump for Gold, Silver and Copper Coat
| Price: | US$ 8100 |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | L/C T/T D/P Western Union Paypal Money Gram Others |
| Port of Export: | Zhengzhou, Shanghai, Qingdao, etc. |
Product Details
| Model No.: | CY-PSP180G-3TA-WRS | Brand Name: | CYKY |
|---|
| Certification: | CE |
|---|---|
| Specification: |
Input Power
Single phase 220 VAC, 50 / 60Hz 800W (including vacuum pump) Chamber size: φ180mm*150mm Chamber material: High purity quartz Opening mode: Top cover removable Stage size: φ138mm Rotate speed: 1 – 20rpm adjustable Sputtering distance range: 20 – 35 mm adjustable Sputtering head Quantity: 3 Target size requirements: 2 inches Dia. * max. 2.5 mm Thickness Vacuum system Mechanical pump: Double stage rotary vane pump Pumping rate: 4 m3/h (1.1 L/S) Ultimate vacuum: 10-1 Pa Inlet/outlet interface: KF16 Vacuum measuring: resistance vacuum gauge DC power supply Quantity: 1 Application: for metal sputter coating, such as gold, silver and copper Max. output power: 150W Dimension 360mm*300mm*470mm Net weight ~40kg Warranty One year limited with lifetime support Film thickness monitor Power supply requirement: DC 5V(¯10%) Max. 400mA Resolution: +/- 0.03Hz (5-6MHz), 0.0136Ã/ measuring (Aluminum) Accuracy: +-/05% thickness +1 Measurement speed: 100mS-1S adjustable Measurement range: 500 000Ã (Aluminum) Standard sensor crystal: 6MHz Communication interface: RS-232/485 Display precision: 8-digit LED display Maximum dimension: 90 * 50 * 18mm (L* W * H) Working temperature range: 0-50 ®C Humidity range: 5%-85%RH, no condensed water |
Packaging & Delivery
| Packaging: | Standard export wooden box packaging |
|---|---|
| Delivery/Lead Time: | 30 days |
| Production Capacity: | 200 Sets/Month |
Product Description

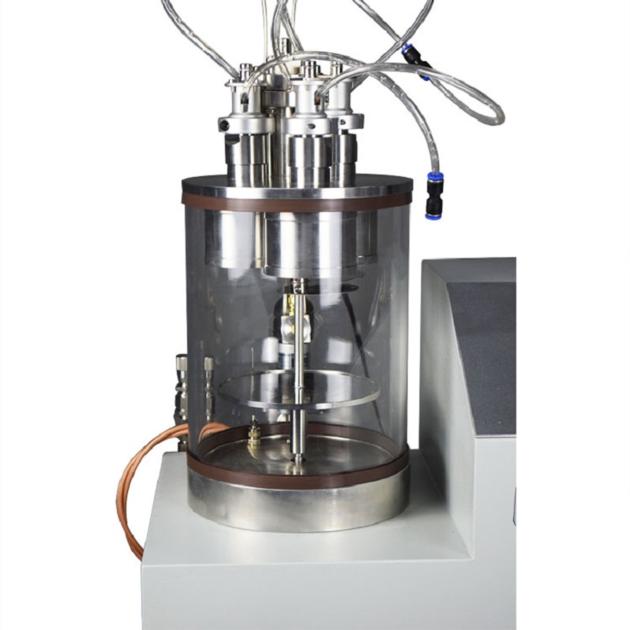

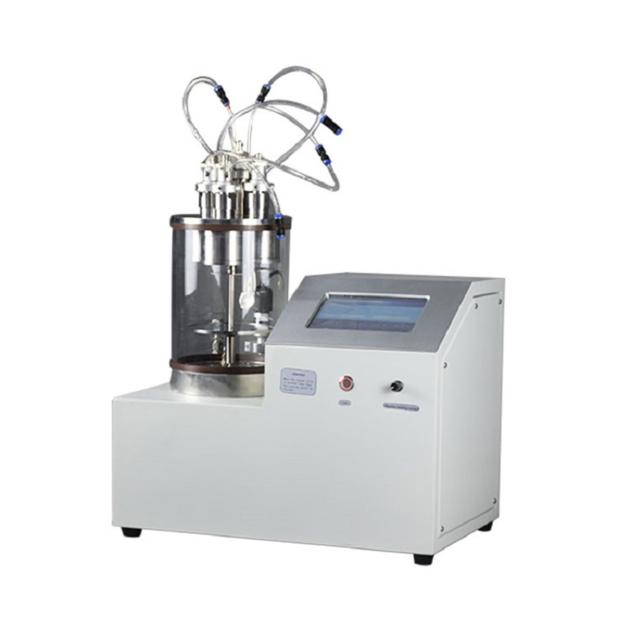

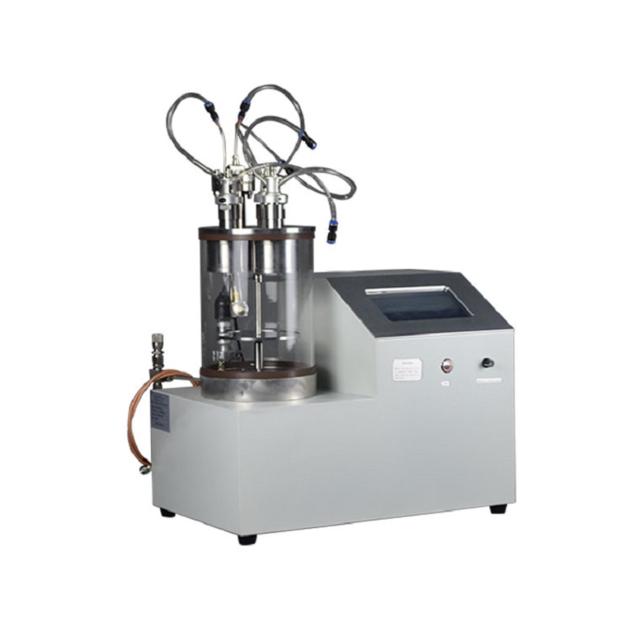

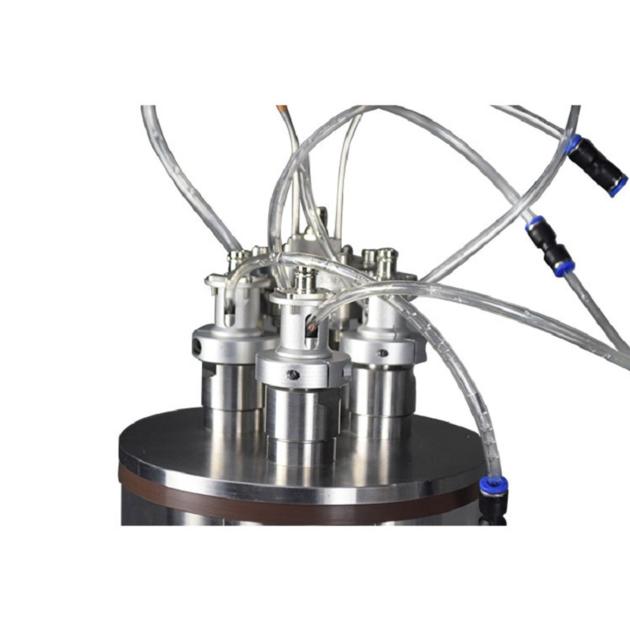

Three-head Plasma Sputtering Coater with Vacuum Pump
Introduction
CY-PSP180G-3TA is a compact three-head rotary plasma sputtering coater with a touch screen digital controller. Standard plasma sputtering target is 2 inches, for single-layer or multi-layer film. 150W DC power supply can be used for metal sputter coating, such as gold, silver and copper. Besides, this coater is equipped with a gas connection for protective gas.
Application:
Used for metal sputter coating, such as gold, silver and copper
DC power supply
Quantity: 1
Application: for metal sputter coating, such as gold, silver and copper
Max. output power: 150W
Film thickness monitor
Power supply requirement: DC 5V(¯10%) Max. 400mA
Resolution: +/- 0.03Hz (5-6MHz), 0.0136Ã/ measuring (Aluminum)
Accuracy: +-/05% thickness +1
Measurement speed: 100mS-1S adjustable
Measurement range: 500 000Ã (Aluminum)
Standard sensor crystal: 6MHz
Communication interface: RS-232/485
Display precision: 8-digit LED display
Maximum dimension: 90 * 50 * 18mm (L* W * H)
Working temperature range: 0-50 ®C
Humidity range: 5%-85%RH, no condensed water
|
