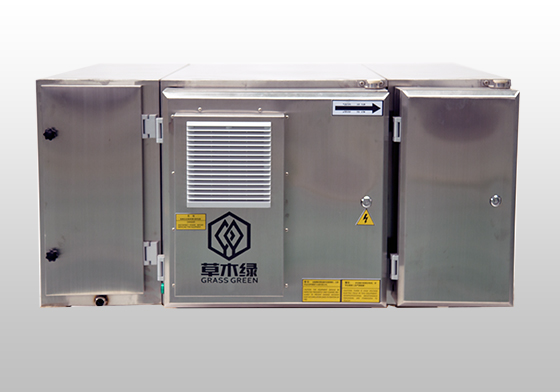

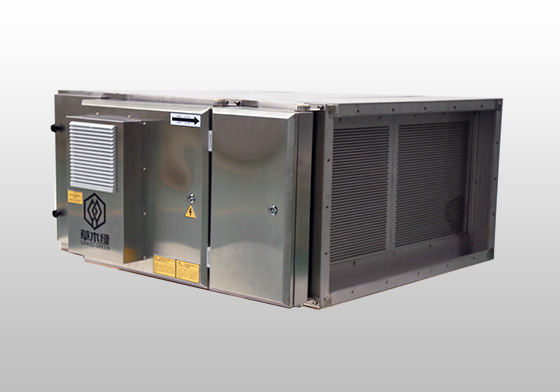

Commercial Kitchen Exhaust Cleaning Equipment
| Price: | US$ 1200 |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | TT |
| Port of Export: | Qingdao Port |
Product Details
| Model No.: | ESC | Brand Name: | grassgreen |
|---|
| Certification: | CE |
|---|---|
| Specification: |
Product introduction Grass Green ESC-S type electrostatic fume purifier is a new type of all stainless steel fume treatment equipment designed and launched for landmark buildings such as large shopping malls, commercial complexes, gourmet cities, and medium and large-scale catering fume purification projects. The purification efficiency of this equipment is more than 95%, which can meet the stringent fire protection and environmental protection requirements in Beijing, Shanghai, Guangdong and other places. IP55 protection level, the whole machine has a long service life and a 2-year warranty. Product configuration: The standard dust removal components are configured as: mechanical equalizing net, 201 stainless steel electrostatic module, high voltage generator, oil leakage hole Electrical components: Schneider; Working voltage: 220VAC 50/60HZ Use temperature: ≤50℃ Maintenance space: 1000mm |
Packaging & Delivery
| Packaging: | plywood case |
|---|---|
| Delivery/Lead Time: | within 20 days |
| Production Capacity: | 200 sets within 25 days |
Product Description
Optional: Can be equipped with activated carbon purification (25 pieces/box)
Can be equipped with UV photolysis purification (4 pieces/group)
Technical principle:
The plate electric field oil fume purifier mainly uses an ionization separation structure similar to the superposition of flat plates. The plate electric field is divided into an ionization area and an adsorption area, and the devices are separated from each other. The oil fume exhaust gas first passes through the ionization area, and the ionization area emits a voltage of 12KV for ionization. It becomes a positively charged particle and enters the adsorption area, and the adsorption area emits a voltage of 6KV. The positively charged oil fume particles are adsorbed in the adsorption area due to the action of the electric field force to achieve the purification effect.
Technical features:
The box is made of 201 stainless steel, IP55 protection level, and the whole machine has a long service life;
The movement is made of 201 stainless steel, which has better discharge performance, high corrosion resistance, no need to replace the filter element, and low operation and maintenance costs;
The electric field structure enables the electrostatic field to reach the maximum average electric field intensity uniformly, greatly increases the electric field purification area, makes the electric field combine with the oil fume particles for a longer time, and has a higher oil fume removal efficiency.
Modular design, good electric field rigidity, easy to disassemble, not easy to deform, easy to clean and maintain;
When the equipment is running, the noise is low, no need for special personnel to manage, only need to do regular inspection and maintenance, low energy consumption, low operating cost.
Warranty 2 years.
Application range:
Coffee roaster machine use, Social restaurant, comprehensive catering, fast food, canteen, catering distribution, central kitchen, food processing and manufacturing, snack fast food, local cuisine, hot pot, barbecue and barbecue, buffet, exotic cuisine, institution canteen, university restaurant .
|
