Comercial Beer Brewing Equipment brewery equipment industria beer plant

1 malt milling system malt miller machine
grist case
Flex auger
2 Mash system Mash tank, lauter tank
Boiling tank, whirlpool tank
Cooking tank (Optional)
Hot water tank
Mash/wort/hot water pump Motors
Wort oxygenation device
Operation platform
Plate heat exchanger
3 Fermenting system Beer fermenters
Bright beer tanks
Yeast adding tank
Accessories, such as sample valve, pressure gauge, safety valve and so on
4 Cooling system Ice water tank
Cold water tank
Refrigerating unit
Ice water pump
5 CIP cleaning system disinfection tank & alkali tank &cleaning pump etc.
6 Controller Control system: PLC automatic and semi-automatic, the elements brand include MCGS, Siemens and so on.
Product name: 3000L Brewery system
Applications: Micro brewery, Industrial brewery



1.Malt Milling Unit
Particle adjustable rolling crusher
Flexible or steel auger to directly lift the milled grain to mash tun

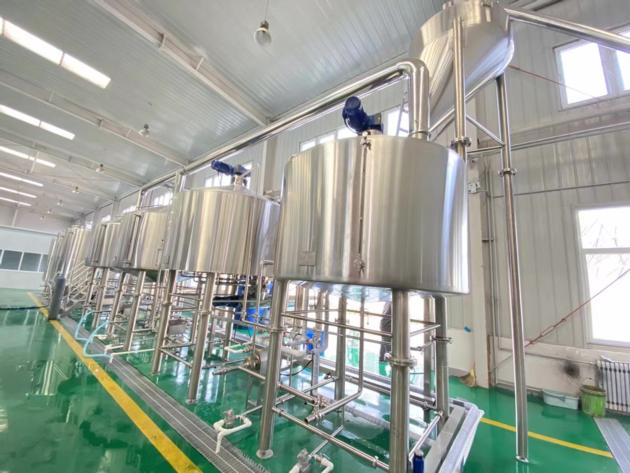

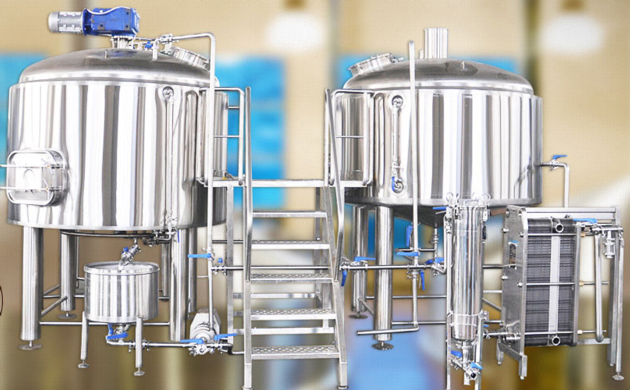

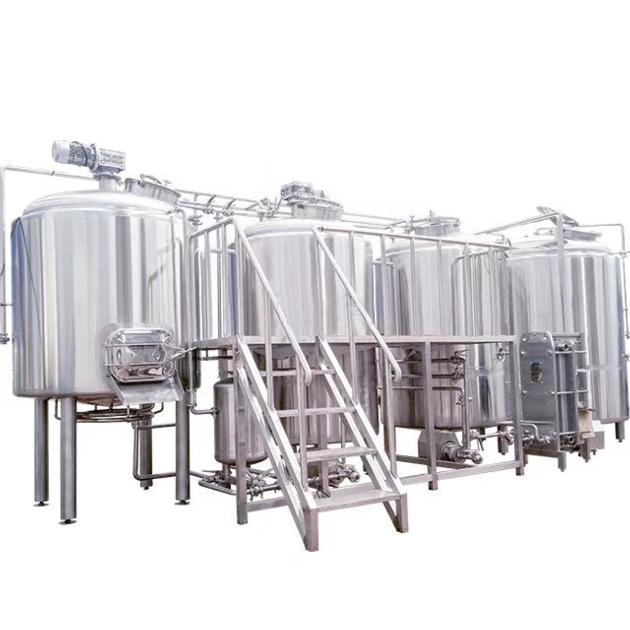

2.Mash system:
We can 4 vessel or 5 vessel brewhouse according to your requirement and brewing process.





Main Features:
1. 3000L brewhouse:

1.Heating method: steam,
2.Hot &cold water recycle for saving energy,
3.Automatic lifting agitator and raker system
3.Automatic agitator and raker system for maxing and spent grain .
4.Famous brand for pump and steam boiler.
5.Mash pipe has no dead corner for easy cleaning and brewing.
6.Continue production, 3-4batches per times.
7.Semi-Automatic or full automatic control system for optional.

* Good abrasion resistance material
Inner-Jacket(SUS304)thickness: 3.0mm
External-Jacket thickness: 2.0mm
Seal head thickness: 3.0mm
* High quality insulation effect
Polyurethane thickness: 80mm
* Beautiful weld and polish technology
All argon gas protection welding. Polishing precision up to Ra0.6³´µm.
* Powerful technology supporting
Providing drawing of every tank and drawing the layout of the whole project according with customer's workshop
* World's top brands' electronic components
For example, we use Siemens PLC and touch screen, Schneider button of circuit breaker, Airtac electromagnetic valves and other pneumatic parts, etc.
*Internal heating system to increase boiling intensity

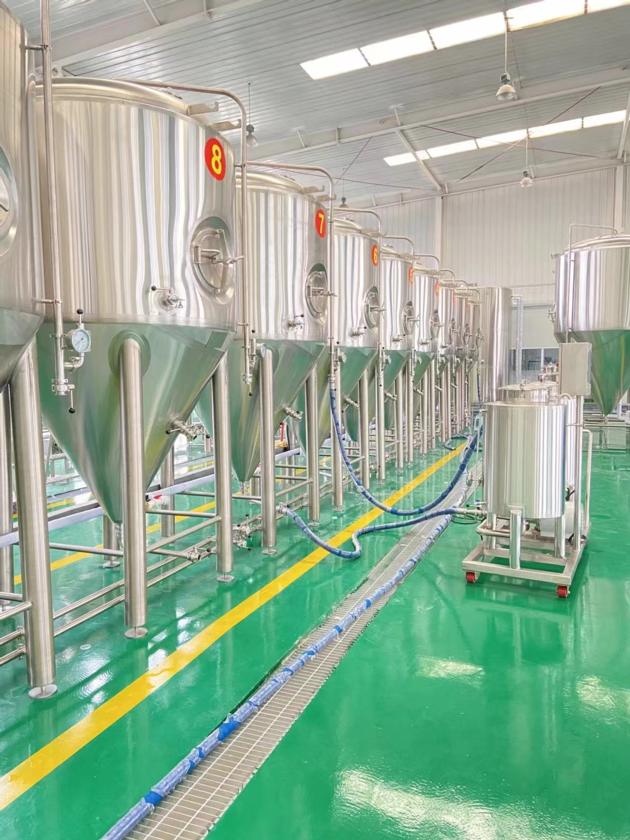

4.Fermentation system

Technical Characteristics:
All AISI-304 Stainless Steel Construction
Jacketed & Insulated
Dual Zone Dimple Cooling Jacket
Dish Top & 60® Conical Bottom
4 Stainless Steel Legs with Leveling Ports
Fermenter Includes:
Top Manway or Side Shadow less Manway
Racking Port with Tri-Clover Butterfly Valve
Discharge Port with Tri-Clover Butterfly Valve
2 Tri-Clover Outlets with Butterfly Valves
CIP Arm and Spray Ball
Sample Valve
Pressure Gauge
Safety Valve
Thermowell

Specifications:
Working Capacity: 300L, 6000L, 9000L
Inner Diameter: Customized
PU Insulation: 60-100mm
Outside Diameter: Customized
Thickness: Inner Shell: 3 mm, Dimple Jacket: 1.5 mm, Cladding: 2 mm

4.Cooling Unit
-Insulated glycol water tank and cold water tank
-Efficiency chillers or refrigerators with fryon to supply cooling energy
-Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger
-All pipes, fitting, insulation materials are included


8.CIP unit
-Material SS304, Thickness for tank 2mm
-Heating power for Alkali Tank 2KW
-Tank amount: 4pcs: Sterilization tank, Acid tank, Alkali liquor tank, and water tank.
-Separate control for CIP unit.



7.Controlling Unit
--PLC with touch screen panel and Industrial computer control system
-Electrical controlling cabinet with temperature, on-off controlling for brewhouse
-Electrical controlling cabinet with temperature, on-off controlling for fermenter automatic.
-Temperature controller, thermocouple, solenoid valves etc are included
