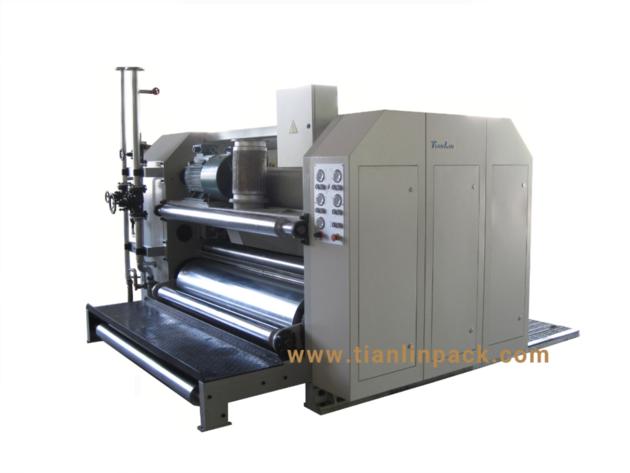

Combi Facer

Modular Fingerless Single Facer with interchangeable flute units allowing unlimited
numbers of flute changes in a few minutes by the machine operator.

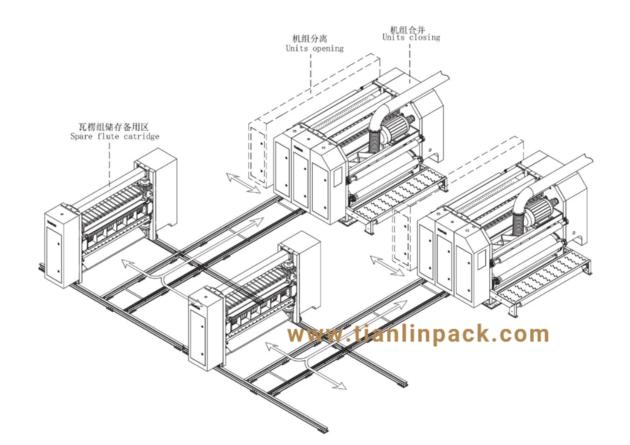

The COMBI FACER consists of 3 Modules:
A)Stationary Unit
B)Flute Unit
C)Glue Applicator Unit
The 3 modules are locked pneumatically.
Quick disconnect fittings are provided for steam, condensate and pneumatic connections.
Base rails include side tracking and parking rails for three flute units.

Significant technical features:
*Heavy duty construction for running at high speed without vibrations.
*Quick multi flute change system, flute unit complete with corrugating rolls and press roll.
*Unlimited number of profiles possible, modules not in production parked outside of the line, easy access for cleaning and maintenance.
*Prooen vacuum system for fingerless operation, simple to adjust, low maintenance, easy access.
* Standard designed corrugating rolls, thus affordable price for regrinding/replacement rolls.
*Integrated liner preheating cylinder.
*Profile change by one operator only in 10 -15 minutes (from run to run).
*Long-life lubrication for the cylinders, low maintenance required.
*Free standing operator desk with touch screen color monitor.
*Maximum speed 150m/min.
*Available width 1200mm – 2000mm
