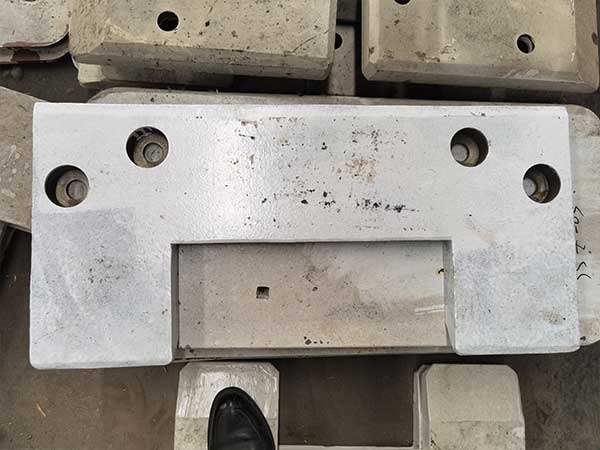

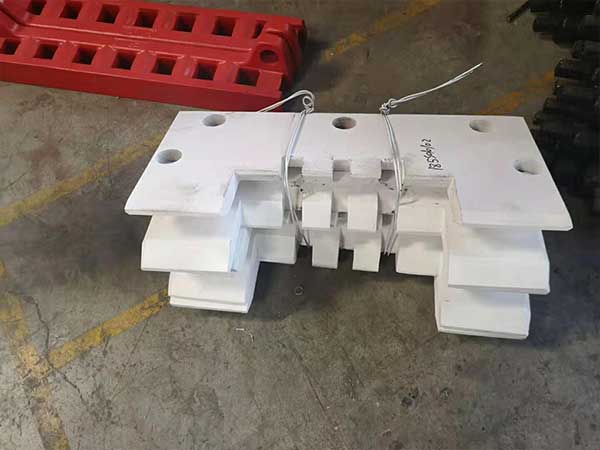

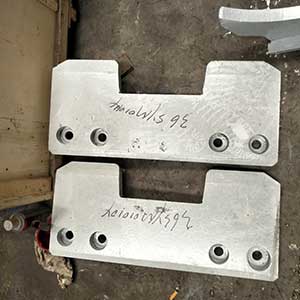

Coal Mining Guard Shaft Plate Used in Scraper Conveyor

The guard plate, also called tongue plate, is suitable for the scraper conveyer, which is located in the head part of the scraper conveyer and belongs to easy wear parts. It is used with the chain splitter. The use of the guard plate facilitates the disassembly of the chain splitter, shorens the maintenance time of the scraper conveyer and improves the utilization rate of the equipment.

According to the scraper model plate can be divided into: 630, 730, 800, 830, 880, 900, 1000, 1200 and so on. According to the different use position of the guard plate can be divided into: head guard plate, tail guard plate. According to the supporting main engine plant is divided into: Zhangjiakou coal machine, Shandong mining machine, Shanxi coal machine factory, Northwest Run cattle, Zheng coal machine and so on. According to the type of use can be divided into: scraper tongue plate assembly, transfer machine tongue plate assembly. Installation method of guard plate: the two ends of the plate are fixed with a chain dipper which is symmetrical and perpendicular to the tongue plate, and the chain dipper bolts are arranged symmetrically in the middle of the two chain dippers, and the outer side of the chain dipper is respectively provided with two fork sleeves which can be attached to the upper limit of the pin shaft on the head shell of the conveyor.

If you need to scraper conveyor guard plate, you are welcome to contact us in time.
