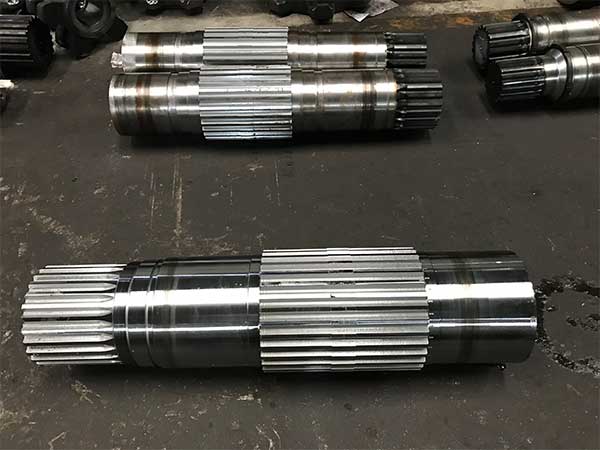

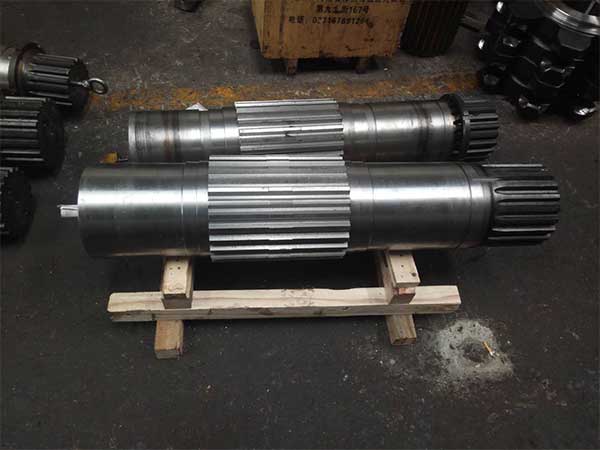

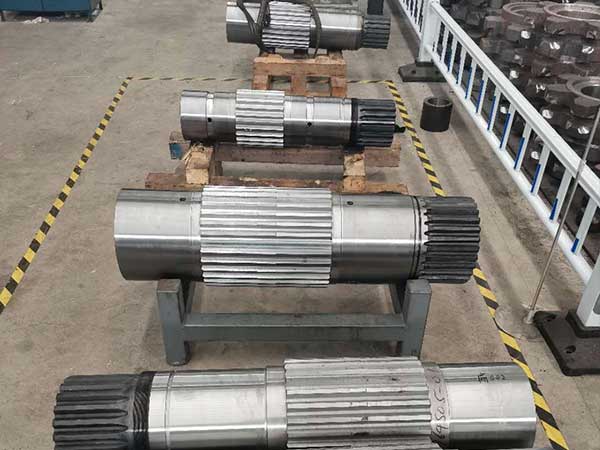

Coal Mining Forging Sprocket Shaft for Scraper Conveyors

One end of the sprocket shaft is an external spline, which is connected with the internal spline of the reducer output shaft. The shaft is placed on the two bearing pedestals, which are respectively placed in the left and right plate arc of the nose frame, with the pin facing outwards. The sprocket assembly is accurately positioned on the head frame by using the pressure block with positioning pin hole.

The sprocket shaft of the scraper conveyor belongs to the core accessories of the sprocket shaft set, which mainly affects the key to the stable operation of the sprocket shaft set drive system.

The processing process is as follows: blanking → forging blank model → heat treatment → finishing (lathe and milling) → milling spline teeth at both ends → quenching → shaping → assembly with other parts of sprocket → test bench operation → inspection → painting → packaging. Precision machining process using CNC machine tools, especially cutting tools, to improve the efficiency and quality of processing.

The main power of sprocket wheel comes from sprocket shaft. Henan Shuanzhi flagship product chain wheel shaft group, for each piece of accessories are carefully processed to meet customer needs, if you need to order, welcome to inquire.
