Clear Tempered Glass used for Railings

*More than 10 years manufacturer and supplier experience
*Quick delivery of 15 days.
*Australian Standard: AS/NZS 2208:1996-safety glazing matererials
*Safety strong packing and loading
*Option processing clear ,frosted ,heat soaked,heat strengthened

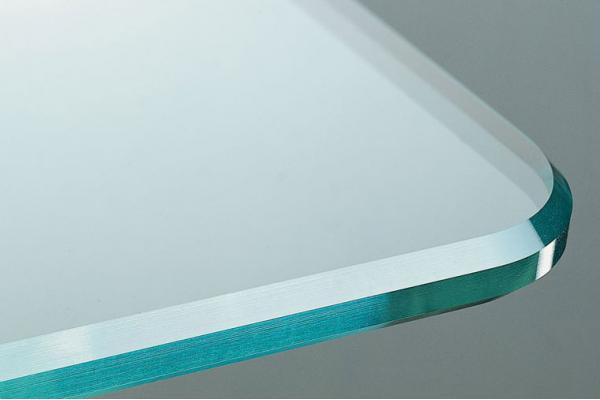

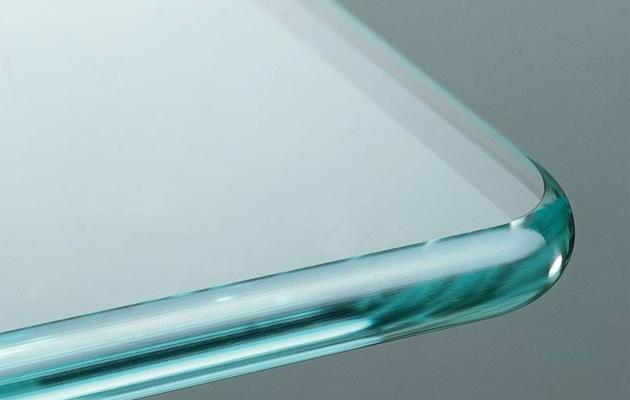

*Edging:Flat edge,grind edge,polished edge,beveled edge and others.

Tempered Glass/Toughened Glass

Tempered glass is made by heating float glass to its softening point ( 650-700¦C )and then suddenly cooling down to form compression in the surface layer of the glass, thus the mechanical strength is increased by 5 times.

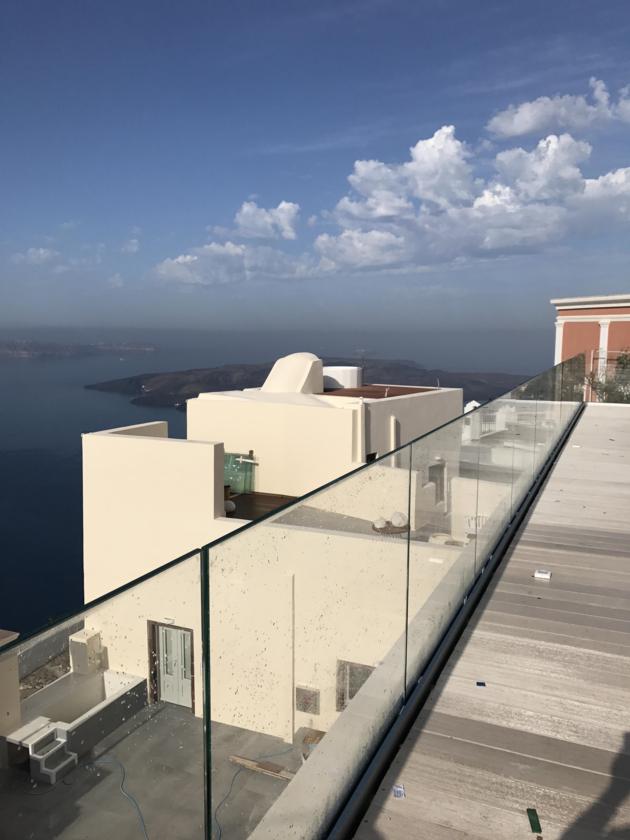

Clear Tempered Glass for Railings

Features:

1.5 times harder than ordinary float glass.
2. Tensile strength for float glass 40 MPa (N/mm2) ,tempered glass , 120-200 MPa (N/mm2)
3.Quality standard AS/NZS 2208:1996
4.It withstands abrupt temperature change of 220 Centigrade.
5.Once breakage occurs, the glass disintegrates into small cubical fragments, which are relatively harmless to human body.


Specification:

Flat Tempered Glass

MIN 90x90mm,Max 3660x2140mm

Thickenss 4mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm


Bent/Curved Tempered Glass

Max.Size 2200x750(mm)
Min Size 400*300(mm)
Thickness 5-19(mm)
Min.benting Radius 370mm

Clear Tempered Glass for Railings

Applications:
1. External use of windows, doors, curtain wall, shopfronts, offices, houses, shops etc.
2. Interior glass screens, partitions, balustrades etc.
3. Shop display windows, showcases, display shelves etc.
4. Furniture, table-tops, picture frames etc.

Tempered Glass Equipments

1. Water jet machine ,cutting tolerance +-0.1mm
2.Screen Printing Equipment
3.Single Straight-line Glass Edging Machine
4.Double Straight-line Glass Edging Machine
5.Round Glass Edging Machine
6.Glass Drilling Machine
7.Glass Tempering Furnace
8.Glass cutting line

Packing detail:

1. Interlay paper between two sheets
2. Timber end caps
3. Iron/plastic belt for consolidation
4. Safety corner

Density 2.5g/cm©
Tensile Strength 120-200 MPa (N/mm2)
Compressive Strength 1000 N/mm 2
Yong's Module 73 Gpa
Coefficient of linear expansion 9 x 10 - 6 m/Mk
softening point 650-700¦C
Thickness 4mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm
Payment term (1) 30% deposit ,balance paid against the copy of B/L
payment term (2) 30% deposit ,balance will be L/C at sight
Delivery time 15 days after received the deposit
Packing End caps pakcing within stripe and paper
MOQ 1000 Square meter
Loading port Qingdao port
Australian Standard: AS/NZS 2208:1996-safety glazing matererials
