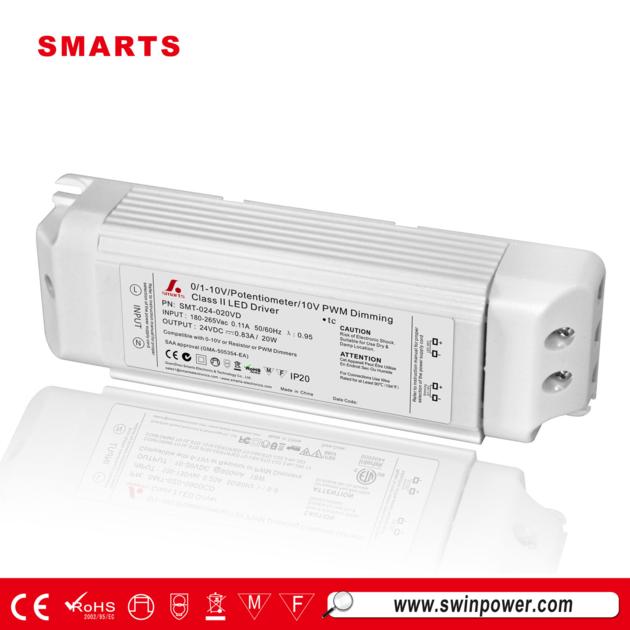

Class II power supply 24v 20w 0-10v dimmable led driver for SAA C-TICK CE ROHS certificate
| Price: | US$ 9.12 / Piece |
|---|---|
| Minimum Order: | 1pcs |
| Payment Terms: | T/T,Western Union,paypal,trade assurance |
| Port of Export: | XIAMEN |
Product Details
| Model No.: | SMT-024-020VD | Brand Name: | SMARTS |
|---|
| Certification: | ETL SAA CE ROHS |
|---|---|
| Specification: |
Model
SMT-024-020VD Output DC Voltage 24V Voltage Accuracy ¯0.5V Rated current 0~1.66A 0~0.83A Rated power 20W Input Voltage Range 180~265VAC Frequency Range 50~60HZ Power Factor ( Typ.) PF>0.8 Protection Short Circuit Protection type: Hiccup mode, recovers automatically after fault condition is removed Over voltage <280VAC Over temperature 100℃¯10℃ shut down o/p voltage, re-power on to recover Environment Working TEMP. -40~+50℃ Working Humidity 20~95%RH,non-condensing Storage TEM.,Humidity -40~+80℃,10~95%RH TEMP.coefficient ¯0.03%/℃(0~50℃) Vibration 10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes Safety&EMC Safety standards EN61347-1 EN61347-2-13 Withstand voltage I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC Isolation resistance I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH EMC EMISSION Compliance toEN55015,EN61000-3-2 (>50%load EMC IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry level Others Weight 0.16Kg Size 140*45*28mm(L*W*H) packing 324*298*188/50pcs /CTN Notes 1. All parameters NOT specially mentioned are measured at 110V,220VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |
Packaging & Delivery
| Packaging: | inner box-white box + outer carton- standard exporting carton packing |
|---|---|
| Delivery/Lead Time: | 7 working days for sample order,12 working days for 500pcs. |
| Production Capacity: |
Product Description
What Service we can supply?
1. We are CE ETL FCC ROHS audited LED drivers/power supplies enterprise in China.
2. Alibaba assessed 2 years Gold Supplier and more than 10 years LED industrial experience.
it will guarantee your order 100% safe.
3. Price is negotiable if you have large quantity demand
4. 100% QC inspection Before Shipping
5. Best Quality & Best Service with Competitive price.
6. Shipping will be the most economical for you and freight cost is informed in advance for your consideration.
decision for the shipping terms will be made according to your requirements
7. Samples will be ready within 7 working days.
8. We have our engineer team, if you have any question about your LED applications, let us know freely,
we will give you the best solution.
9. Our trade manager is online 12 hours. and we will reply your inquiry within 8 hours.
10. OEM design & OEM packing welcom.
|
