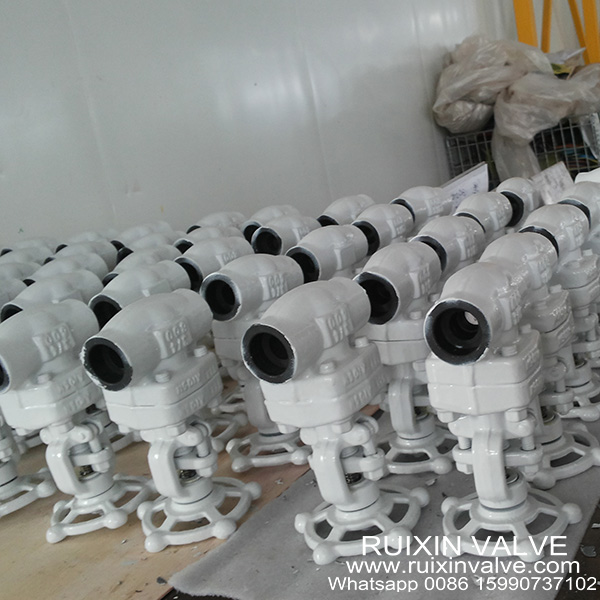

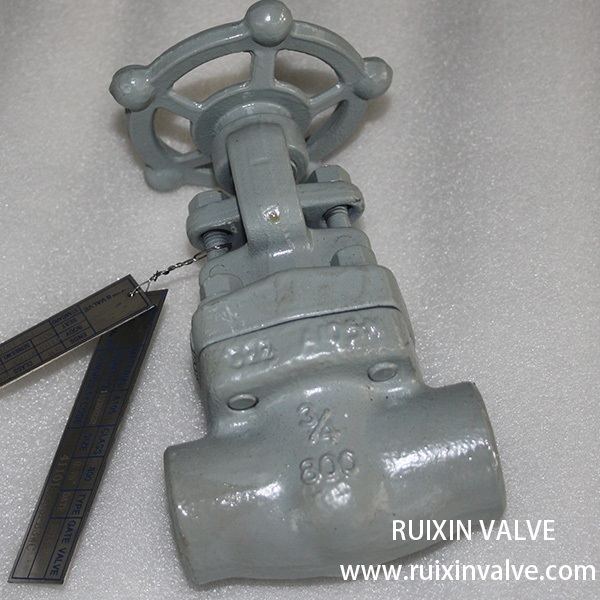

Class 800 API 602 Forged Steel A105 Gate Valve SW NPT
| Price: | US$ 10 / Piece |
|---|---|
| Minimum Order: | 1pc |
| Payment Terms: | 30% in advance by T/T,70% before shipment |
| Port of Export: | Ningbo |
Product Details
| Model No.: | RXV | Brand Name: | RXVAL |
|---|
| Certification: | CE,ISO |
|---|---|
| Specification: |
API 602 Gate Valve
Forged Steel Bolt Bonnet |
Packaging & Delivery
| Packaging: | Plywood |
|---|---|
| Delivery/Lead Time: | 20 days |
| Production Capacity: | Large |
Product Description
Size
1/2 inch ~ 2 inch
Pressure Rating
150LB ‐ 4500 LB
Standard Connections
NPT,BSP,SW,BW
Material
Body/ Bonnet: A105, A350 LF2 , A182 F11, F22, A182 F304, F316 , F316L. A182 F51. Monel, 20# Alloy, Etc
Seat: A105+13CR / A105+STELLITE 6,ETC
Stem: A182 F6(13CR) / A182 F304/F316
Trim: NO.1 ‐ NO.14
Features And Benefits
Bolted Bonnet
Full or Reduce Bore
Solid Wedge Disc, Integral Seat
Standard
Design & Manufactures: API 602
Face To Face :ANSI B16.10
Screwed Ends To ASME B1.20.1 , BW Ends To ANSI B16.25 ,SW Ends to ASME B16.11
Checking & Test : API 598
NACE MR-01-75
API 602 Gate Valve
Forged Steel
Bolt Bonnet
Forged Globe Valve
Forged Check Valve
Forged Flanged RF Gate Valve
Forged Flanged RF Globe Valve
Forged Flanged RF Check Valve
|
