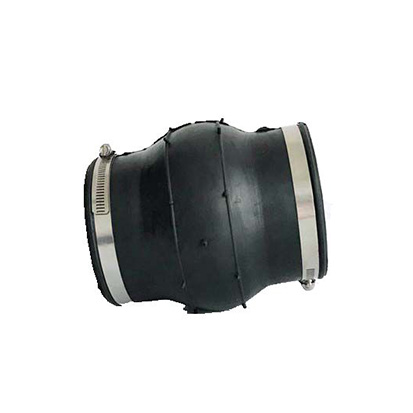

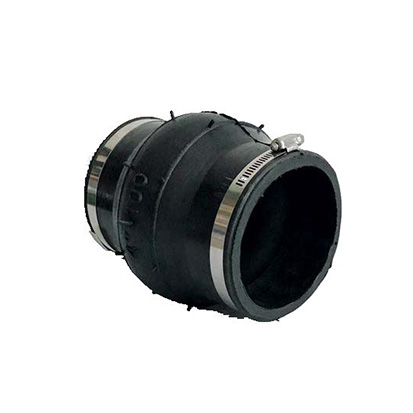

Clamp Flexible Rubber Joint

Clamp Flexible Rubber Joint
Clamped Rubber Joint
Rubber Joint
1. Oil resistance Flexible Rubber Joint can greatly reduce pipeline system vibration and noise, can solve the problem of joint displacement axial expansion, etc.
2. According to different materials, flexible rubber joint can be made into many kinds: acid resistance, alkali resistance, corrosive resistance, oil resistance, heat resistance, adapt to many mediums and different environment.
3. Material is polar rubber, good sealing, light weight, easy installation, long service life, avoid contacting with sharp metal device.
4. If use overhead, can match with elastic support, when installation, bolt with diagonal method to tighten up.
5. If pipeline pressure is high, use bolt connect the flange both ends.
6. Flange standard: ANSI, JIS, BS, DIN, GB, ect
Item No. Parts Name Parts Material
1 Hoop Q235 304 316L
2 Outler layer glue IIR, CR, EPDM, NR, NBR
3 Skeleton layer polyester cord
4 Inner layer glue IIR, CR, EPDM, NR, NBR
MAIN DATA
Nominal Diameter(DN) Length L Axial Elongation Axial Compression The radial displacement Deflexion angle
mm inch mm
50 2 180 7 10 10 15º
65 2½ 180 7 13 11 15º
80 3 180 8 15 12 15º
100 4 180 10 19 13 15º
125 5 180 12 19 13 15º
150 6 180 12 20 14 15º
200 8 200 16 25 22 15º
250 10 200 16 25 22 15º
300 12 200 16 25 22 15º
350 14 200 16 25 22 15º
400 16 200 16 25 22 15º
450 18 200 16 25 22 15º
500 20 200 16 25 22 15º
600 24 200 16 25 22 15º
700 28 200 16 25 22 15º
800 32 200 16 25 22 15º
900 36 200 16 25 22 15º
1000 40 200 18 25 22 15º
1200 48 200 18 25 24 15º
1400 56 200 20 26 24 15º
1600 64 200 25 26 26 15º
1800 72 200 20 26 26 15º
2000 80 200 20 26 26 15º
