China HSHCL bridge segment cast in situ construction travelling cantilever formwork
| Price: | US$ 50000 |
|---|---|
| Minimum Order: | 1 Set/Sets |
| Payment Terms: | L/C,T/T,L/C+T/T |
| Port of Export: | Qingdao, Tianjin, Shanghai Port, China |
Product Details
| Model No.: | FT | Brand Name: | Shenghua Heavy Crane Group |
|---|
| Certification: | CE GOST ISO SGS |
|---|---|
| Specification: |
Feature: Bridge Crane
Condition: New Segment Length: 3.5m ~ 7.0m Deck Width: 5m ~ 35m Bridge Curvature Radius: 100m-unlimited Formwork Material: Metal Sheet or Plywood Sheet Shape of Bridge Section: Any shape Application: bridges,viaducts,Interchange,suspension bridge,cable-stayed bridge Rated Loading Capacity: 100 ton~480 ton Rated Lifting Moment: 1000KN~4800KN Max. Lifting Load: 480 ton Max. Lifting Height: 5m Span: 20m-70m Place of Origin: Henan, China (Mainland) After-sales Service Provided: Engineers available to service machinery overseas Launching Mechanism: Hydraulic Maximum longitudinal slope: ≤7% Bridge Type: Balance Cantilever Box Girder or Cable Stay |
Packaging & Delivery
| Packaging: | Hydraulic parts and electrical equipment are package by high quality plywood crates. |
|---|---|
| Delivery/Lead Time: | Shipped in 40 days after prepayment |
| Production Capacity: | 100 Set/Sets per Month |
Product Description
China HSHCL Bridge segment cast in situ construction travelling cantilever formwork

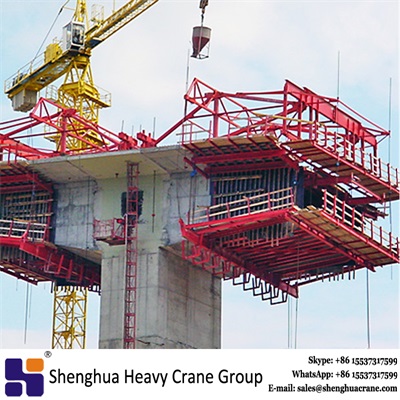

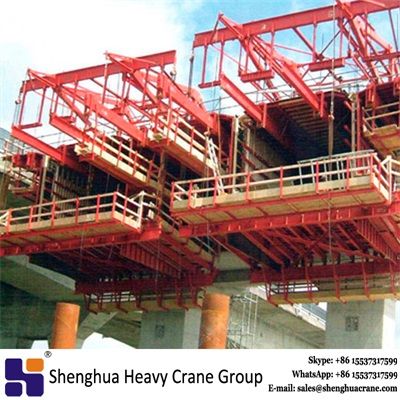

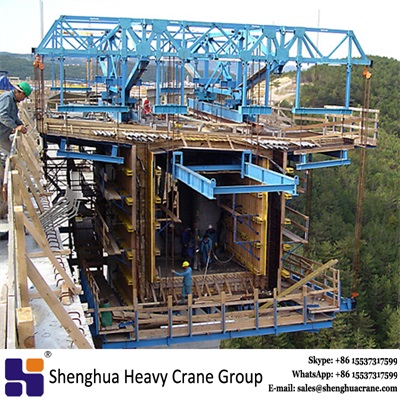

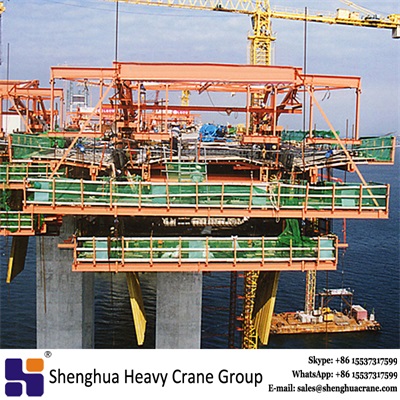

Form Traveler is used Balance Cantilever Construction Method. China HSHCL Bridge segment cast in situ construction travelling cantilever formwork is easier to be use compare to Under Slung Model. And it is easier to be modified for future usage. Our China HSHCL Bridge segment cast in situ construction travelling cantilever formwork are with good quality modular connection, designed for future modification and repeated usage for many years. We supply good quality metal formwork. We also provide plywood formwork system as it is a more economical solution.
Concreting Support, self-launching operation, level adjustments are all by means of hydraulic system. Erection of the China HSHCL Bridge segment cast in situ construction travelling cantilever formwork on the pier top can be as short as 1 week. All major parts join together by pin connection, which promises speedy erection and high accuracy design.
Packing & Delivery
Packing
1. Hydraulic parts are packed by high quality plywood crate to reduce distortion.
2. Structure are packed by plastic woven cloth to reduce abrasion during transporting.
Delivery
1. If the size of China HSHCL Bridge segment cast in situ construction travelling cantilever formwork are suitable for container ship, usually by container.
2. If the size is too big, usually by bulk ship or by container after disassembly.
3. Transport ways are based on reducing cost and keep the China HSHCL Bridge segment cast in situ construction travelling cantilever formwork performance.
Delivery time
Could be deliveried within 30 to 40 days after the receipt of deposit.
Transportation
Generally 35 days to 50 days to destination port.
|
