China Factory Cheap Price Forging Sprocket Shaft for Scraper Conveyor

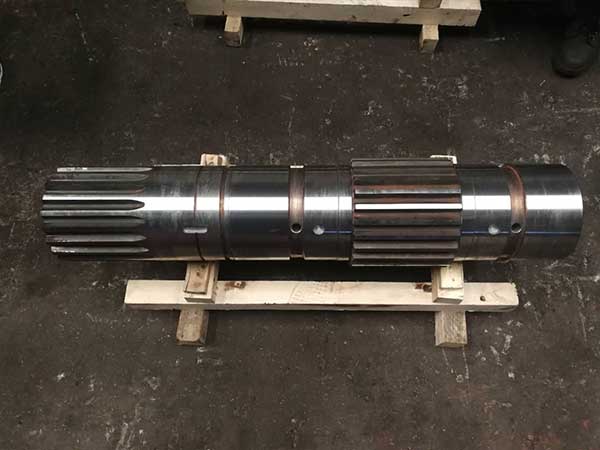

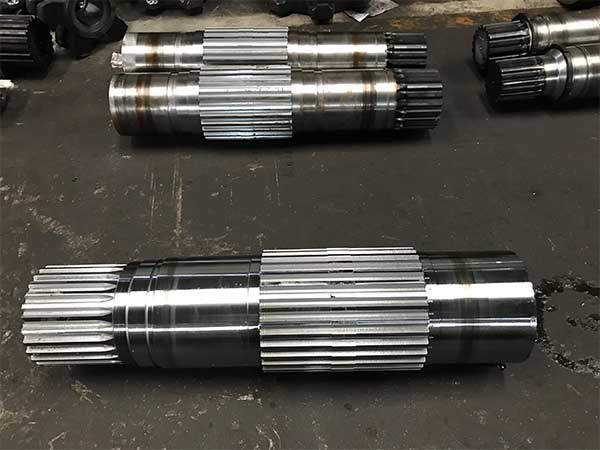

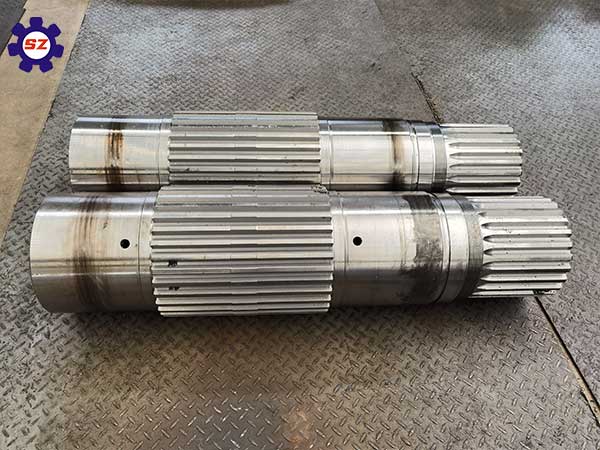

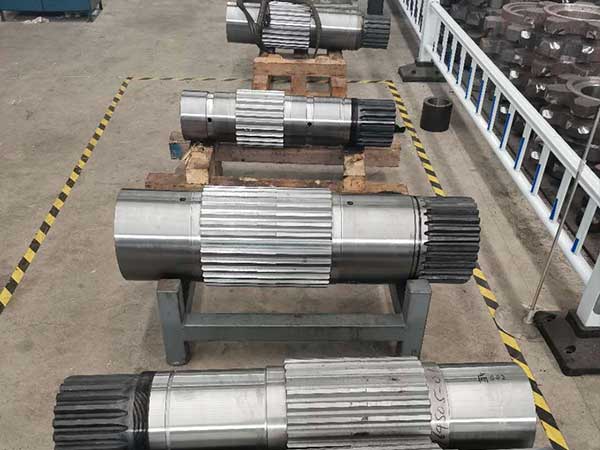

One end of the sprocket shaft is an external spline, which is connected with the internal spline of the reducer output shaft. The shaft is placed on the two bearing pedestals, which are respectively placed in the left and right plate arc of the nose frame, with the pin facing outwards. The sprocket assembly is accurately positioned on the head frame by using the pressure block with positioning pin hole.

Henan Shuangzhi, as a coal machine accessories manufacturer, has a mature, fixed and systematic processing process for sprocket shaft. The processing process is as follows: blanking → forging blank model → heat treatment → finishing (lathe and milling) → milling spline teeth at both ends → quenching → shaping → assembly with other parts of sprocket → test bench operation → inspection → painting → packaging.

Henan Shuanzhi precision machining process using CNC machine tools, especially the cutting of advanced equipment tools, constantly improve the processing efficiency and processing quality. The main power of sprocket wheel comes from sprocket shaft. In the nc machining of sprocket shaft, the chain socket is nc machined to improve the quality of sprocket shaft.

The sprocket shaft set of scraper conveyor and its accessories are the superior products of Henan Shuanzhi. Henan Shuanzhi starts from the product materials and technology, and constantly improves the product performance. The following models of scraper conveyor sprocket shaft are popular: 72/4LL-1 sprocket shaft, 124SJ0101-01 sprocket shaft, 123SA010102-01 sprocket shaft, 100/06LL-3 sprocket shaft, 1LZ38-1 sprocket shaft, more product models, you can contact us for verification.
