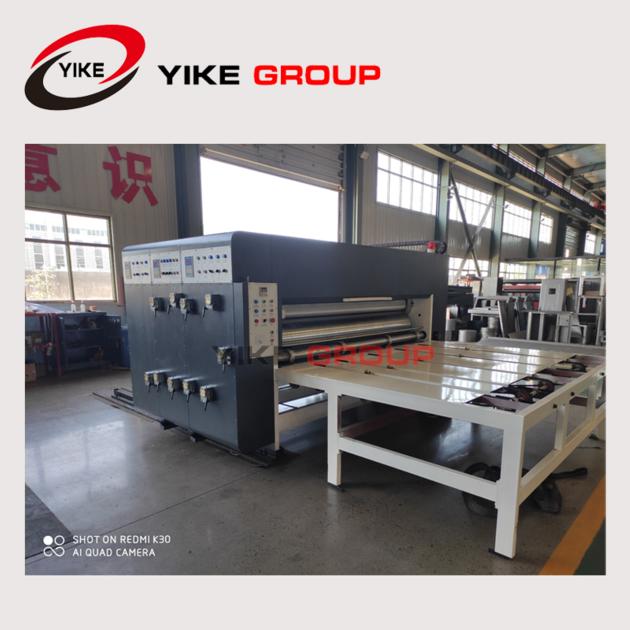

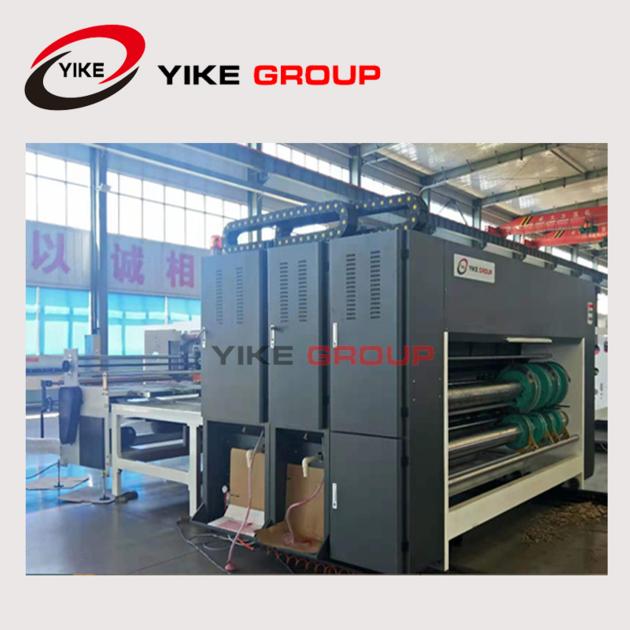

Chain Type Flexo Printer Slotter Die Cutter Machine

Product Description
Printer unit

● Gear enclosed spray lubrication system, keyless drive design, so that accurate long-term chromatic unchanged. High-speed Ink Printing Slotting Machine Manufacture.

● Frequency control system to control becomes easy and flexible. Each group of printing unit is equipped with jogging button for easy control and loaded rubber plate.

● Each printing unit can be electrical separation. Printing Slotting Machine.

● High-precision anilox roller, diameter 195mm. The textured density of anilox roller is 180-300 lines / inch, to ensure the printing effect is clear and beautiful.

● Ink supply system is pneumatic diaphragm pumps, high efficiency, Flexo Printing Slotting Machine saving ink. Automatic cycle supply. Cleaning with clean water can be.

● Automatic uniform system to keep the anilox roller quit. When the machine stop,the anilox roller and rubber roller could running independently for transmission ink and prevent the ink dry out.

● The rubber roller is use high quality hard wearing rubber,and with the middle of a relatively high high-precision grinding. Semi Automatic Carton Flexo Printing Slotting Machine.

● Phase institutions is 360-degree Electric adjustment, ergonomic design.



Slotter unit

● Gear enclosed spray lubrication system, keyless drive design, so that accurate long-term chromatic unchanged. High Speed Flexo Printing Slotting(stacking Unit)

● Phase institutions is 360-degree Electric adjustment, ergonomic design

● Four-blade sync adjustment for carton height.

● Serrated slotted cutter. Thickness: 7mm. Cutting angle blade width: 40mm.



Die Cutting Part

● Die cutting roller for the high quality steel materials,30mm thickness, balance correction, hard-chrome plating

● Wallboard for high-quality cast iron material,50mm thickness, and large processing center production.

● Soft-roll automatic grinding institutions to pouches repeat usage,grinding3-4times;

● Line speed automatic compensation to ensure that each batch of cardboard boxes full of die-size line;

● Use Imported Polyurethane soft rubber, ease of installation, can cut 12000000 times.;

● Mechanical soft roll about 40 mm lateral movement ,the pads wear uniform;

● 40cr material the use of grinding gears for 6,low noise long life;

● Die cutting roller cylinder automatic separation devices to reduce wear pouches.
