Ceramic core injection machine
| Price: | US$ 13333 |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | FOB |
| Port of Export: | TIANJIN |
Product Details
| Model No.: | Brand Name: | FUGE |
|---|
| Certification: | CE ISO |
|---|---|
| Specification: |
Ceramic Core Injector
FUGE ceramic core injection machine can helps you to build the most solid and precise ceramic core pieces. Our ceramic core injection machine owns 7 independent temperatures control zone. The ceramic core pattern out of our ceramic core injection machine has been tested by many turbine blades manufacturers. They highly prized our core injection machine for its precise and steady performance during work. Operation: Easy to operate in manual and automatic modes . Reasonable structure: C-Frame to save space . Convenience : HMI is to display the parameters of auto setting pressure . Multi-protection: It equipped with multi-protection for nozzle position , overpressure, dual temperature , pinch hand . Advanced Control System: Precisely control temperature,flow and pressure for injecting , to ensure the qualify of ceramic cores. Description Parameters Model FG-TXJ35T FG-TXJ50T Max. Clamp force 35T 50T Platen stroke 535mm 535mm Injection Pressure 0.35-8MPa（Adjustable） 0.35-8MPa（Adjustable） Single Shot Capacity 3.2L（Adjustable） 3.2L（Adjustable） Ceramic Reservoir Capacity 76L 76L Air pressure 0.6MPa(Dry and clean air ) 0.6MPa(Dry and clean air ) Electrical Standard 380V 50Hz 3ph 18KW 380V 50Hz 3ph 30KW Dimension （LXWXH） 1450mmX2224mmX2996mm 150mmX2355mmX3016mm |
Packaging & Delivery
| Packaging: | WOODEN CASE |
|---|---|
| Delivery/Lead Time: | 90 DAYS |
| Production Capacity: |
Product Description

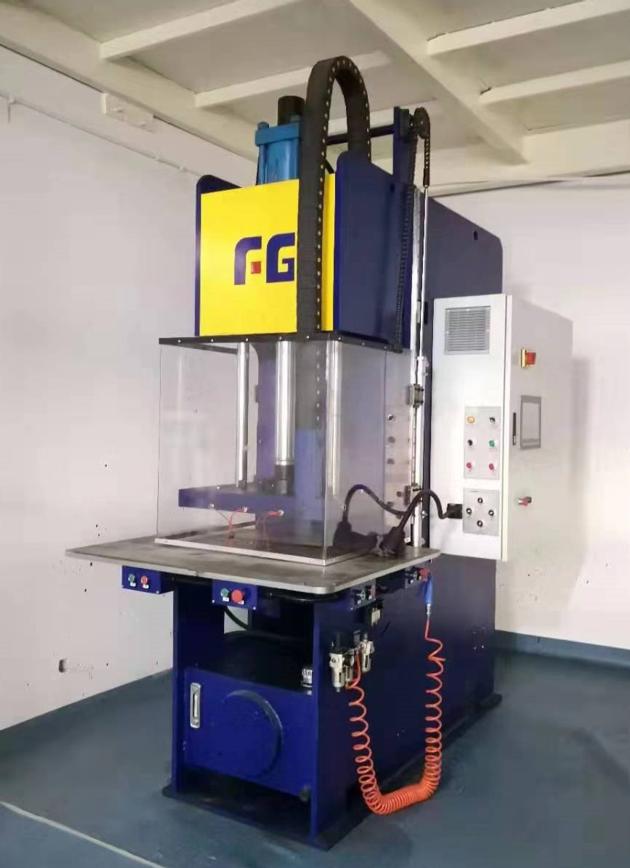

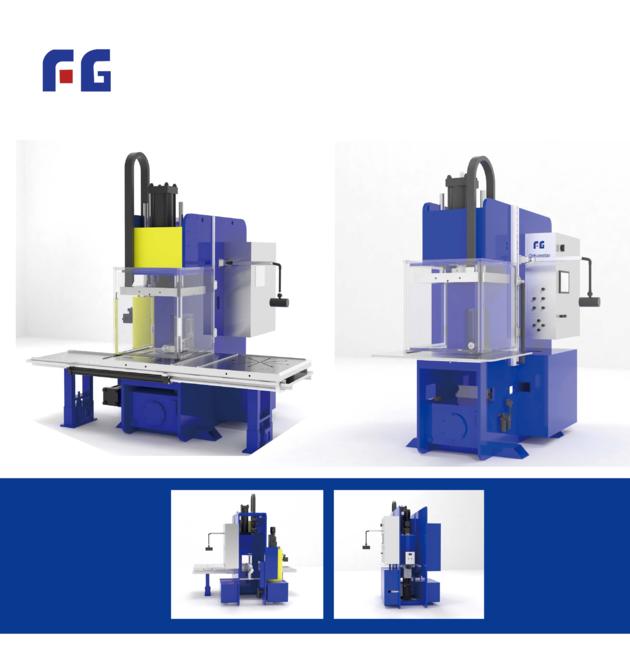

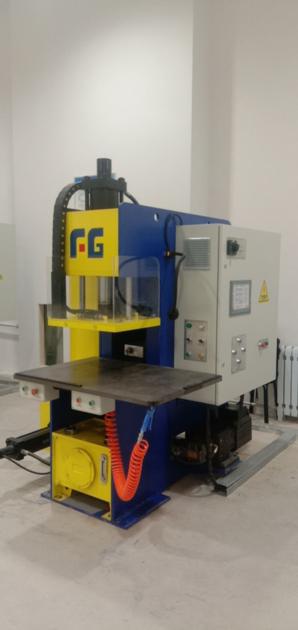

Ceramic Core Injector
FUGE ceramic core injection machine can helps you to build the most solid and precise ceramic core pieces. Our ceramic core injection machine owns 7 independent temperatures control zone. The ceramic core pattern out of our ceramic core injection machine has been tested by many turbine blades manufacturers. They highly prized our core injection machine for its precise and steady performance during work.
Operation: Easy to operate in manual and automatic modes .
Reasonable structure: C-Frame to save space .
Convenience : HMI is to display the parameters of auto setting pressure .
Multi-protection: It equipped with multi-protection for nozzle position , overpressure, dual temperature , pinch hand .
Advanced Control System: Precisely control temperature,flow and pressure for injecting , to ensure the qualify of ceramic cores.
Description Parameters
Model FG-TXJ35T FG-TXJ50T
Max. Clamp force 35T 50T
Platen stroke 535mm 535mm
Injection Pressure 0.35-8MPa（Adjustable） 0.35-8MPa（Adjustable）
Single Shot Capacity 3.2L（Adjustable） 3.2L（Adjustable）
Ceramic Reservoir Capacity 76L 76L
Air pressure 0.6MPa(Dry and clean air ) 0.6MPa(Dry and clean air )
Electrical Standard 380V 50Hz 3ph 18KW 380V 50Hz 3ph 30KW
Dimension （LXWXH） 1450mmX2224mmX2996mm 150mmX2355mmX3016mm
|
