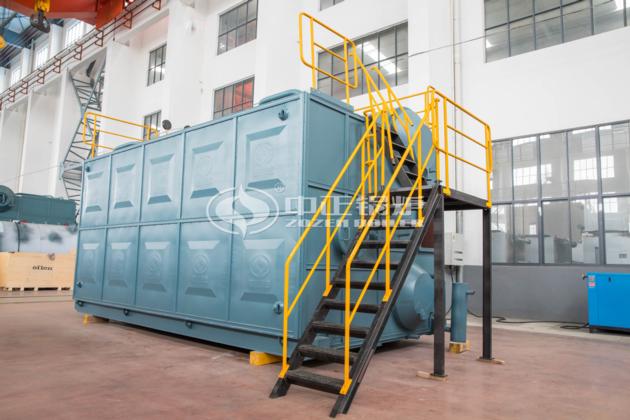

Central Heating Gas oil commercial hot water boiler with Factory Price
| Price: | US$ 5000 / Set |
|---|---|
| Minimum Order: | |
| Payment Terms: | TT |
| Port of Export: | SHANGHAI |
Product Details
| Model No.: | Brand Name: | zozen |
|---|
| Certification: | |
|---|---|
| Specification: |
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Printing Shops, Construction works , Energy & Mining, Advertising Company Condition: New Type: Natural Circulation Usage: Industrial Structure: Water Tube Pressure: Low Pressure Style: Horizontal Fuel: Oil/Gas Place of Origin: Jiangsu, China Brand Name: zozen Output: Hot Water Dimension(L*W*H): Depends Weight: 5~50ton Certification: ASME/CE/ISO Warranty: 1 Year After-sales Service Provided: Engineers available to service machinery overseas Warranty period: 1 Year Design fuel: Nature gas, coke oven gas, blast furnace gas, Working pressure: 1.0-1.6 Mpa Product thermal capacity: 7-70 MW Outlet temperature: 194-225 ®C Operation: Easy Advantages: Top 1 A-Class Boiler Efficiency: 95%-99% Application: Heat suppling, chemical,brewery, rubber, hospital Type of boiler: gas-fired(oil-fired) hot water boiler |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | |
| Production Capacity: |
Product Description
SZS series boiler is designed with longitudinal double drums and " D " type chamber structure. The furnace is on the right and convection tube bank is on the left. The body is fixed on the basement by middle and both end flexible supports and make the boiler expand horizontally sideways. Around the furnace is membrane wall. Furnace and tube bundle are totally separated by the membrane wall at the left side of the furnace. The back part of convection tube bank is sparse shift structure, front part is aligned structure. Smoke from furnace outlet enters re-burning chamber, convection tube bank area, and then from left front part enters spiral fin coil economizer and condenser, and finally is discharged to atmosphere through chimney.
|
