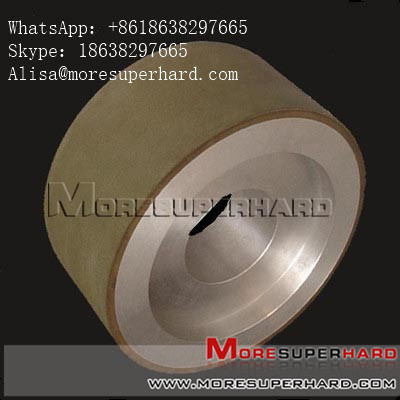

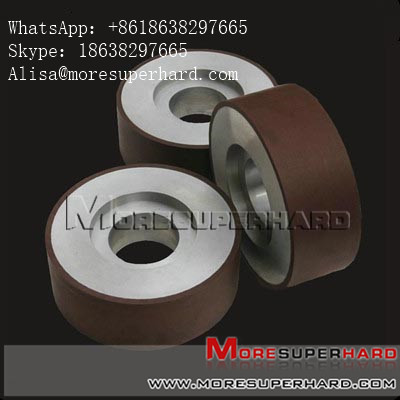

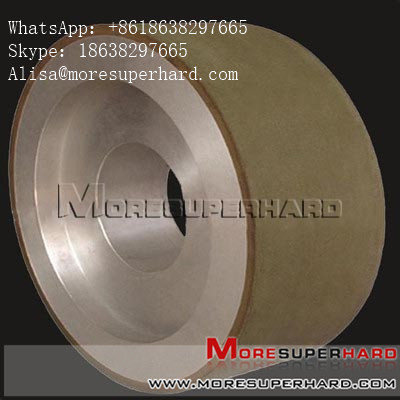

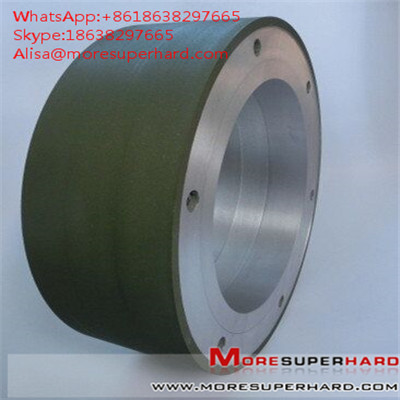

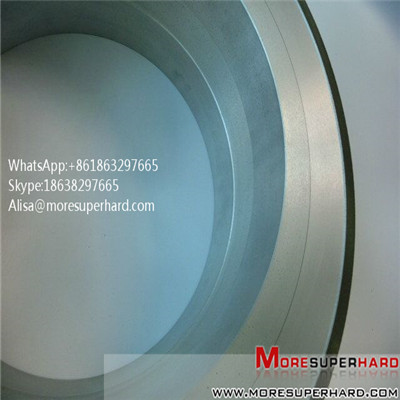

Centerless Diamond Grinding Wheel [email protected]

Application: cemented carbide bars, Polycrystallin
Introduction to resin diamond grinding wheel
The resin bond diamond wheels are mainly used for grinding tungsten carbide and non-metal materials. Various kinds of dimensions and shapes are available, such as flat shapes, cup shapes and dish shapes, etc.

Feature
1:Name:Centerless Diamond Grinding Wheel
2:Type Code: 1A1, 6A1, 9A1
3:Material: Diamond, CBN
5:Line speed: 35~80 (M/S)
6:Grit: 80#~5000# (D251-D1)
7:Application Industry: Jewelry, Automobile, Aerospace, Oil drilling, Coal mining, Metal processing
8:Certification: ISO 9001:2008
9:Diamond grit: #100, #150, #200, #300, #400, or upon your request
10:Type: straight wheel, bowl-shaped wheel, cup-shaped wheel, dish- shaped wheel
tapered one side or two sides and so on

Product Feature
1:Easy to dress
2:Good self-sharpening
3:High finishing of work piece
4:Specially for precision grinding and polishing

Resin bond diamond grinding wheel model:
1: parallel grinding wheel
2: parallel arc grinding wheel
3: double-sided concave grinding wheel
4: double bevelled grinding wheel
5: bowl wheel


Application of centerless diamond grinding wheels:
rough, semi-finish and finish grinding of cemented carbide bars , PDC Cutter (Polycrystalline Diamond Compacts), tungsten carbide, ceramics, magnetic material, stainless steel bar, PCD and PCBN composites.
Features of centerless diamond grinding wheels:
1：high roundness
2：good surface finish
3:superior grinding action
4:bulk removing of materials
5:competitive price
6: long life .


Specification of centerless grinding wheels:
Model D (mm) H (mm) T (mm) X (mm)
1A1
6A1
9A1 200 75 50 5, 10
305 120 150 5, 10
350 127 125 5, 10
400 203 150 5, 10
455 228.6 205 5, 10
500 127 125, 150, 200 5, 10
600 305 200, 400, 600 10
other specification can be made according to customers requirements
Centerless wheels for the centerless grinding machines:
Centreless (centerless) grinding can perform excellent roundness of the work piece.The workpiece is supported by a work rest blade and set between a rubber regulating wheel that rotates the workpiece and a rotating grinding wheel.The mainly centerless grinding machines: Koyo, Crystec, Dedtru, Landis , Okuma, Paragon, Royal Master, Unison, WMV and so on.


Why choose our grinding wheel
Our product’s advantages:
1.High grinding efficiency
2.Wonderful edge quality
3.Long service life
4.High polishing efficiency
5.Large Exports
6.Considerable after-sell service
7.Amazing performance
8.Various types and sizes available
9.Direct Factory Manufacturer
10.Backing/substrate material: Aluminum
11.Abrasive layer: diamond
12.Bond: vitrified
13.Excellent cutting edges
14.Reduced cycle times
15.Custom Engineered
