Cement Jolting Table

Cement Jolting Table

PRODUCT CODE

PRS-CM0090 Jolting Table, EN, 220-240 V 50 Hz, (60 Hz version is available upon request

PRS-CM0091 Jolting Table with Soundproof Safety Cabinet, EN, 220-240 V 50 Hz

PRS-CM0092 Three Gang Mould for 40x40x160 mm

PRS-CM0093 Feed Hopper 40x40x160 mm for PRS-CM0092

PRS-CM0094 Short and Long Spreaders and Straightedge, for PRS-CM0092

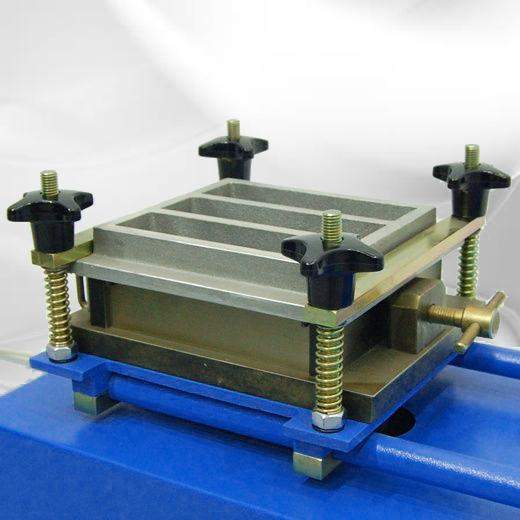

Jolting Table is used for compacting of cement specimens in 40x40x160 mm mould and consists of mould table seated on a rotating cam driven at 60 r.p.m. The falling height is 15 mm conforming to EN 196-1.

The machine is equipped with a counter which provides automatic shut off at end of preset drop numbers.

Weight and dimensions of the jolting table fully comply with the requirements of EN 196-1 standard.

When used with PRS-CM0092 Three Gang Mould and PRS-CM0093 Feed Hopper, the total weight of the moving part is 20 kg ¯ 0.5 kg.

Without PRS-CM0092 and PRS-CM0093 the weight of the moving parts is 6.85 kg. Rapid mould lock and release system allows easy and quick operation.

The supporting frame of the machine has been designed to ensure precise dimensions, table flatness, correct centering of the three gang mould on the table.

The motor and gearbox assembly is enclosed in a protective housing, which promotes user safety (the moving parts are inaccessible) and long life for the gearbox.

The standard model can be supplied with a safety/noise reduction cabinet. The cabinet is lined internally with soundproofing material to reduce sound level conforming to CE directives.
PRS-CM0093 Feed Hopper is used for filling PRS-CM0092 Three Gang Moulds placed on the Jolting Table.

PRS-CM0092 Three Gang Mould, PRS-CM0093 Feed Hopper, PRS-CM0094 Short and Long Spreaders and Straightedge should be ordered separately.
