Cement Ball Mill,Cement Mill,Mill Cement Price
| Price: | US$ 13200 / Set |
|---|---|
| Minimum Order: | |
| Payment Terms: | L/C,T/T |
| Port of Export: |
Product Details
| Model No.: | Brand Name: |
|---|
| Certification: | |
|---|---|
| Specification: |
Shell rotation speed(r/min) Ball load(t) Feeding size(mm) Discharging size(mm) Capacity Motor power(kw) Weight(t)
(t/h) Ø900*1800 36-38 1.5 <=20 0.075-0.89 0.65-2 18.5 4.6 Ø900*3000 36 2.7 <=20 0.075-0.89 1.1-3.5 22 5.6 Ø1200*2400 36 3 <=25 0.075-0.6 1.5-4.8 30 12 Ø1200*3000 36 3.5 <=25 0.074-0.4 1.6-5 37 12.8 Ø1200*4500 32.4 5 <=25 0.074-0.4 1.6-5.8 55 13.8 Ø1500*3000 29.7 7.5 <=25 0.074-0.4 2-5 75 15.6 Ø1500*4500 27 11 <=25 0.074-0.4 3-6 110 21 Ø1500*5700 28 12 <=25 0.074-0.4 3.5-6 130 24.7 Ø1830*3000 25.4 11 <=25 0.074-0.4 4-10 130 28 Ø1830*4500 25.4 15 <=25 0.074-0.4 4.5-12 155 32 Ø1830*6400 24.1 21 <=25 0.074-0.4 6.5-15 210 34 Ø1830*7000 24.1 23 <=25 0.074-0.4 7.5-17 245 36 Ø2100*3000 23.7 15 <=25 0.074-0.4 6.5-36 155 34 Ø2100*4500 23.7 24 <=25 0.074-0.4 8-43 245 42 Ø2100*7000 23.7 26 <=25 0.074-0.4 8-48 280 50 Ø2200*4500 21.5 27 <=25 0.074-0.4 9-45 280 48.5 Ø2200*6500 21.7 35 <=25 0.074-0.4 14-26 380 52.8 Ø2200*7000 21.7 35 <=25 0.074-0.4 15-28 380 54 Ø2200*7500 21.7 35 <=25 0.074-0.4 15-30 380 56 Ø2400*3000 21 23 <=25 0.074-0.4 7-50 245 54 Ø2400*4500 21 30 <=25 0.074-0.4 8.5-60 320 65 Ø2700*4000 20.7 40 <=25 0.074-0.4 12-80 400 94 Ø2700*4500 20.7 48 <=25 0.074-0.4 12-90 430 102 Ø3200*4500 18 65 <=25 0.074-0.4 ----- 800 137 |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | |
| Production Capacity: |
Product Description
Application of cement Ball Mill:

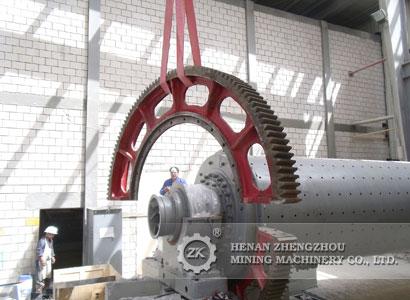

Cement ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials.
Cement Ball Mill -Product advantages
1.Energy-saving grate ball mill is easy to start and save energy up to 20-30%
2.Energy-saving grate ball mill adopts groove-type circular lining plate that is instrumental in increasing contact areas of iron balls and ores.
|
