Garri is an important cassava deep processing product, the mainly used garri making machines include: Cassava cleaning machine, cassava washing machine, peeling machine, cassava grinding machine, dehydrating machine and garri frying machine. Here is the detail introduction of these machine.

Cassava value addition machines cassava garri production line


Garri processing line
Proces flow: cleaning - washing - peeling - grinding - fermentation - dewatering - frying - sieving - finished garri

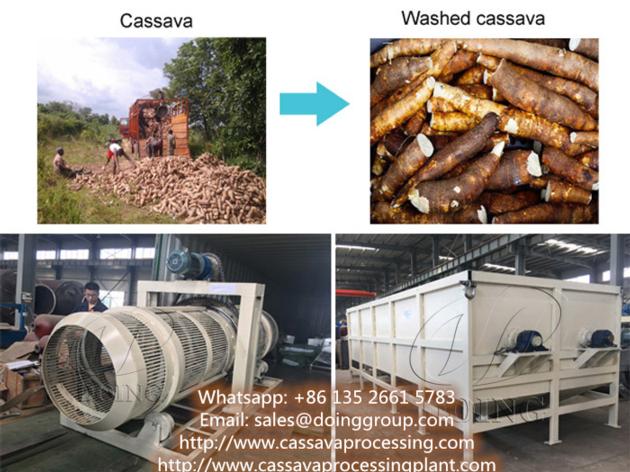

1.Cassava cleaning machine:
This is the firstly used garri making machine whose is mainly used to roughly clean the sand, small stones, dirt, weeds and other attached debris of cassava. This machine adopts multiple inner spirals design which can effectively push materials move forward. The cleaning process is completed in the transportation process which makes it consume less power. Cassava value addition machines cassava garri production line

2. Cassava washing machine:
The purpose of this garri making machine is to further wash the sand, soil and impurities of raw material. The machine for cassava washing is paddle washing machine. By adopting counter-current washing principle, this machine can effectively wash the raw material. The machine features with stable operation and low material damage. Cassava value addition machines cassava garri production line



3. Cassava peeling machine:
Cassava peeling machine is mainly for removing the outer peels and subcutaneous cuticle of cassava roots. It is not only a garri making machine but also can be used for cassava flour and cassava chips processing machinery. The contact part is made of stainless steel which can effectively prevent material from polluted. And the peeling rate of this machine is above 95%. Cassava value addition machines cassava garri production line

Technical parameters of cassava peeling machine:
Model
Capacity(t/h)
Power(kw)
Dimension(mm)
Weight(kg)
DYTP-40
0.5-1
3
3250*1050*1100
1200
DYTP-60
1-2
5.5
4250*1050*1100
2000
DYTP-80
3-4
7.5
5250*1050*1100
3000
4. Cassva grinding machine:
Rasper is the extensively used cassava grinding machine. It grinds the peeled cassava into cassava slurry and the bound starch is thus transported into free starch. Grinding is an impiortant garri making machine because it have an vital influence on the garri yield. Therefore the choose of raper is important. DOING rasper is an machine fully absorbs international advanced technology which has the features of high speed and high extraction rate. Cassava value addition machines cassava garri production line



5.Dehydrating machine:
The dehydrating machine uses the priciple of hydraulic press to directly queeze the water out of the material and then discharge it. This is also an important garri making machine, and Doing Company can design and manufacture the machine according to your requirements. And the parts which contact material is also made of stainless steel, so that it can ensure high quality of final products. Cassava value addition machines cassava garri production line

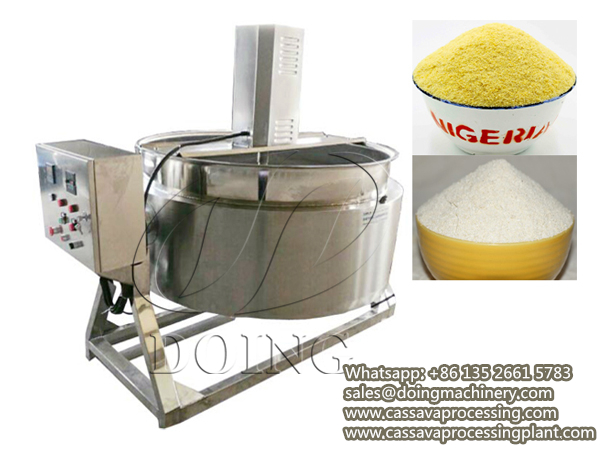

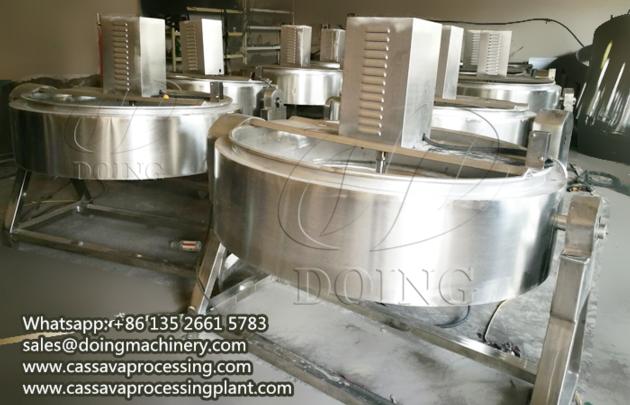

6. Garri frying machine:
This is an automatically frying machine which can control temperature itself. The even and stable temperature can prevent pasting phenomenon. This garri making machine mainly consists of pan, frame, stirring part, heating part, driving part, discharge part and others. Cassava value addition machines cassava garri production line
