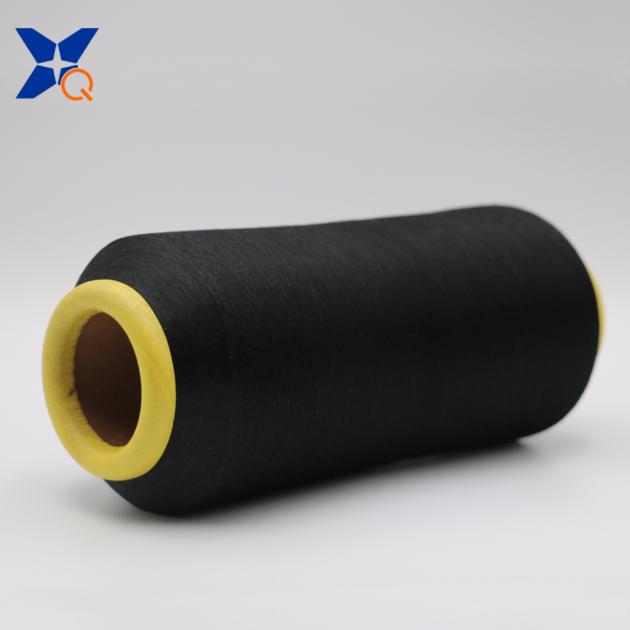

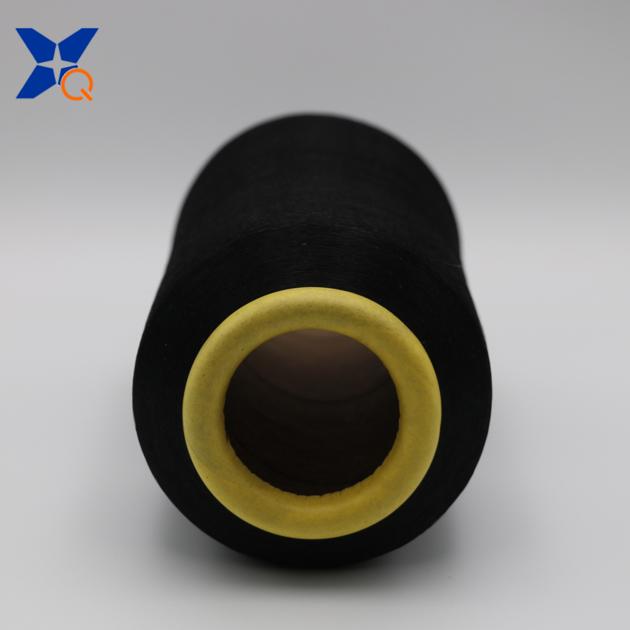

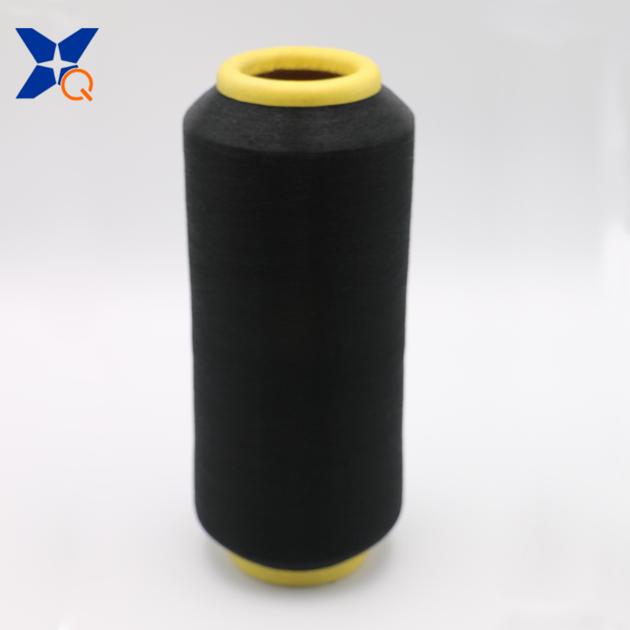

Carbon inside conductive nylon high strength filaments 50D/1F Anti-Static Yarn-XT11079

carbon inside conductive nylon high strength filaments 50D/1F fabrics lattice mesh apron wool spinning



a) conductive materials: carbon grains.

b) surface resistance: 10^3~10^4 ohm.


c) thickness: 50D

d) filament(s):1F



Also could supply 20D/3F, 20D/4F, 35D/6F, 40D/3F, 40D/6F, 100D/12F, etc.



Denier/Filament(s) Based Materials Conductive grains Cross section Color Surface resistance
20D/1F Nylon 6 Carbon outer ring type.jpg Black 10^4~10^5 ohm
20D/3F Nylon 6 Carbon outer ring type.jpg Black 10^4~10^5 ohm
40D/3F Nylon 6 Carbon outer inner type.jpg Black 10^4~10^5 ohm
40D/6F Nylon 6 Carbon outer inner type.jpg Black 10^4~10^5 ohm
20D/3F Nylon 6 Metal oxide / White 10^8 ohm
20D/3F Nylon 6 Carbon LR.jpg Black 10^5~10^6 ohm
20D/4F Polyester Carbon LR.jpg Black 10^6 ~ 10^7 ohm
50D/8F Polyester Carton sandwich-type.jpg Black 10^6 ~ 10^7 ohm
20D/3F Polyester Carbon cross-section.jpg light grey 10^6 ohm
35D/6F Nylon Carbon inner triangle type.jpg black 10^6 ohm






Application:

Embeded this conductive filaments into the fabric of anti-static work wear and cleanroom garments by regular grd/stripe , this fabric could electro static discharge .
* Dustless fabric
* linings of top grade suit
* Anti-static kniting gloves/lattice mesh apron

* Anti-static fabrics
* Anti-static single yarn drill and ply-yarn drill
* Anti-static filter felt .

Packaging & Shipping
500-800grams/bobbin, is not even net weight.

16 or 24 bobbins/carton



Could ship by international express or by general air transportation or by sea.



Our Services
If less than 100kg, could send out within 7 days approx.

If more than 1000kg, could finish them within 26 days approx..



Company Information
We produced this types of products more than 15 years, it is best-selling goods in EU, Turkey, India, USA, Argentina, Brazil, etc.



FAQ
a) If export to Turkey, could supply Exporter Registry Form and Certificate of origin?

Yes, we exported this products to Turkey more than 10 years, very familiar with Turkey's market.



b) Could use this filaments for knitting/weaving directly?

No, should intermingle/twist/cover with common polyester filaments FDY(DTY) black(white) 50D/75D/100D/150D/200D/280D in advance, then, could be used for weaving/knitting.

Of course, also could twist/cover with cotton yarn/polyester staple fiber spun yarn, then, used for weaving/knitting.

Such as:

Black carbon inside conductive nylon filaments 20D/3F(ourter ring type) intermingling with common black(white) polyester DTY(FDY) filaments 50D/75D/100D/150D/200D



Black carbon inside conductive nylon filaments 20D/3F(ourter ring type) twisting with common black(white) polyester DTY(FDY) filaments 50D/75D/100D/150D/200D



Use black carbon inside conductive nylon filaments 20D/3F(ourter ring type) cover common black(white) polyester DTY(FDY) filaments 50D/75D/100D/150D/200D by S direction only.



Use black carbon inside conductive nylon filaments 20D/3F(ourter ring type) cover common black(white) polyester DTY(FDY) filaments 50D/75D/100D/150D/200D by S direction and Z direction concurrently.



c) Could keep ability of electro static discharge after 250 times washing?

Of course, so long as this materials exists in, it always has this capacity of electro static discharge.
