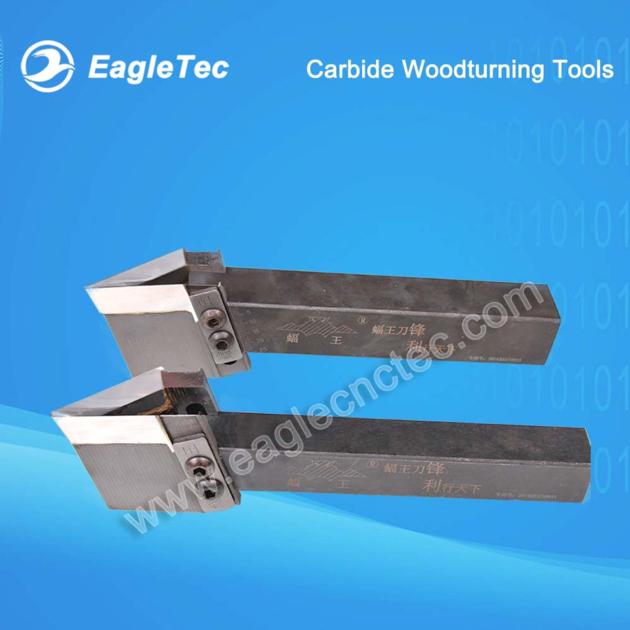

Carbide tipped wood lathe tools for Woodturning CNC Lathe

From Eaglecnctec.com

Full carbide tipped wood lathe tools set include:
Blade – 1 piece
Cutter Bar – 1 piece
Wrench
Screws & gaskets

Carbide Tipped Cutters for Woodturning Features

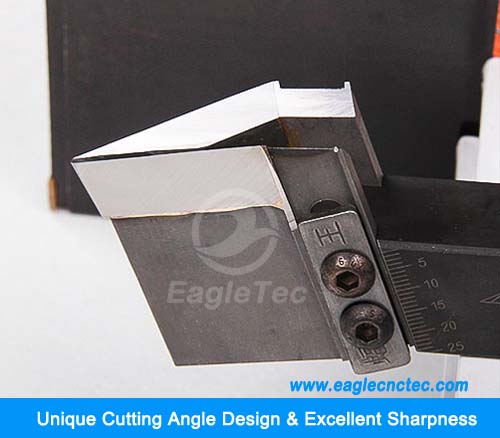

1) Angle: the design and sharpness of the cutting angle on both sides of the cutting edge are better than any other carbide tipped wood lathe tools

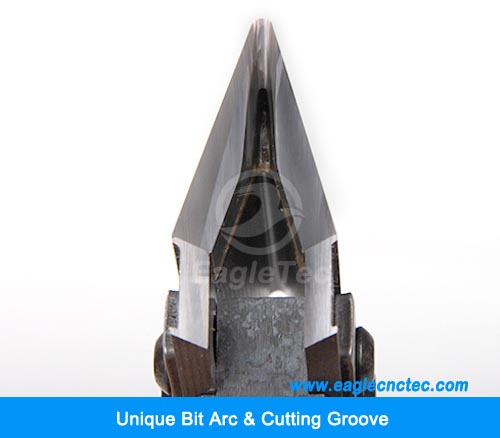

2) Bit: unique design of bit arc and cutting groove makes the finishing excellent; the brightness of wood is guaranteed.

Bit: unique design of bit arc and cutting groove makes the finishing excellent; the brightness of wood is guaranteed.

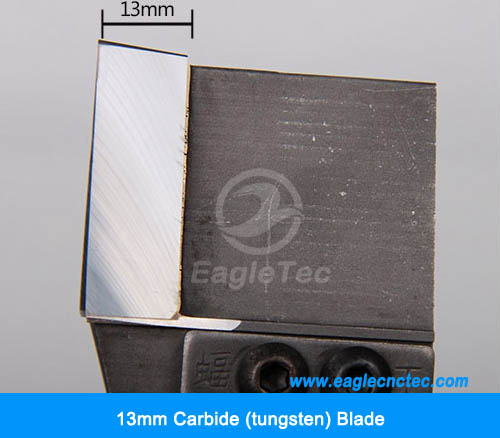

3) Blade: 13mm carbide (tungsten) blade can be grinded more than 50 times, greatly improving its service life; the grinding times are at least 3 times of other carbide tipped wood lathe tools. The machining quantity can reach more than 5 times of other carbide cutters for woodturning, and the finishing is better than them.

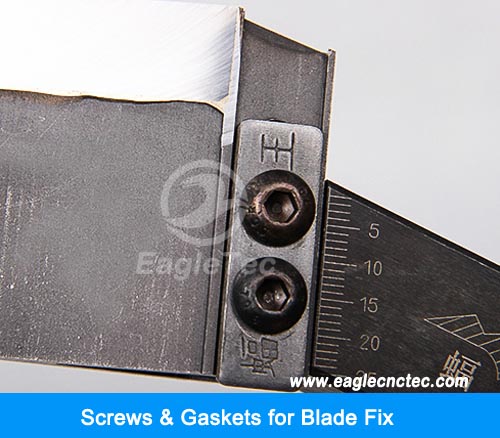

4) Stability Performance: the design of four fastening screws and two gaskets can make our blade locked on the cutter bar very steadily, making the machining more stable, and no need worry that it will get loose or slip down in process of machining.

Carbide tipped wood lathe tools Specification
Cutter Bar: 40Cr Steel, size 20*20*150mm or 25*25*150mm
Blade: high quality solid carbide (tungsten)
Blade length: 40mm
Cutting angle: 17 degree
Blade tip radius: 0.75mm / 1.0mm / 1.5mm
Blade thickness: 13mm
Blade Hardness: 92.6 HRC

Enquire now if any interest!
