Cable accessories Electric Waterproof Insulation piercing Connector Puncture clamp
| Price: | US$ 0.59 / Piece |
|---|---|
| Minimum Order: | 500 |
| Payment Terms: | TT |
| Port of Export: | NINGBO |
Product Details
| Model No.: | PCT13C 95/50 | Brand Name: | CROP |
|---|
| Certification: | |
|---|---|
| Specification: |
Material
Body: Thermoplastic polyamide 66 with fiberglass Connecting bridge: Copper tinned, Brass tinned, Al Sealing parts: Flexible PVC End cap: Flexible PVC Grease: Silica gel Bolt: Hot dip glavanized steel, 8.8 grade Washer, Nut: Hot dip glavanized steel Fuse nut: Zinc alloy |
Packaging & Delivery
| Packaging: | CARTON |
|---|---|
| Delivery/Lead Time: | 8 |
| Production Capacity: |
Product Description

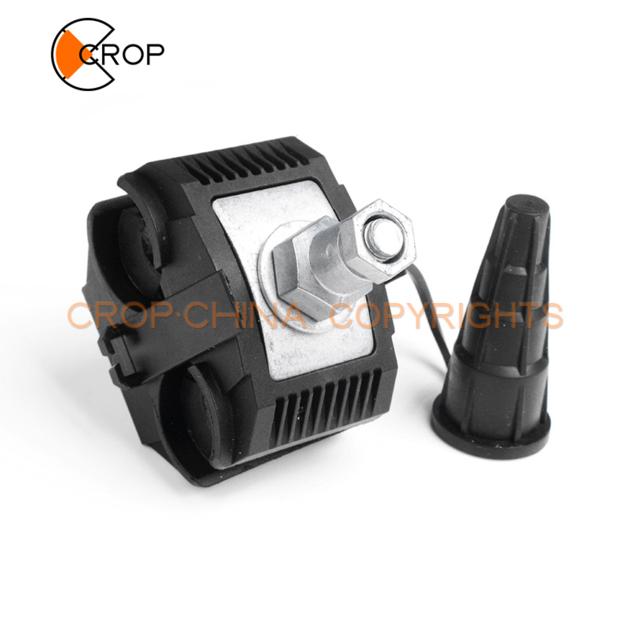

Cable accessories Electric Waterproof Insulation piercing Connector Puncture clamp
Description
The waterproof insulation piercing connectors are suitable for majority types of LV ABC conductors as well as connections to service and lighting cable cores. When tightening the bolts, the teeth of the contact plates penetrate the insulation and establish a perfect contact. The bolts are tightened until the heads shear off. Tightening torque guaranteed(fuse nut). Stripping of insulation is avoided.
Service condition: 400/600V, 50/60Hz, -10®C to 55®C
Standard: IEC 61284, EN 50483, IRAM2435, NFC33 020.
Material
Body: Thermoplastic polyamide 66 with fiberglass
Connecting bridge: Copper tinned, Brass tinned, Al
Sealing parts: Flexible PVC
End cap: Flexible PVC
Grease: Silica gel
Bolt: Hot dip glavanized steel, 8.8 grade
Washer, Nut: Hot dip glavanized steel
Fuse nut: Zinc alloy
Features
• Tested for watertightness at a voltage of 6 kV for 30 min in a waterbath
• Potential free tightening bolts allow safe installations on life lines
• Bimetallic, suitable for aluminium and copper conductors
• Long neck 13 mm shear head nut ensuring reliable installations
• Components not losable, end cap attached to body
• Insulation material made of weather and UV resistant glass fibre reinforced polymer
|
