Cable Test Van ETL-35K

Price:	US$ 1
Minimum Order:
Payment Terms:	PIA - payment in advance
Port of Export:

Product Details

Model No.:		Brand Name:

Certification:
Specification:	Specifications engine: diesel; axle arrangement: 4X4; engine power: 117.2 hp; overall length: 6750 mm; dimensions of the van: 3700/2300/2000 mm (L/W/H). Features of the van: type of the van – made of sandwich panels; shape of the van – rectangular; outer skin – white clad metal, 0.6 mm thick; external and internal surfacing elements – aluminum angle; upholstery – white glass-reinforced plastic supported on a 4 mm plywood; insulation – extruded polystyrene foam 80 mm; side one-piece door on the right side (handrail, ladder, deadlock locked with a key, hold-open latch); rear one-piece door on the rear wall (handrail, ladder, deadlock locked with a key, hold-open latch). Windows (double-glazed windows) – 3 windows that can be opened: in the living compartment – 1 on the right side, 1 on the left side; in the working compartment – 1 with a curtain on the left side; interior lighting 220 V AC and 12 V DC; installation of a protective transparent partition between the operator compartment and the high-voltage compartment, working table and swivel chair; boxes for storage of accessories; industrial computer; multifunctional device (copying + printing); special identification marks and inscriptions in accordance with the norms of the customer.

Certification:

Specification:

Specifications
engine: diesel;
axle arrangement: 4X4;
engine power: 117.2 hp;
overall length: 6750 mm;
dimensions of the van: 3700/2300/2000 mm (L/W/H).

Features of the van:
type of the van – made of sandwich panels;
shape of the van – rectangular;
outer skin – white clad metal, 0.6 mm thick;
external and internal surfacing elements – aluminum angle;
upholstery – white glass-reinforced plastic supported on a 4 mm plywood;
insulation – extruded polystyrene foam 80 mm;
side one-piece door on the right side (handrail, ladder, deadlock locked with a key, hold-open latch);
rear one-piece door on the rear wall (handrail, ladder, deadlock locked with a key, hold-open latch).

Windows (double-glazed windows) – 3 windows that can be opened:
in the living compartment – 1 on the right side, 1 on the left side;
in the working compartment – 1 with a curtain on the left side;
interior lighting 220 V AC and 12 V DC;

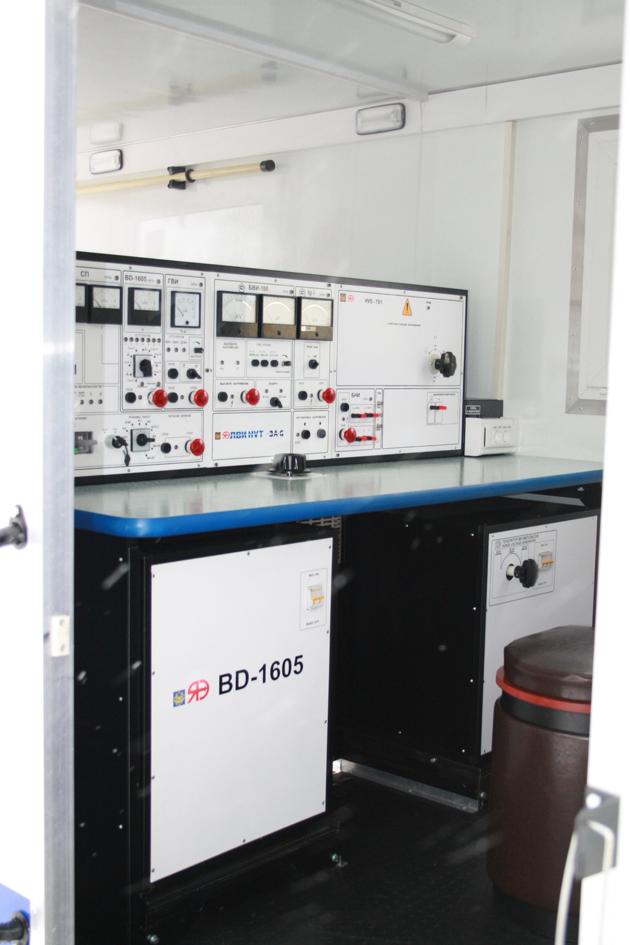

installation of a protective transparent partition between the operator compartment and the high-voltage compartment, working table and swivel chair;

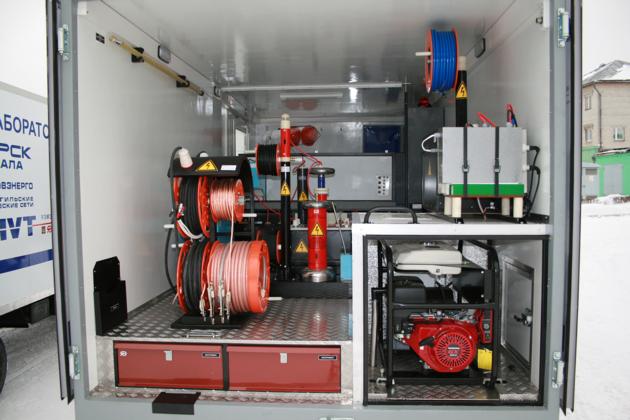

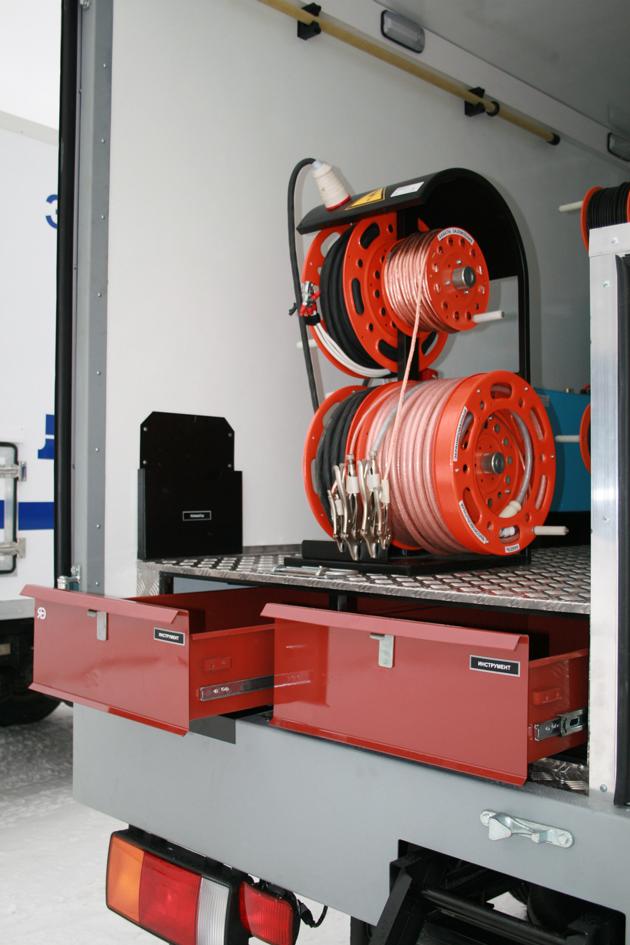

boxes for storage of accessories;
industrial computer;
multifunctional device (copying + printing);
special identification marks and inscriptions in accordance with the norms of the customer.

Packaging & Delivery

Packaging:
Delivery/Lead Time:
Production Capacity:

Product Description

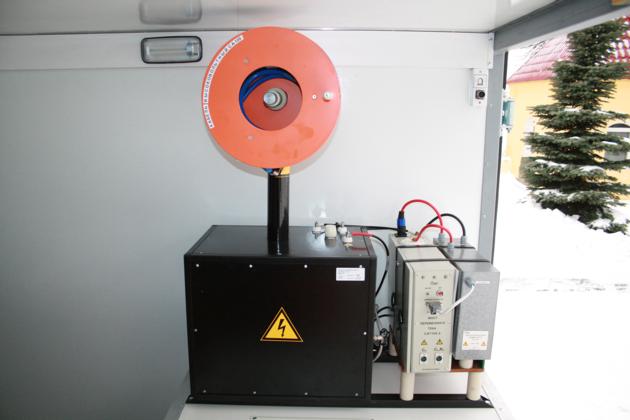

The high-voltage laboratory performs the following functions:
High-voltage tests of power cables up to 35 kV with an alternating voltage of 60 kV of the extremely low frequency of 0.1-0.02 Hz;
Burn down of the damaged insulation of power cables;
Faultfinding in high-voltage cables using the pulse-echo method and arc reflection method;
“Arc reflection method”;
Faultfinding in high-voltage cables using the acoustic and inductive method;
Selection of a cable from the cable bundle;
Faultfinding in the cable sheath;
Insulation resistance test;
Dielectric loss angle tangent and high-voltage insulation measurement;
Determines partial discharge localization on high-voltage equipment items;
Measuring parameters of no load operation, short circuit, transformation ratio of power and instrument transformers;
Testing switches with the rated current up to 200 A;
Testing resistance to the direct current of items having significant inductance.
