CVD Diamond dresser [email protected]

Details:
CvD Diamond for DresserSome Grinding wheels wear quite rapidly and should have their profiles and/or cutting edges renewed with diamond dressers. CVD Diamond dreeser has a high resistance to abrasive wear, high thermal stability, and is chemically inert, These charactors make it an  ideal tool material for those applications where higher temperature operating conditions are seen, in particular, dry machining of metal matrix composites and high volume fraction glass fibre (or carbon) reinforced materials.

Benefits
High resistance to chipping and fracture
Uniform wear over the entire length of the dresser
Performance independent of dressing orientation
Excellent thermal stability
Diamond with no binder phase
Features:
1.Long service time and reduce the dressing costs per workpiece
2.High precision and efficiency when working, and optimize utilization of machine capacity
3.Rapid incorporation of complex profiles in the grinding wheel
4.Choose different diamond dressing tools on basis of diameter, width, and grain size of the grinding wheels
5.The cross feed rate and cutting is dependent upon grain size, the lower the feed rate, the finer the surface finish

Availability

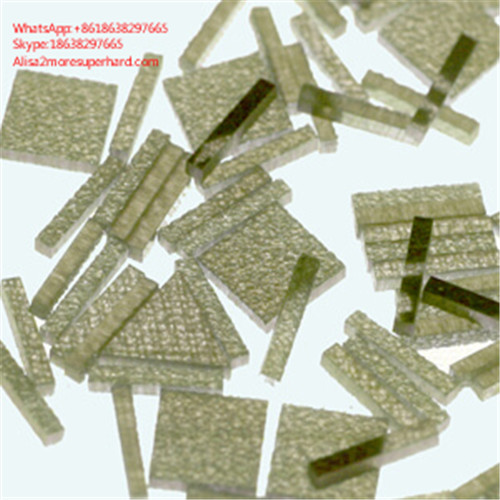

Our CVD diamond dresser is supplied as rectangular logs in various lengths and square .CVD diamond dresser products with non-standard dimensions are available on request.

Product number dimensions (mm)
x length width x thickness
CVDD X0404 1.5 - 5.0 0.4 x 0.4
CVDD X0606 1.5 - 5.0 0.6 x 0.6
CVDD X0808 1.5 - 5.0 0.8 x 0.8
CVDD X1010 1.5 - 5.0 1.0 x 1.0
CVDD X1515 3.0 - 7.0 1.5 x 1.5
CVDD X2020 3.0 - 7.0 2.0 x 2.0
Parameters of properties
vickers hardness  10000kg / mm°
density 3.51 g/cm±
young modulus 1000GPa
thermal conductivity 8W/ cm.k
chemical stability insoluble in alkali and acid
Some Grinding wheels wear quite rapidly and should have their profiles and/or cutting edges renewed with diamond dressers. To help customers do their grinding work effectivily, Focus supplied a full range of diamond dreesers for customers.

Why choose our product
More SuperHard Products Co., Ltd is dedicated to finding solutions that help our clients in all markets succeed. More SuperHard has been manufacturing high-quality, competitively priced superabrasive diamond and cbn tools that are designed to perform in a wide range of industrial ,such as pcd tools grinding, natural diamond polishing, auto parts processing , thermal spray coated industry, optical glass, semicon and led industry, woodworking tool , cnc tool grinding and roll machining ,others ultral precision industry.
The company production and sales of products covered vitrified bond tools, resin bond tools, metal bond tools, electroplated diamond/cbn tools, vaccum brazed products, cvd diamond tools, polycrystalline diamond (pcd) tools, cubic boron nitride (cbn) tools.our objective is to meet all the customers’ needs and help every customer achieve maximum benefits.  more brings in revenue for you, you win, we win!
More SuperHard supplies the wheels for several application mainly:
1.Carbide round tools on cnc machines : flute grinding, gash grinding, end facing, clearance angle and cylindrical grinding .
2. Insert grinding for machines such as: agathon, wendt, haas, waida and ewag.
3.Woodworking saw blade and tools .
4.Hss tools
5.Cutting wheels
nes such as: agathon, wendt, haas, waida and ewag.
3.Woodworking saw blade and tools .
4.Hss tools
5.Cutting wheels

Our product’s advantages:
1.High grinding efficiency
2.Wonderful edge quality
3.Long service life
4.High polishing efficiency
5.Large Exports
6.Considerable after-sell service
7.Amazing performance
8.Various types and sizes available
9.Direct Factory Manufacturer
10.Backing/substrate material: Aluminum
11.Abrasive layer: diamond
12.Bond: vitrified
13.Excellent cutting edges
14.Reduced cycle times
15.Custom Engineered
