CT-5060-UAV Drone 6 Bands 550W Software control Jammer up to 8km

CT-5060-UAV Drone 6 Bands 550W Software control Jammer up to 8km

Outdoor Anti-Drone Jammer able to remotely control each band output power level and on/off by optional PLC Software

CT–5060-UAV (6 bands)
1 5700Mhz-5900Mhz Wireless RC 5.8Ghz 50W
2 2400Mhz-2500MHz 2.4Ghz Wireless RC WiFi BT 100W
3 1570-1620MHz GPS L1 + GLONASS L1 GALILEO E1 BeiDou B1 100W
4 1170-1280MHz GPS L2 GPS L5 GLONASS L2 BeiDou B3 B2 GALILEO E6 100W
5 Remote Control 433/434MHz 100W
6 Remote Control 868-928MHz: 100W
Total : 550W

Option: GPS L1 L2 L3 L4 L5, Galileo, Beidou: 100W, 860-920MHz:100W etc

Jamming Range Radius :
1000-4000 Meters with Omni Antennas,
3000-8000 Meters with HGA Higher Gain Directional Antenna
Distance always varied depending on the signal strength, antennas and location.

Cover Most of all Commercial Used Drones / UAVs like Dji Phantom 4, Phantom 3 Professional, Advanced Series, Inspire Series etc

Package contents:
1pc One main jammer unit
1pc AC 110 or 220V DC 27V power supplier

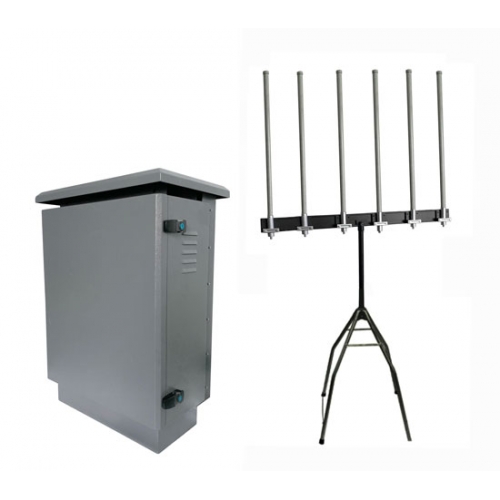

6 pcs Antennas Omni 500mm long with frame ( Tripod is not included in our prices)
1 pc Wireless RC 315Mhz OFF/ON or Ethernet PC remote control OFF/ON or Additional PLC Software

Additional 2 pcs directional Outdor HGA Antennas 90 degree 3 bands 12dbi or 16dbi

By additional PLC Software operator are able to remotely control each band output power and On/Off by Software on Computer (RJ45 Ethernet connection, Ethernet Remote Control ) ( @Model CT–5060R-UAV)

If power level control software (PLC) is not required, the device can use Wireless RC 315Mhz OFF/ON or Ethernet PC remote control OFF/ON

Adjustable Output Power each Band, From Max Output Power to 0 (OFF)
100% Safe VSWR over protection (Isolator) for each modular
Power supply: AC110 or 220-240V /DC 27V
Dimension: 85 x 55 x 45 cm Weight: 50Kg
Working time: Without the time limit, may continue to work.

2 Years warranty, Neutral packing, OEM Manufacturer :
