CT-4001PH2 Anti Drone UAV FPV RC 34-40-80W Jammer up to 1500m+

CT-4001PH2 Anti Drone UAV FPV RC 34-40-80W Jammer up to 1500m+

A simple rf weapon against drones, portable directional handheld Drone (UAVs) jammer that is designed to be compact for easy carrying and terrain use. It is fully autonomus with built in directional antenna and battery for 80min operation. CT-4001PH is easy to handle in use, since only handheld antennas are directed towards the threat, thus soldier is not under heavy weight of the whole device.

Split design, separate light weight, hand-held antennas make it more ergonomic, precise and practical in use. It is best suited for military special operations teams, police, security forces that are deployed in different situations or public events. Specialized to jamm 2.4Ghz, GPS, and 5.8Ghz RF signals that use most of commercial UAVs Drones for their​ navigation,​ remote controls and FPV “first-person view” video streaming .The effective blocking range is up to 1500+ meters. The jamming distance always varied depending on the signal strength and location. Device does not block the operation of mobile phones.

New HOME Option on drone Jammer CT-4001PH is implementation that greatly improves functionality and safety of operators as well as potential targets. When drone is spotted and jammed, it will hoover for some time, and proceed to slow landing. That can cause dangerous situation if drone caries explosives, bio weapons or similar. By activating HOME GPS option, drone will get immediate internal command to go back to take-off site and land there. This will give you a visual trace and possible drone operator capture while dangerous load is out off protected area.

Portable Handheld Anti-Drone FPV RC Jammer
Max 80W, 4 RF Modules, 3 Bands 2.4Ghz GPS L1 5.8Ghz
80 mins Built-in Battery, Battery LED Status

​1 Ver CT-4001P - 1700.00 US$ (Jamming 300 to 1000m+):
RC 2.4-2.5GHz RC FPV Video WiFi (Vertical Polarization) 10W
RC 2.4-2.5GHz RC FPV Video WiFi (Vertical Polarization) 10W
GPS L1 + GLONASS L1 1570-1620MHz 10W
RC FPV Video 5Ghz 5.7GHz-5.9GHz 4W
Total : 34W

2 Ver CT-4001PH - 3100.00US$ (Jamming 300 to 1200m+, 10W on 5Ghz):
RC 2.4-2.5GHz RC FPV Video WiFi (Vertical Polarization) 10W
RC 2.4-2.5GHz RC FPV Video WiFi (Vertical Polarization) 10W
GPS L1 + GLONASS L1 1570-1620MHz 10W
RC FPV Video 5Ghz 5.7GHz-5.9GHz 10W
Total : 40W

3 Ver CT-4001PH2 - 4100.00US$ (Jamming 500 to 1500m+) - NEW:
RC 2.4-2.5GHz RC FPV Video WiFi (Vertical Polarization) 20W
RC 2.4-2.5GHz RC FPV Video WiFi (Vertical Polarization) 20W
GPS L1 + GLONASS L1 1570-1620MHz 30W
RC FPV Video 5Ghz 5.7GHz-5.9GHz 10W
Total : 80W

Jamming range 300~1500 Meters
The jamming distance will be varied depending on the signal strength and location.
Operating Time 80 Minutes, Battery LED Status,
Two 2.4GHz Bands 10W per band cover Most of all Commercial Drones / UAVs
Like Dji Phantom 4, Phantom 3 Professional, Advanced, Standard series, Inspire Series...
Adjustable Output Power each Band from Max Output Power to 0 (OFF)
100% Safe VSWR over protection (Isolator) for each modular
Power supply: AC Charger adapter (AC220V/110V)
Dimension：260 x 260 x 70 mm (H × W × D)
Weight：2.7kg 10W Version 20W 4.5kg (approximately)
Operating temperature: -20℃ ~ +60℃

Four Bands in One Directional Antenna Specification Electrical Specifications :
Frequency Range 1575-1620MHz 2400-2500MHz 2400-2500MHz 5150-5875MHz
Gain 8dBi 12dBi 12dBi 15dBi
VSWR ≤1.5 ≤1.5 ≤1.5 ≤1.5
Polarization Vertical Vertical Vertical Vertical
Horizontal beamwidth 65® 60® 60® 60®
Vertical beamwidth 55® 28® 28® 14®
Front to back ratio ≥24dB ≥25dB ≥25dB ≥25dB
Input Impedance 50Ω 50Ω 50Ω 50Ω
Max Input Power 50W 50W 50W 50W
Double 2.4GHz RC block much longer
Good Isolation each other (4 bands in)
Lightning protection Direct Ground
Connector N-M

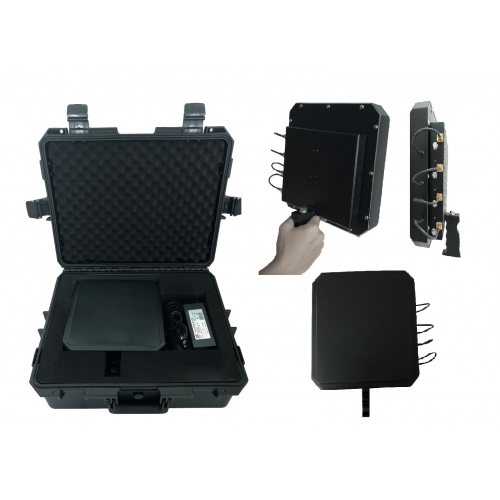

Package contents:
1pc Handheld Portable Signal Jammer
1pc AC Charger 110/220V



Additional Carry case in order options, size 521 x 421 x 140 mm, 2.9Kg (only Case)





2 Years warranty, Neutral packing, OEM Manufacturer :
