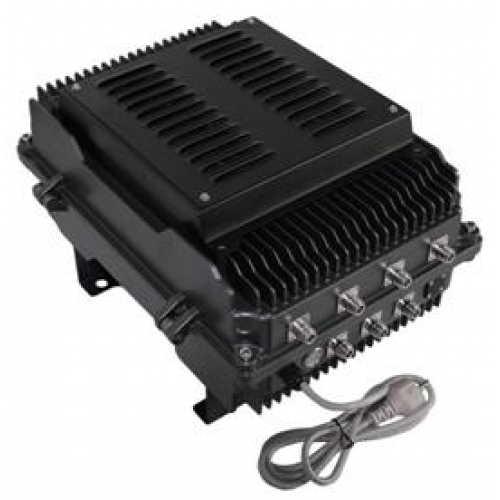

CT-3090DJ-UAV Outdoor Anti-Drone UAV Jammer up to 2500m

CT-3090DJ-UAV Outdoor Anti-Drone UAV Jammer up to 2500m

Outdoor fixed Jammer 5-7 Bands, 1000-2500 Meters 360 degree Omni Antenna, IP66 Outdoor Case 100% Waterproof Rainproof, secure design for outdoor installation.Continuous operation even in hot or cold climates with no time limit.

Advantages & Features
1. Each unit can jam up to 5-7 frequency bands simultaneously.
2. Continuous operation even in hot climates with no time limit
3. Case design for easy outdoor installation
4. Secure Case design to avoid sabotage
5. Operating temperature range -20 to +60
6 2.4Ghz 5.8Ghz. Vertical+Horizontal Polarization 2 bands Big Omni Antennas 360 degree
7. Wireless RC OFF/ON remote control up to 100m or Ethernet PC remote control OFF/ON

CT-3091DJ-UAV 5 Band
One Big Omni Antenna Φ76*620mm
1 5.7-5.9GHz: 10W 5Ghz RC ( Vertical Polarization )
2 5.7-5.9GHz: 10W 5Ghz RC ( Horizontal Polarization )
One Big Omni Antenna Φ72*1140mm
3 2.4-2.5GHz:20W WiFi 11.g, b, Bluetooth ( Vertical Polarization)
4 2.4-2.5GHz:20W WiFi 11.g, b, Bluetooth ( Horizontal Polarization)
5 1570-1620MHz :40W GPS L1 + GLONASS L1 Omni Antenna
Total: 100W

CT-3092DJ-UAV 6 Band
One Big Omni Antenna Φ76*620mm
1 5.7-5.9GHz: 10W 5Ghz RC ( Vertical Polarization )
3 5.7-5.9GHz: 10W 5Ghz RC ( Horizontal Polarization )
One Big Omni Antenna Φ72*1140mm
3 2.4-2.5GHz:20W WiFi 11.g, b, Bluetooth ( Vertical Polarization )
4 2.4-2.5GHz:20W WiFi 11.g, b, Bluetooth ( Horizontal Polarization )
5 1570-1620MHz :40W GPS L1 + GLONASS L1 Omni Antenna
6 433MHz :50W Remote Control Omni Antenna
Total: 150W

CT-3093DJ-UAV 7 Band
One Big Omni Antenna Φ76*620mm
1 5.7-5.9GHz: 10W 5Ghz RC ( Vertical Polarization)
2 5.7-5.9GHz: 10W 5Ghz RC ( Horizontal Polarization)
One Big Omni Antenna Φ72*1140mm
3 2.4-2.5GHz:20W WiFi 11.g, b, Bluetooth ( Vertical Polarization)
4 2.4-2.5GHz:20W WiFi 11.g, b, Bluetooth ( Horizontal Polarization
5 1570-1620MHz :40W GPS L1 + GLONASS L1
6 433MHz :50W Remote Control Omni Antenna
7 860-920MHz:25W Remote Control Omni Antenna
Total: 175W

Option: GPS L2 L3 L4 L5: 20W

Jamming Range Radius 1000~2500 Meters+
The jamming distance always varied depending on the signal strength, antennas and location.
Cover All 100% Commercial Drones / UAVs Like DJI Phantom 4 Pro V2.0, Phantom 4, Phantom 3 Professional, Mavric Pro , Advanced, Standard series, Inspire Series...
Adjustable Output Power each Band/Channel, Max Output Power to 0 (OFF)
100% Safe VSWR over protection (Isolator) for each modular
Power supply: AC110 or 220-240V /DC 27V
Weight 20-25kg Dimension: 470 x 380 x 290mm
Working time: Without the time limit, May continue to work,
Antenna External Omni Antennas

Package contents:
1 pc Outdoor Jammer unit
1 pc AC 110 or 220V Power supplier
3-5 pcs Antennas Omni
1 pc Wireless RC OFF/ON 315Mhz
1 pc Omni Antennas frame with 3m cables (Tripod is not included in price)



2 Years warranty, Neutral packing, OEM Manufacturer :
