CR Material Auto Transmission PK Belt with Fatigue Life 80,000 Km

Material: CR
Feature:
· Low bearing load
· Wear resistant
· Hydrolysis resistant
· Low noise
· Highly flexible
· Constant length, no post-elongation
· Low pre-tension
· Tropical climate resistant
------------------------------------------------------------------------------------------------
Material: EPDM
Feature:
· Use modified EPDM rubber and special formula, more resistant to high temperature and aging resistant, can work long time in the environment of 150℃.
· Wedge surface contains special fiber, can reduce noise, can increase the belt transmission efficiency.
· High strength heat memory tension line, keep the length constant and extend the service life.
· Precise grinding technology to make sure the angle exactly and operation steady.
· High quality rubber with competitive prices, best service.
SIZE OF PK BELT
Tape Rib section Angel of rib Belt width Belt thickness Rib number Length range
3pk 3.56 40 10 4.8 3 600-2400mm
4 pk 3.56 40 13.6 4.8 4 600-2400mm
5 pk 3.56 40 17 4.8 5 600-2400mm
6 pk 3.56 40 20.7 4.8 6 600-2400mm
7 pk 3.56 40 24.3 4.8 7 600-2400mm
8 pk 3.56 40 27.8 4.8 8 600-2400mm
9 pk 3.56 40 31.4 4.8 9 600-2400mm
10 pk 3.56 40 35 4.8 10 600-2400mm

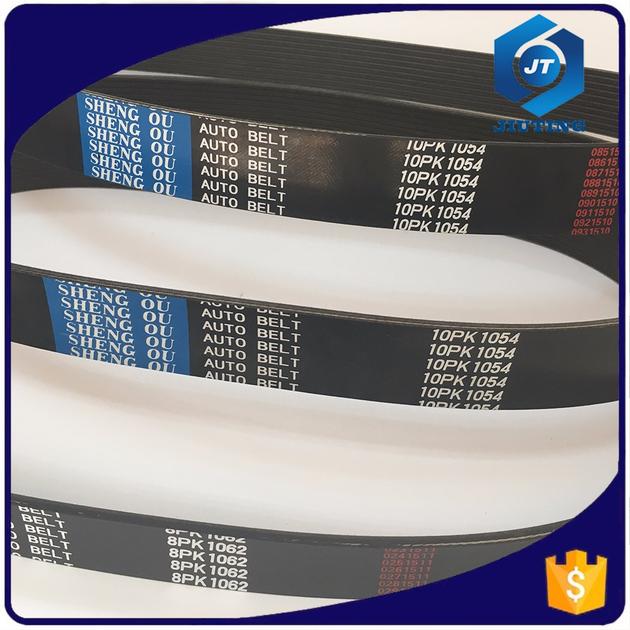

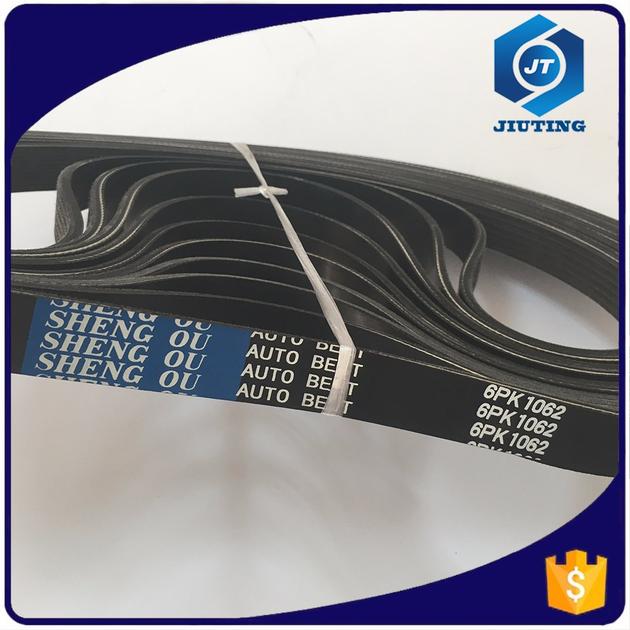

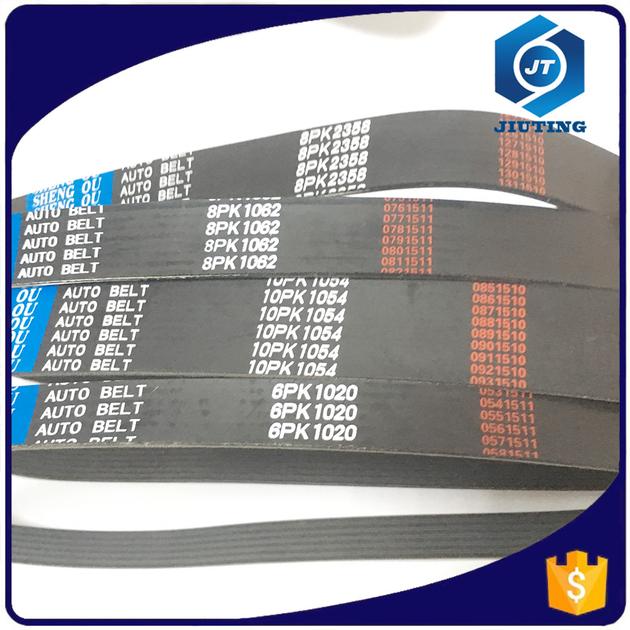

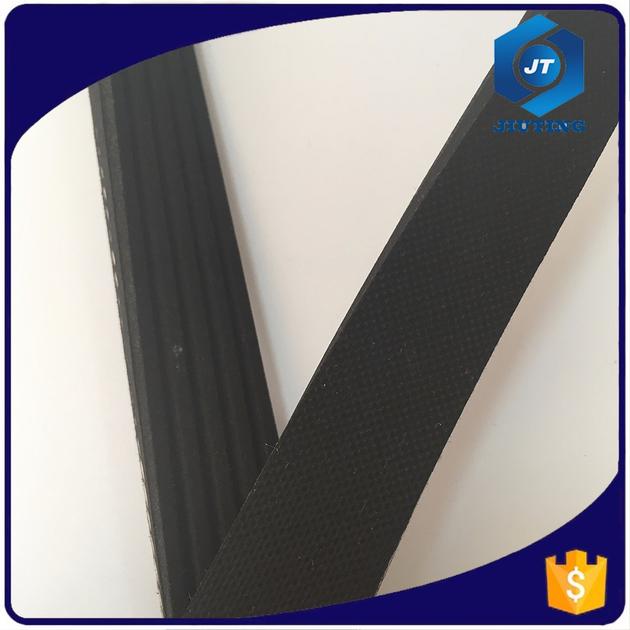

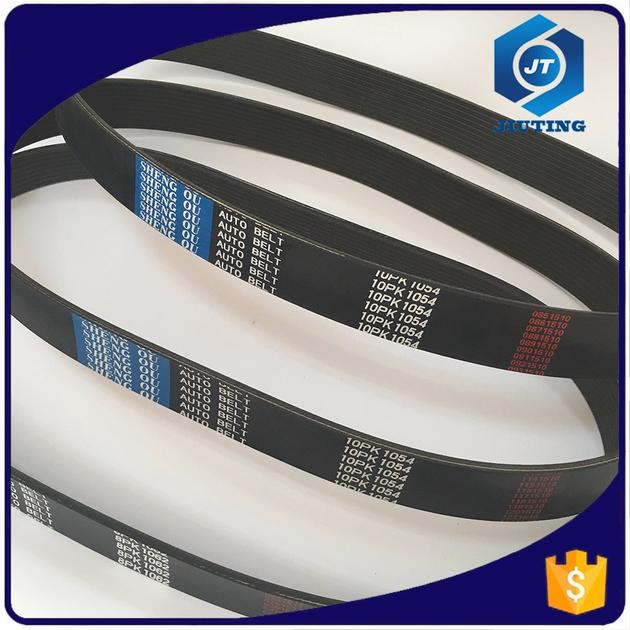

Detail of products
· Wide breadth but thin belt, excellent elastic and flexible property
· High transmission efficiency under the operating environment of high-speed rotation, reverse flexible, small band pulley, etc.Core rubber with high tension and low elongation, while the consistent tension is maintained
· during the process of operation
· Excellent heat-resistance, oil-proof, and wearing resistance
· Less slip while large transmission effect during the process of operation
· Less noise during the process of operation



APPLICATION
· Pk belt is mainly used for the transmission of power plants such as engine, motor, widely used in auto parts, electrical and mechanical industry
