CQBF Fluorine plastic magnetic drive pump

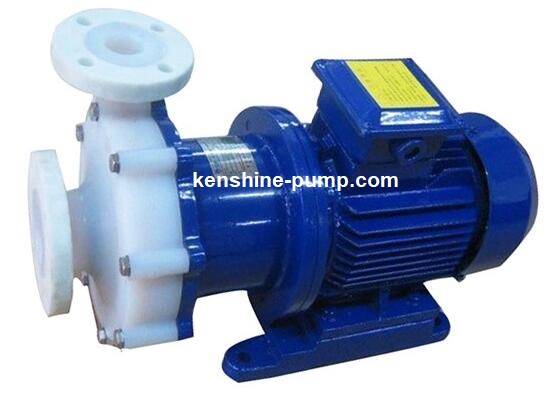

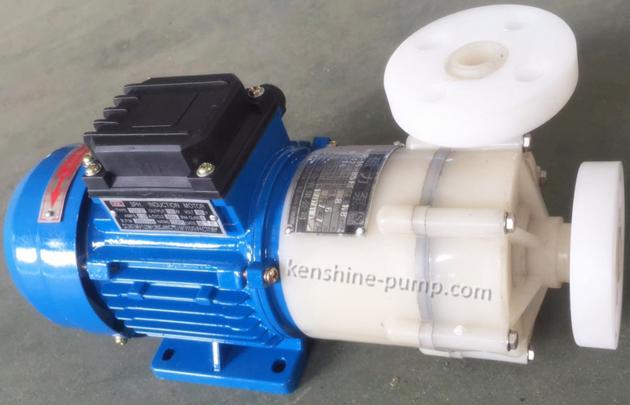

CQF magnetic reinforced polypropylene pump has the flow parts of injection molding and withstand most organic and inorganic acid, alkali and salt solutions etc. CQF Magnetic polypropylene pump is also suitable for exposure in outdoor atmosphere, good corrosion resistance to stress corrosion cracking.

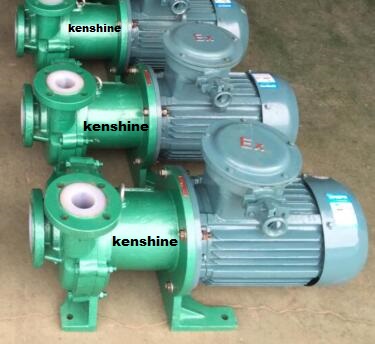

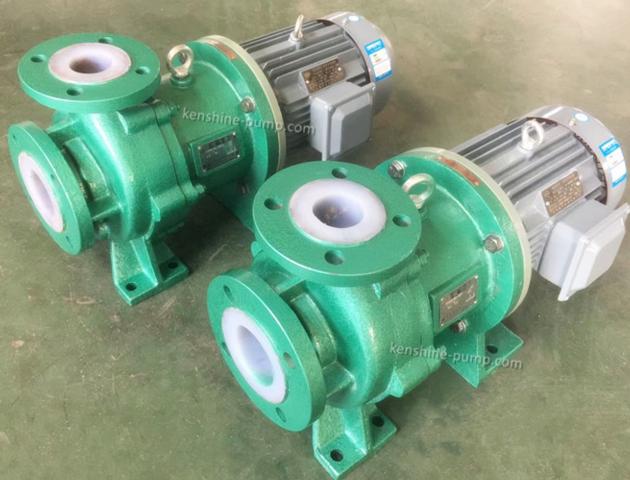

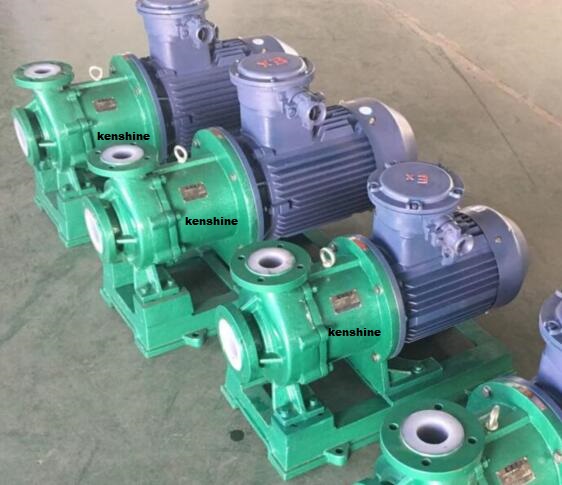

CQBF fluorine plastic magnetic pump has the flow parts of fluorine plastic with very good corrosion resistance. CQBF fluorine plastic magnetic pump is used for Electroplating wastewater, pickling and polishing, medicine and pesticide, fine chemical industry, iron and steel metallurgy, etc. CQBF Fluorine plastic magnetic pump is Suitable for acid, alkali, salt, organic solvent, etc. Flow range: 0.6t/h-100t /h, head range: 2m-50m, power range: 0.025kw -- 18.5kw, operating temperature: -20 to 150 degree Celsius. The configuration can be changed according to the actual working conditions

Model Caliber Flow Head Power Speed Voltage Weight
Inlet(mm) Outlet(mm) (L/min) (m) (kw) (r/min) (V) (kg)
8CQ-1.2F 8 6 15 1.2 0.01 2800 220
10CQ-3F 10 8 19 3 0.01 2800 220
14CQ-5F 14 10 20 5 0.038 2800 220
16CQ-8F 16 12 25 8 0.18 2800 220/380 13
20CQ-12F 20 14 50 12 0.37 2800 220/380 15/27
25CQ-15F 25 20 110 15 1.1 2800 380 35/53
32CQ-15F 32 25 110 15 1.1 2800 380 37/55
32CQ-25F 32 25 110 25 1.1 2800 380 40/57
40CQ-20F 40 32 180 20 2.2 2800 380 54/72
40CQ-32F 40 32 200 32 4 2800 380 83/105
50CQ-25F 50 40 240 25 4 2800 380 83/105
50CQ-32F 50 40 220 32 4 2800 380 83/105
50CQ-50F 50 40 130 50 5.5 2800 380 115/135
65CQ-25F 65 50 280 25 5.5 2800 380 113/133
65CQ-35F 65 50 450 35 7.5 2800 380 121/155
80CQ-35F 80 65 850 35 11 2800 380
80CQ-50F 80 65 850 50 15 2800 380
