CNC Router Water Cooled ATC Spindle HSD Spindle Motor for CNC Milling Machines

CNC Router Water Cooled ATC Spindle HSD Spindle Motor for CNC Milling Machines

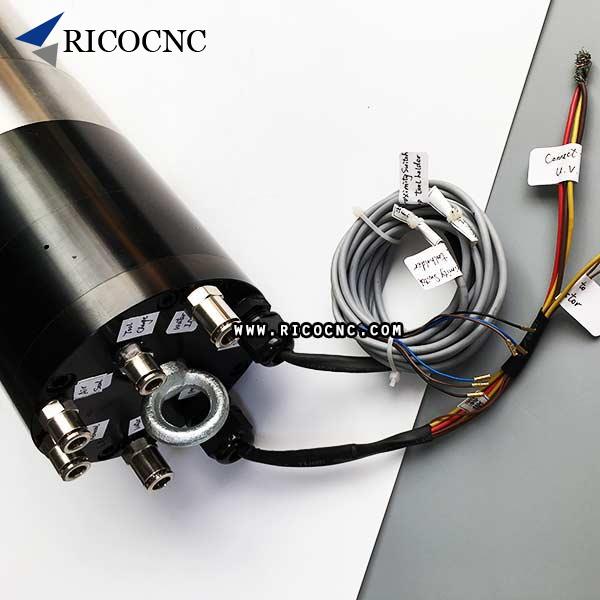

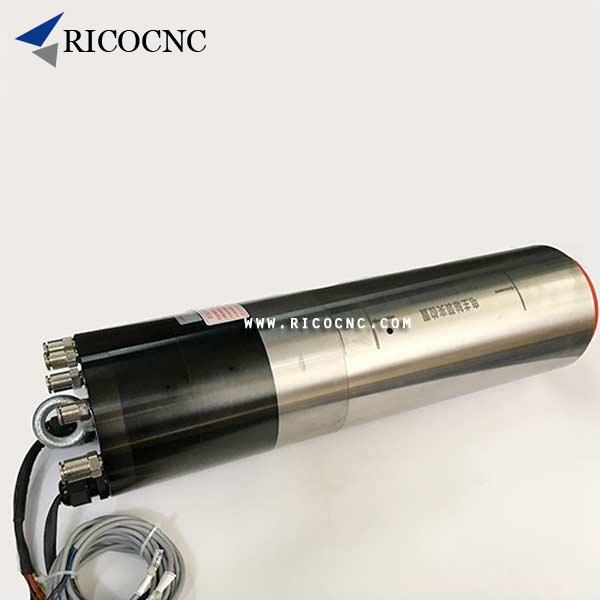

This water cooled spindle is the auto tool changer spindle motor, widely used with CNC routers, CNC milling machine, CNC machining centers.

Water cooled auto tool changer spindle motor with ISO tool holder
GDL80-20-24Z/2.2 water cooled ATC spindle
Power: 2.2kw
Max. rotating speed: 24000rpm
Max. frequency: 800Hz
Current: 7.6A
Input voltage: 220V, 3 phase
Poles: 4
Connection cone type: ISO20
Torque: 0.72Nm
Cooling type: water/liquid cooling
Weight: 8kgs

Chinese ATC Water Cooling Spindle with BT30 Tool Holder

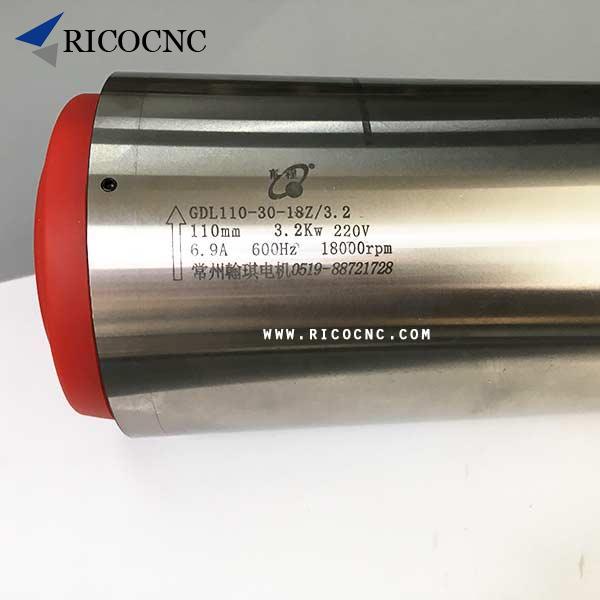

GDL110-30-18Z/3.2 water cooled ATC spindle
Power: 3.2kw
Max. rotating speed: 18000rpm
Max. frequency: 600Hz
Current: 11.5/6.9A
Input voltage: 220V/380V
Poles: 4
Connection cone type: BT30
Torque: 1.7Nm
Cooling type: water/liquid cooling
Weight: 23kgs

120TD18Z5.5A water cooled ATC spindle
Dimaeter: 120mm
Power: 5.5kw
Max. rotating speed: 18000rpm
Max. frequency: 600Hz
Current: 20A
Input voltage: 220V, 3 phase
Poles: 4
Connection cone type: BT30
Torque: 3.9Nm
Length: 410mm
Cooling type: water/liquid cooling
Garanty: Bearings for half year, other part 1 year

A range of CNC spindle motors supplied here:
GDL80-20-24Z/1.5
GDL80-20-24Z/2.2
GDL80-20-30Z/1.5
GDL100-25-24Z/2.5
GDL110-30-18Z/3.2
GDL110-30-24Z/4.5
GDL120-30-18Z/5.5
GDL120-30-24Z/6.5
GDL125-30-18Z/7.5
GDL125-40-12Z/7.5
GDL120-30-18Z/5.5
GDL150-40-12Z/12
GDL150-40-12Z/7.5
GDL170-40-10Z/14
GDL70-24Z/9.0 long nose
GDL70-24Z/9.0 short nose
GDF46-18Z/1.5
GDF46-18Z/2.2
GDF46-18Z/3.5
GDF60-18Z/4.5
GDF60-18Z/6.0
GDF60-18Z/7.5
GDZ-22
GDF87-18Z/13.5
GDF65-24Z/0.8
GDF80-24Z/1.5
GDF80-24Z/2.2
GDF46-18Z/1.5
GDF46-18Z/2.2
GDF46-18Z/3.5
GDF53-18Z/3.5
GDF60-18Z/4.5
GDF60-18Z/6.0
GDF60-18Z/7.5
GDF52-18Z/5.0
GDF60-18Z/4.0
GDF60-18Z/5.5
GDK80-12-24Z/1.2-2.4
GDK100-12-24Z/2.2-4.4
GDK105-9-21Z/2.2-5.0
GDK110-9-18Z/2.2-4.4
GDK120-9-18Z/4.0-8.0
GDK120-9-18Z/5.5-11
GDK58-24Z/0.8
GDK58-24Z/0.8D
GDK125-12-24Z/4.0-8.0
GDK125-9-18Z/4.0-8.0
GDK125-9-18Z/5.5-11
GDK125-9-15Z/5.5-11
GDK150-6-12Z/5.5-11
GDK150-6-12Z/5.5-11B
GDK80-24Z/1.5
GDK80-24Z/2.2
GDK85-24Z/2.2-BJ
GDK100-24Z/3.2
GDK105-21Z/3.5
GDK110-24Z/4.0
GDK110-18Z/4.0
GDK120-18Z/5.5
GDK125-18Z/5.5
GDK125-24Z/5.5
GDZ-12
GDZ-15
GDZ-17
GDZ-17B
GDZ-18
GDZ-18B
GDZ-18-2
GDZ-19
GDZ-23
GDZ-23-1
GDF36-12Z/0.35L
GDF36-12Z/0.35R
GDF36-18Z/0.75L
GDF36-18Z/0.75R

RicoCNC also supplies a lot of cnc spare parts, CNC cutters, and edgebander accessories, welcome your inquiry.
