CJM250 Mini Lathe Machine

CJM250 Mini Lathe Machine
mini lathe
Lathe Machine Product description:
1.Most economical，widely useful hobby lathe.
2.Power longitudinal  feed allows threading.
3.V-way a depot double triangle and rectangle side way.
4.Easy access to safety switches.
5.Spindle is supported by precision tapered roller bearing.

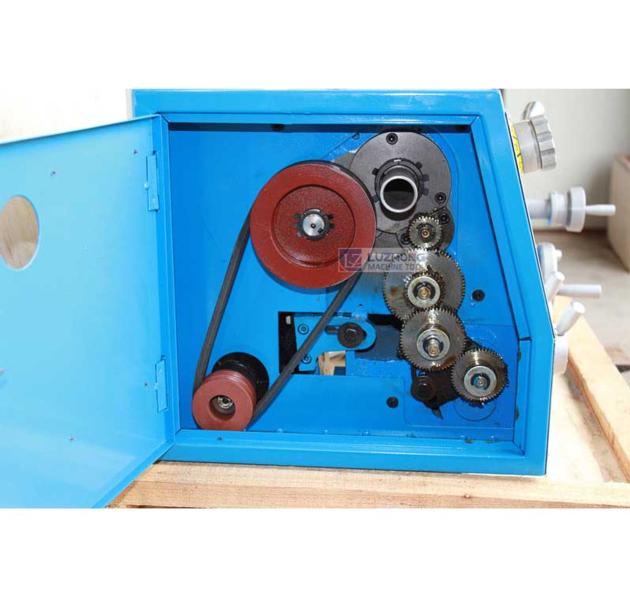

6.Head stock be gear drive power.
7.Large MT4 spindle bore.
8.High precision chuck.
9.Induction cuts with cross & longitudinal power feed
Bench Lathe main technical Specifications:
Specifications Units CJM250
Max.swing over bed mm 250
Max.processing length mm 500
Max.swing over cross slide mm 150
Spindle hole diameter mm 26
Taper of spindle mm No.4
Spindle mm 80—1600r.p.m  12
The maximum horizontal stroke of cutter mm 130
The knife frame maximum longitudinal travel mm 75
Processing metric thread number 15
Processing range of metric threads mm 0.25-2.5
Processing inch thread number 9
Processing range of inch threads TPI 12-96
Longitudinal feed spindle turret at every turn mm 0.03－0.275
The transverse feed amount per turn spindle turret mm 0.015－0.137
Tailstock sleeve travel mm 60
Taper of tailstock sleeve mm No.3
Electric machinery w 750W/380V/50HZ
Gross / net weight kg 180/163
Dimensions (length * width * height) mm 1130×550×405
Packing size (length * width * height) mm 1200×620×600
