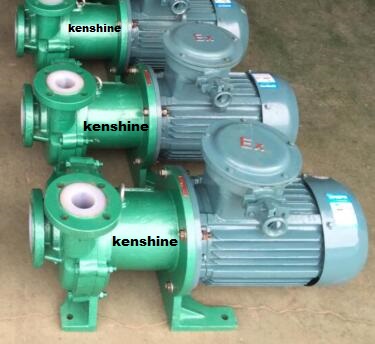

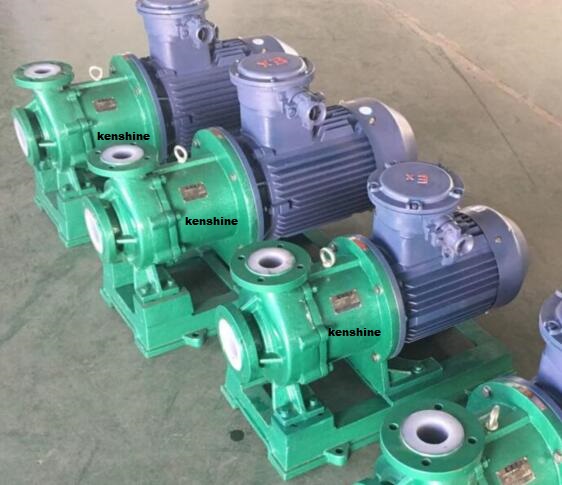

CGF Fluorine plastic lining magnetic chemical pump

CGF no leakage fluorine plastic lining high temperature magnetic pump adopts magnetic principles. When the motor drives the outer magnetic cylinder to rotor, the inner magnetic cylinder assembly is affected by magnetic force and rotates with impeller to discharge the fluids.

The flow parts for CGF fluorine plastic lining magnetic pump is fluorine plastic( PTFE,FEP,PFA). The pump body is made of cast iron with fluorine plastic liner. CGF Fluorine plastic lining magnetic pump is used to transfer strong acid, alkali, oxidant and corrosive fluids. The pumped fluids are sealed into the spacer sleeve for no leakage. Pump and motor is connected by shaft coupling.

Transport medium: Sulfuric acid, hydrochloric acid, hydrofluoric acid, royal water, bromide etc.



Application:

Chemical industry, medicine, acid making, hydrofluoric acid, flammable, explosive, volatile, high risk industries etc.



Performance range:

Caliber: 25 to 200mm

Flow rate:1.5 to 400m3/h

Head:10 to 80m

Speed:1450rpm or 2900rpm

Working temperature:-20 to 160 degree Celsius.

Pump material: fluorine plastic (PTFE,FFA,FEP)
