CFXG-5002High Speed Paper Straws Machine
| Price: | US$ 26000 |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | FOBCIF |
| Port of Export: | Ningbo |
Product Details
| Model No.: | CFXG-5002 | Brand Name: | sanlin |
|---|
| Certification: | |
|---|---|
| Specification: | Technical Parameter Control System Paper Layer 3 layers Motor 3.0kw (1.5kw * 2pcs)Inner Diameter 5-12mm Motion Controller Panel MasterWall Thickness 0.3-1mm Operating Panel Panel MasterStable Speed 1-40m/min. Language EnglishWinding Nose Two noses single belt Inverter 3.7kw SchneiderMachine & parts Painting Electric Components SchneiderLength fixing Encoder Pneumatic Components JingweiSpeed Control By Inverter Servo Motor SchneiderCutting System Multi-blades; 5 pcs online Servo Driver SchneiderSynchronism tracking cutting system Servo motor synchronism tracking Screw Rod Shangyin Slider ShangyinPaper straw collecting Manually Bearing HaerbinOperator 1-2 person ConfigurationWorking Air Pressure 0.6Mpa Paper Reel Stand 3 LayersPower Supply 380V / 3phases / 50 Hz Gluing Unit 3 Layers Measurement & Weight Belt 5 PiecesMeasurement 3500*1500*1200mm Mandrel Shaft 2 Pieces Working Space 7000*5000mm Extra blades 5 PiecesWeight 1300kgs Useful Tool 1 Set |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | |
| Production Capacity: |
Product Description
Product Introduction

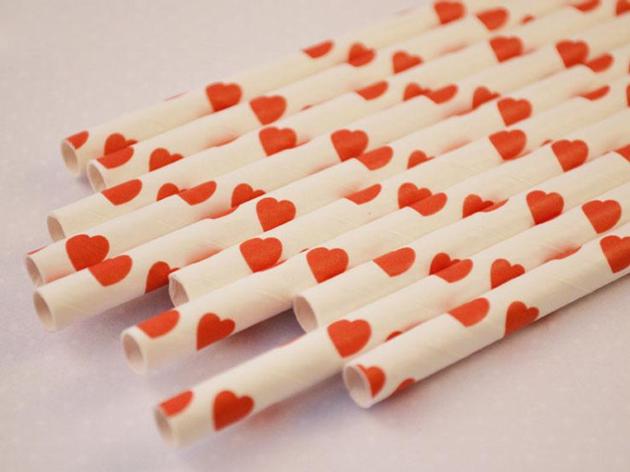

This Machine is suitable for producing different sizes ofpaper straws, such as 5mm; 6mm; 8mm, 10mm etc.
1. Adopted with PLC controller, main motor is equipped with variable frequency speed regulation, touch screen man-machine interface.Easy for parameters setting & operating.

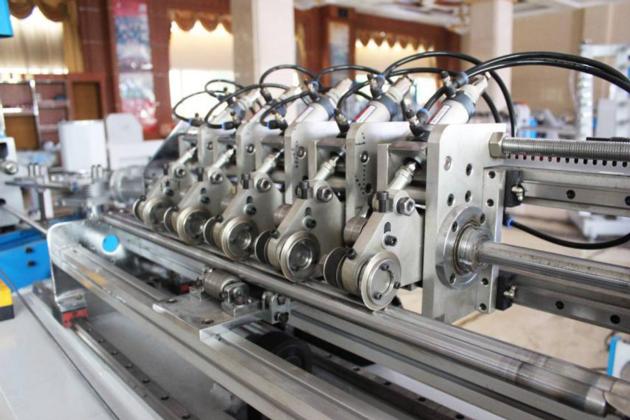

2. Cutting section adopted with numerical multi-blades cutting system.Servo synchronous tracking cutting system makes it higher precisionand multi-blades cutting makes it higher efficiency
3. Machine body and main spare parts made by stainless steel instead of painting. Ensure the hygiene and environmental protection of the products.
Our service
1.One year guarantee time.
2.Present a set of wearing parts in wooden case before delivering the machine for free.
If parts (except wearing parts) are broken within guarantee time they will be changed for free.
(it is not caused by human factor)
The client should pay for the cost following:
1. Visa fee
2. Air ticket
3. Diet
4. Accommodation
5. Labor fee:50 USD/day (within guarantee time)
100 USD/day (without guarantee time)
|
