CBN Wheel For Camshaft Grinding for high-efficient heavy grinding [email protected]

Type: 1A1 CBN grinding wheel
Brief Introduction : Vitrified bond CBN Grinding Wheel is suitable for high-efficient heavy grinding of camshaft of automobile parts .
Application: Auto Processing Industry

Details

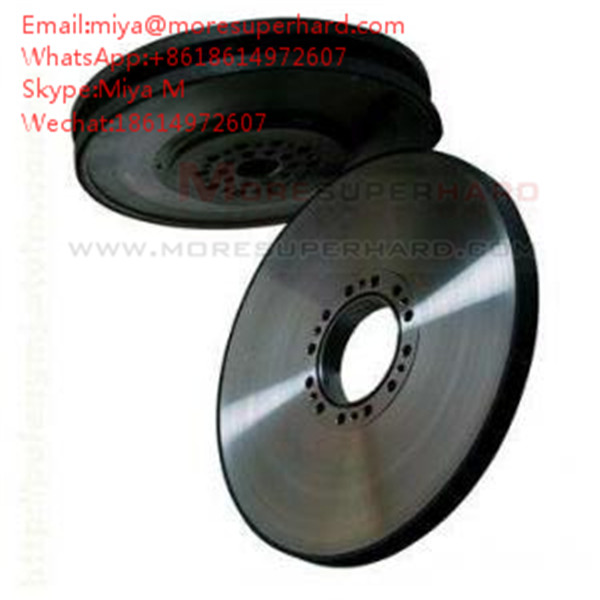

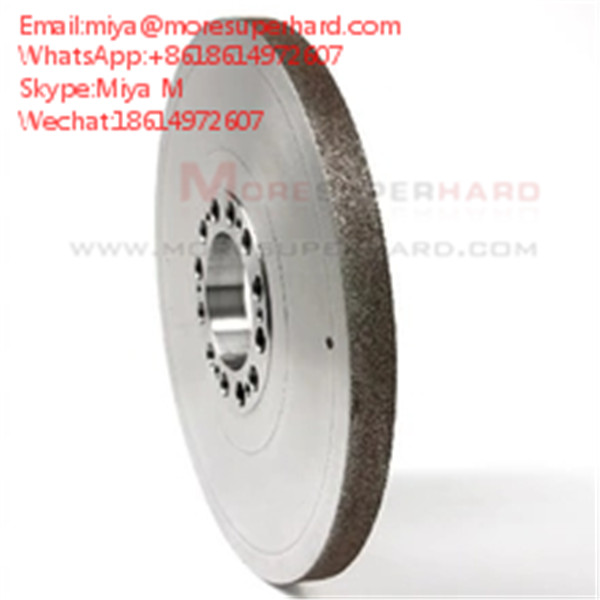

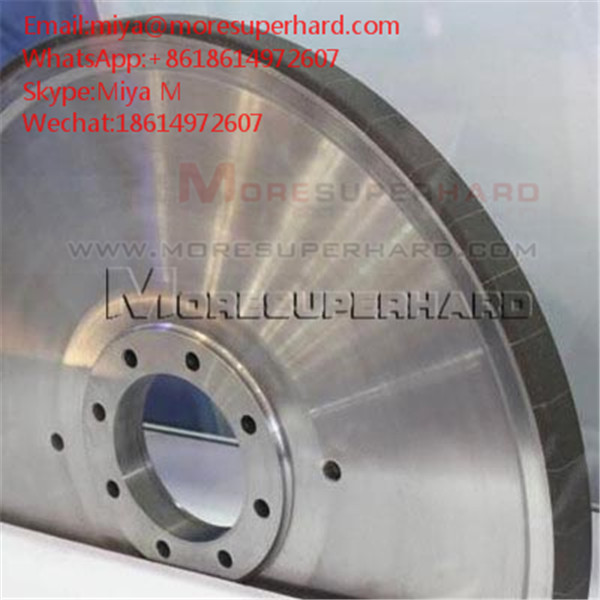

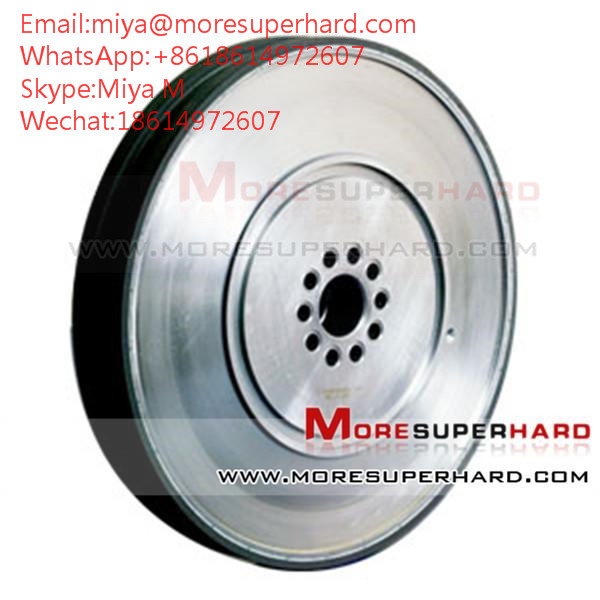

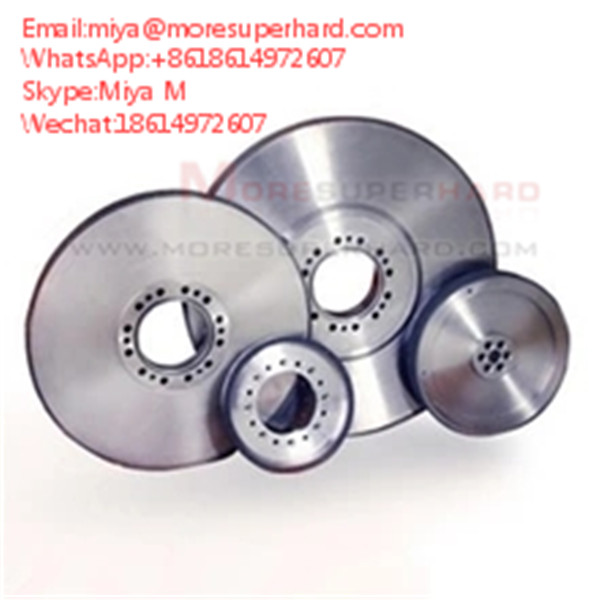

Introduction of vitrified CBN grinding wheels for camshaft:
Vitrified bond CBN Grinding Wheel is suitable for high-efficient heavy grinding of camshaft of automobile parts.The wheel speed is 80m/s-160m/s,Designed to used on CNC Cam Grinders like Toyoda,Schaudt,Landis,Junker etc.
The features of vitrified CBN grinding wheels for camshaft:
sharp cutting, high efficiency, long life, less heat and jam generated in grinding, easy control of the precision and easy dressing.
The specifications of vitrified CBN grinding wheel for camshaft:
Model D (mm) T (mm) H (mm) X (mm)
1A1 150 6 32 3, 5
1A1 200 10 32 3, 5
1A1 250 10 75, 152.4 3, 5
1A1 300 12 127, 152.4 3, 5
1A1 350 15 25, 40, 100, 152.4 3, 5
1A1 400 14 100 3, 5, 8
1A1 450 15 100 3, 5, 8
According to customers requirements .
Model and Type D (mm) T (mm) H (mm) X (mm)
vitrified CBN 1A1 150 6 32 3

Our products Range:

1. vitrified bond/resin bond/Metal bond/Electroplated diamond grinding wheel & other diamond tools
2. PCD milling tools, pcd turning tools, pcd drilling tools, pcd engraving tools,pcd/pcbn inserts, pcd/pcbn cutting tools, pcd/pcbn grooving tools,CBN inserts
3. PCD/TSP diamond, CVD diamond tools, Natural diamond tools, diamond abrasive tools
4. diamond grinding&cutting discs, diamond cutting blade, diamond cup wheel, diamond dressers
5. Roller cutting tools, PDC cutters, pdc drill bits& pdc core bits
6. PCD tool grinder & pcd grinding machine

Please don't hesitate to contact me if you have any needs:miya AT moresuperhard.com
Our company also produces a series of diamond and CBN tools,welcome to consult and choose at any time
