CBN Grinding Wheels For Band Saw Blades [email protected]

Product introduce

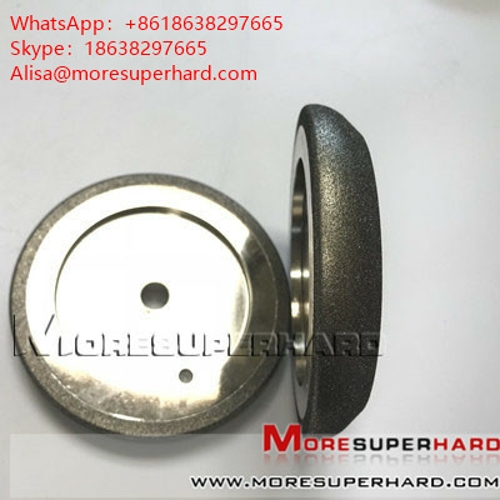

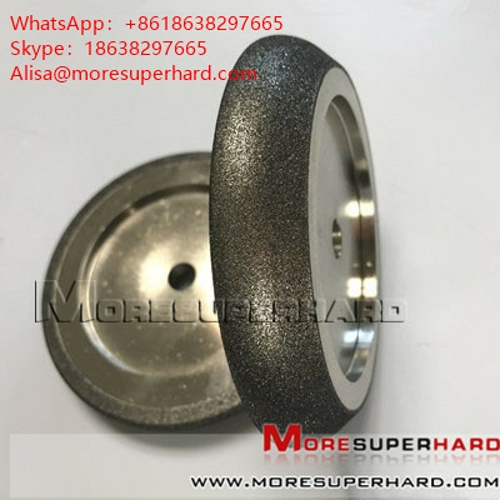

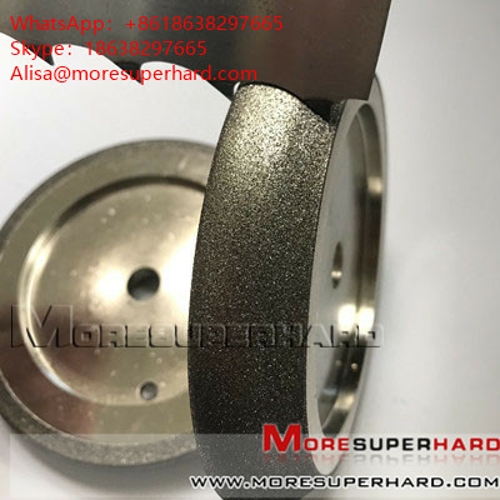

CBN Borazon Band Saw Grinding Sharpening Wheels Have Very Long Working Life .Wheel Is Profiled To Match Band Saw Teeth. Used Correctly Lasts Very Long And Gives Superior Finish .
Diameter: 127mm, 150mm, 203mm
Band Saw:Wood-Mizer (WM), Lenox, Simonds, Hakansso

Product characteristics
1:very sharp grinding
2.high grinding efficiency
3.High machining precision
4.Good shape preservation
5.Various shapes

product application
Electroplated （Galvanic）CBN Profile Grinding Wheels Are Specially Used For Bandsaw Sharpening, CBN Be Plated On The Surface Of Steel Substrate By Electroplating Process To Obtain Accuracy Profile, It Ensure The High Quality Teeth Shape.

Specification Of CBN Grinding Wheels:
Diameters: 127mm (5 Inch), 150mm (6 Inch) , 203mm (8 Inch)
Holes:12.7 Mm, 20 Mm, 25.4 Mm Or 31.75 Mm
Mostly Used CBN Wheel Are For Band Saws Of Following Producers:
WM Profiles, Mill, Simonds, Dakin-Flathers Ripper37 (22mm,19mm), Lenox, Lenox Woodmaster C, Munkfors, Fenes, Armoth, Hakansson, Ro-Ma, Wintersteiger And Others...

Different Wheel Profiles For All Kind Of Wood And Seasons Are Available
1. 10/30 - Mostly Used Universal Grinding Wheel Profile
2.9/29 - Perfectly Prepares Band Saws For Winter Time Cutting, Or Cutting Hard Wood
3. 13/29 - Wheel Profile Which Prepares Band Saws For Soft Wood Cutting
4.4/32 - Wheel Profile Which Can Prepare Band Saws For Very Frozen And Very Hard Wood Cutting
5.7/34 The CBN Wheels Profile Is Recommended For Hardwood


Advantages of electroplated diamond & CBN wheels:
1.No dressing procedure necessary,Body can be re-plated several times
2.High geometric and proportion precision,Complicated forming
3.retain their original shape and dimensions throughout their working life
4.Simple electroplated process, less investment convenient manufacturing
5.Excellent surface roughness, high grinding efficiency , long tool life
6.free-faster cutting, no dressing, less heating due to the diamond particles protruding from the surface.

Why choose our product?
Our product’s advantages:
1.High grinding efficiency
2.Wonderful edge quality
3.Long service life
4.High polishing efficiency
5.Large Exports
6.Considerable after-sell service
7.Amazing performance
8.Various types and sizes available
9.Direct Factory Manufacturer
10.Backing/substrate material: Aluminum
11.Abrasive layer: diamond
12.Bond: vitrified
13.Excellent cutting edges
14.Reduced cycle times
15.Custom Engineered


If you have any questions, please contact us
WhatsApp:+8618638297665
Skype:18638297665
*
Tel:18638297665
URL:*
Please provide us details when you order, For example,
Product needed: Resin bond diamond grinding wheel
1) Diameter   (25, 40,100,200,300…750mm)
2) Hole/state bore dimension
3) Thickness   (4/5/6/8/10/…40/50/60mm)
4.Shape(1A1/1A1R/1A8/1A1W/1L1/1F1/6A2/12A2/11V9/4A1/14A1…)
5) Grit size (16/18, 18/20…40/45,80/100…325/400. In GB or ISO standard)
6) Other request
