CBD filling oil machine, disposable filling oil, vape filling oil equipment

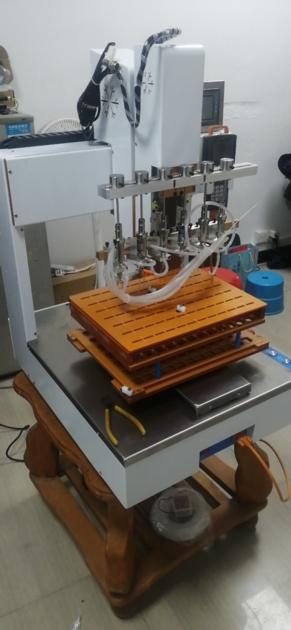

full-automatic needle pipe oil machine parameters(disposable filling oil machine)

1. Model: XY-TF-331-SG
2. Control system: handheld programmer + display and control integrated touch screen
3. Travel range: X axis: 300 Y axis: 300 Z axis: 100
4. Repeat positioning accuracy: §0.01 mm
5. Drive mode: closed-loop motor + screw + precision linear guide

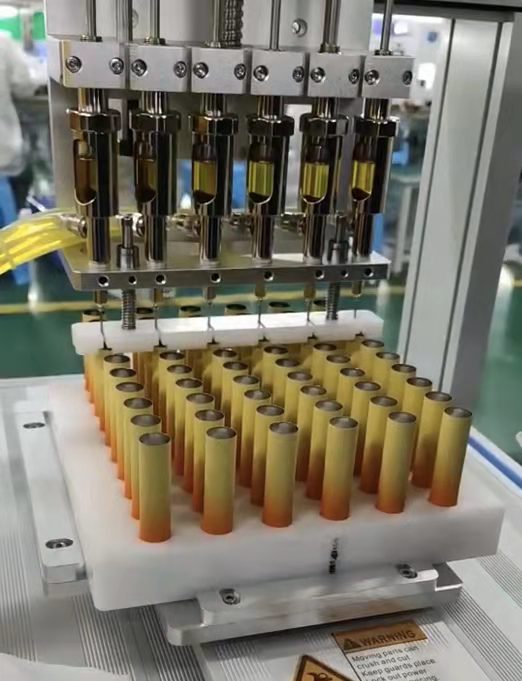

6. Oil injection method: the screw module drives the needle tube piston to move up and down
7. Oil injection accuracy: §0.05ML to §0.08ML
8. Needle oil injection volume: 1 to 4ML (optional), can set the oil injection volume, oil injection speed and set compensation value
9. Capacity: 2-4 seconds/6PCS

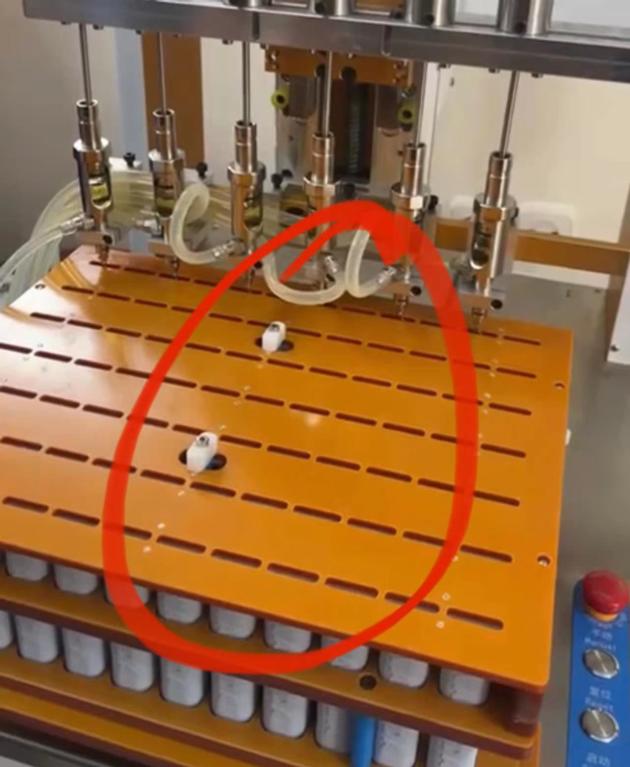

10. Number of oil injection heads: 6 heads (optional)
11. Power supply: AC220V/50HZ
12. Power: 400W
13. Air source: 0.4-0.7MPa
14. Dimensions: 660*670*880mm
15. Weight: about 100 Kg

Machine Features:

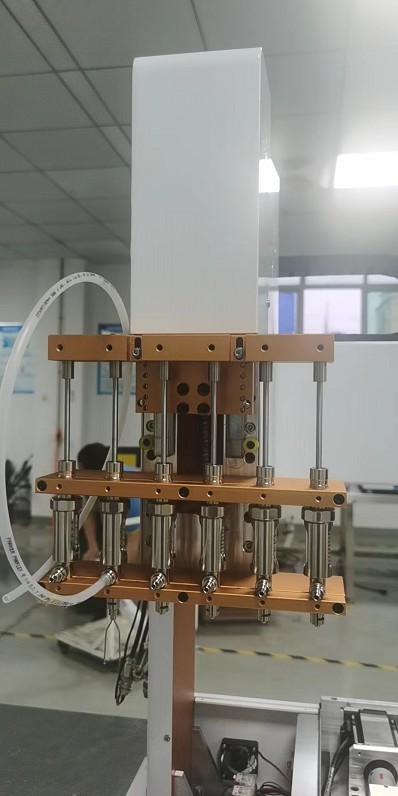

1. The motor + screw rod drives the needle piston to move up and down to realize the function of automatic oil pumping and oil filling, with relatively high precision;
2. The oil injection accuracy is between the pneumatic valve and the precision ceramic plunger pump, which is cost-effective and can meet the customer's oil injection requirements for accuracy within the appropriate range;
3, It can be freely matched with multiple heads to inject oil at the same time, the oil injection efficiency is high, and the operation is convenient and quick.
