CBB65 Compressor Capacitor
scroll left
  • CBB65 Compressor Capacitor
  • CBB65 Compressor Capacitor
scroll right

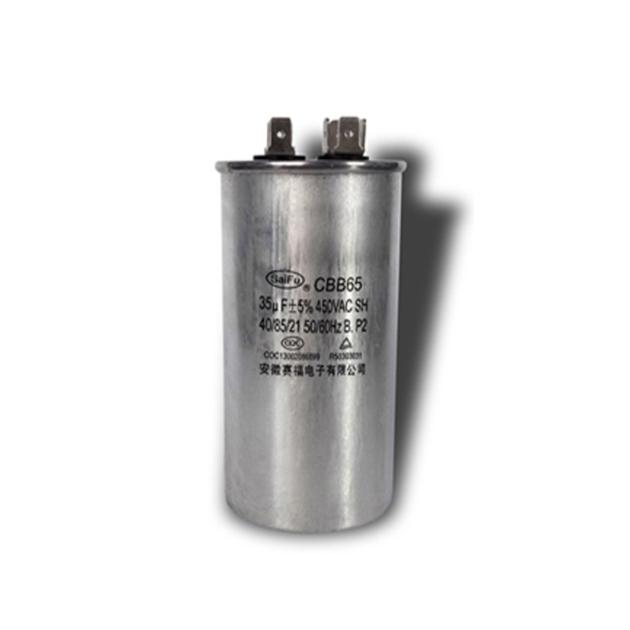

CBB65 Compressor Capacitor

Price: US$ 3 / Piece
Minimum Order: 1 Piece
Payment Terms: L/C T/T
Port of Export: Shanghai or Ningbo
Product Details
Model No.: CBB65 Capacitor Brand Name: Saifu/TOFO
Certification: ISO9001 CQC TUV
Specification: Technical Specifications
Model NO. CBB65 Capacitor
Type Compressor Capacitor
Structure Single Capacitor
Manufacturing Material Polypropylene
Electrolyte Polypropylene Film
Reference Standards GB/T 3667.1(IEC60252-1)
Climatic category 40/70/21,40/85/21
Class of operation Class B(10000h) Class C(3000h)
Class of safety production S2
Voltage range 250VAC 370VAC 440VAC 450VAC
Capacitance range 2uF~100uF
Capacitance tolerance «5% «10% «15%
Dissipation factor 20*10-4(100Hz,20ºC)
Test voltage terminal to terminal UTT 2 Un for 2 seconds
Test voltage terminal to case UTC (2 Un+1000)VAC or 2000VAC-50Hz for 60 seconds
Insulation Resistance ≥3000MΩ.uF(100Hz,20ºC,1min)
Altitude ≤2000m
Remain voltage when put into operation No more than 10% of rated voltage
Maximum allowed voltage No more than 1.1 times rated voltage
Maximum allowed current No more than 1.3 times rated current
Package Type Export Standard Carton for CBB65 Capacitor
Production Capacity 3500,000PCS/Month
MOQ 1PCS
Size Negotiable
* Note:The Composite Capacitor can be also customized producing according to our customer's request.
Packaging & Delivery
Packaging: Pallets,Vacuum Aluminum Package
Delivery/Lead Time: After Payment 7-10 days
Production Capacity: 3500000 Pieces Per Month
Product Description
*Product Description*
The capacitor takes heavy-edge metallized Al/Zn film as electrodes and dielectric.
The elements of CBB65 Capacitor are tightly wind by high-velocity winders and canned in aluminum cases.
The second generation of machine anti-explosion design is selected ad blast -proof secure measure for our capacitors.And the reliability is more affirmatively enhanced.

Technical Specifications
Model NO. CBB65 Capacitor
Type Compressor Capacitor
Structure Single Capacitor
Manufacturing Material Polypropylene
Electrolyte Polypropylene Film
Reference Standards GB/T 3667.1(IEC60252-1)
Climatic category 40/70/21,40/85/21
Class of operation Class B(10000h) Class C(3000h)
Class of safety production S2
Voltage range 250VAC 370VAC 440VAC 450VAC
Capacitance range 2uF~100uF
Capacitance tolerance «5% «10% «15%
Dissipation factor 20*10-4(100Hz,20ºC)
Test voltage terminal to terminal UTT 2 Un for 2 seconds
Test voltage terminal to case UTC (2 Un+1000)VAC or 2000VAC-50Hz for 60 seconds
Insulation Resistance ≥3000MΩ.uF(100Hz,20ºC,1min)
Altitude ≤2000m
Remain voltage when put into operation No more than 10% of rated voltage
Maximum allowed voltage No more than 1.1 times rated voltage
Maximum allowed current No more than 1.3 times rated current
Package Type Export Standard Carton for CBB65 Capacitor
Production Capacity 3500,000PCS/Month
MOQ 1PCS
Size Negotiable
* Note:The Composite Capacitor can be also customized producing according to our customer's request.

*Appearance & Application*
Installation Type: Surface Mount
Shape: Cylinder or Ellipse
Capacitor Case: Aluminum Case
Application: CBB65 capacitor applied to General purpose,AC motor,Power,Lighting,Air Conditioner,High voltage,Automobile,Fan,etc.
CBB65 capacitor broadly applied to starting and running of AC single-phase motors at 50Hz/60Hz frequency for family air conditioners and high power illuminators for the sake of power factor compensation.

*Packing&Delivery*
Packing: Export Standard Carton Packing for Capacitors
Delivery Detail: 7~10 days after payment
Port: Shanghai or Ningbo

*Advantages*
1.Leading tachnology: Our quality management system are certified by ISO9001 and our products have CQC,TUV,UL,VDE and other performance certifications.
2.Reliable productivity: Our company now has 3 high-vacuum coating machines,10 high-speed Sillting machines,6 winding machines and for -gun gold spary system and other automatic equipments.
3.Reasonable price: Executive"Industrial products 10% Profit in the first."
4.Large inventory: This is the guarantee of the timely delivery.
5.Fexible production: User-specific products,starting from the next single.
6.Cordial service: 7*24 hours online,prompt reply and timely delivery.

*Welcome To Contact Us*
Company Name: Anhui Safe Electronics Co.,Ltd
Add: No.1771 Qifeng Road, Shizishan National High Technology Zone, Tongling, Anhui, China
Tel: 0086 0562 2821018
Fax: 0086 0562 2821558
Mobile Phone: 0086-13305620368 (Helen Hu)
Mail Adress: *
Website: *

There is no best product, only the most suitable products!
