CAT7 600 Mhz Ethernet Cable Fluk pass
| Price: | US$ 78 |
|---|---|
| Minimum Order: | 100 |
| Payment Terms: | FOB |
| Port of Export: | NingBo |
Product Details
| Model No.: | Brand Name: | XingFa Cable or OEM |
|---|
| Certification: | CE,Rohs,REACH, UL,ETL, ISO,ICE, TIA,EIA |
|---|---|
| Specification: | CAT7 600Mhz High speed Lan cable |
Packaging & Delivery
| Packaging: | 305 meter per box |
|---|---|
| Delivery/Lead Time: | 20-30 days |
| Production Capacity: | 200,000Km |
Product Description

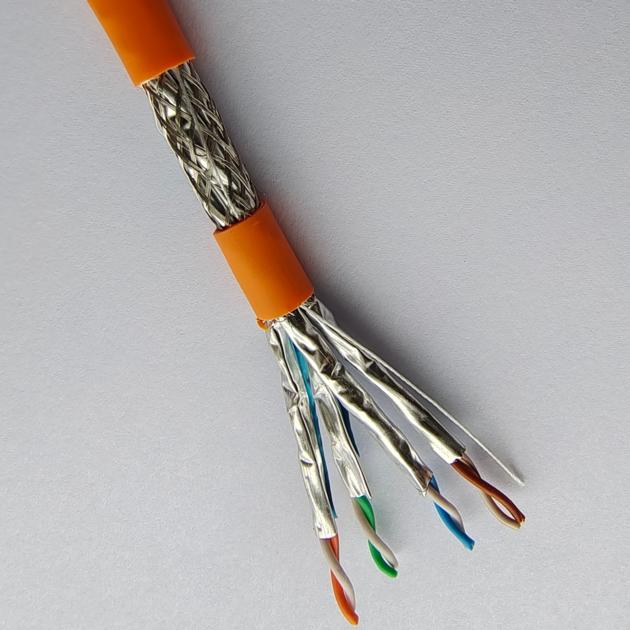

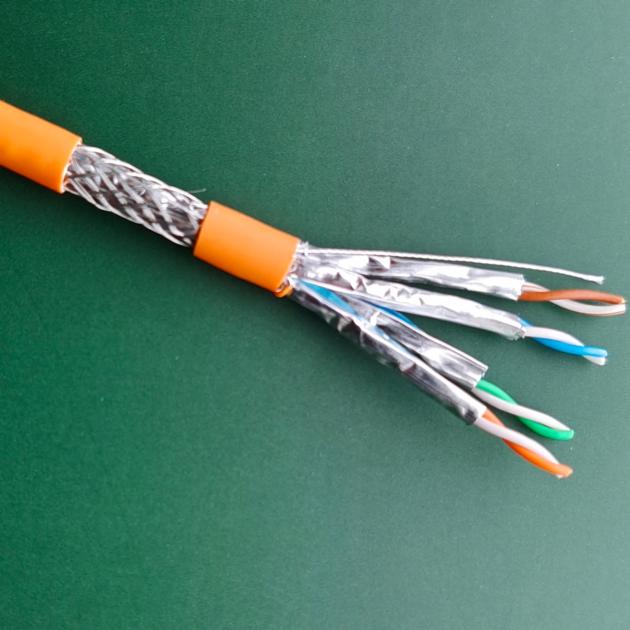

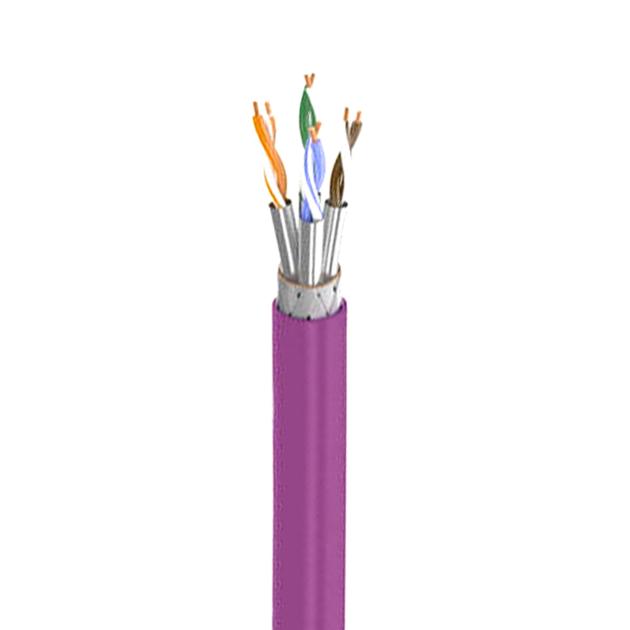

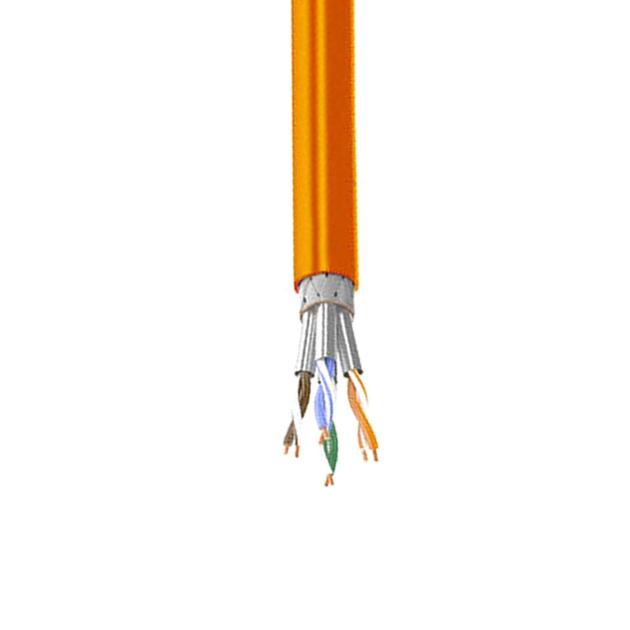

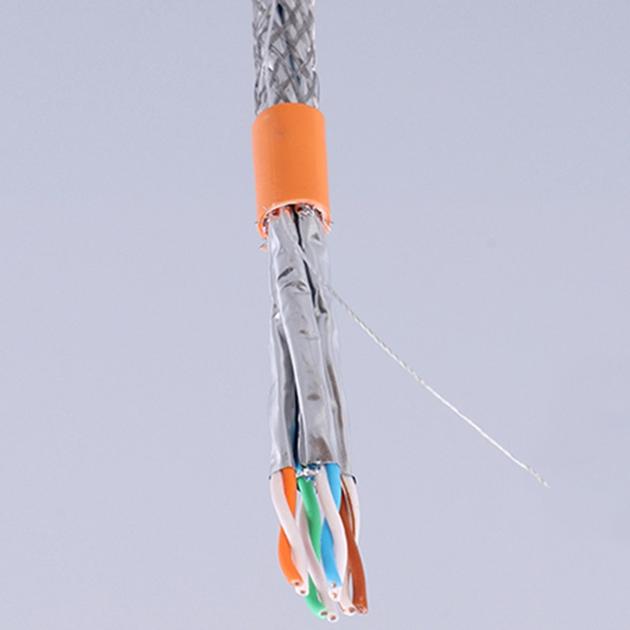

Construction
Conductor- 23AWG Bare Copper
Pairs- 4Pairs, Blue/White- Blue,Green/White-Green, Orange/White-Organge, Brown/White-Brown
Insulation-Skin-Foam-Skin
Individual Pair Shield-Al Foil, Al foil face out
Drain Wine-Tined Copper
Shield-Tinned Cooper Braiding
Ripcord-Cotton
Jacket-8.3mm PVC/PE/LSZH
Electrical Characteristics
Impedance: 4-100MHz 100 15Ohms,100-200MHz 100 22Ohms,200-500MHz 100 32Ohms
Max Conductor DC Resistance at 20º C:8.4Ohms/100m
Resistance Unbalance: Max2.5
Capacitance Unbalance: 330pf/100m
Transfer impedance: Max 10 mohms/m@100MHz
Installation Temperature: -30º C-50º C
Operation Temperature: -20º C-75º C
Application
Suitable for structured premises cabling.
For transmission of digital and analogue voice and data signals
Especially suitable for all class F applications
ISDN, Ethernet 10Base-T,100Base-TX,1000Base -T Gigabit Ethernet, 10GBase-T( IEEE 802.3)
Token Ring4/16mBit/s, TP-PMD/TP/DDI 125Mbit/s,ATM 155 Mbit/s(IEEE 802.5)
FLUX Certified 600Mhz high performance
Reference Standard:YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA - 568B
Certificates ISO9001,RoHS 3.0, CPR, UL/ETL, CE, REACH
CAT7 twisted pair Installation cable pass fluke test,CPR,CE,ETL,UL,Rohs
|
