CAT6A 550Mhz 305meter
| Price: | US$ 70 |
|---|---|
| Minimum Order: | |
| Payment Terms: | FOB |
| Port of Export: |
Product Details
| Model No.: | Brand Name: |
|---|
| Certification: | |
|---|---|
| Specification: | CAT6A 23AWG Copper 305 Feet |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | |
| Production Capacity: |
Product Description
Application
1. Meets or exceeds requirements of ANSI/TIA 568.C.2 Category 6 and ISO 11081 2nd Edition class EA channel standards.
2. Meets or exceeds requirements of ANSI/TIA 568.C.2 and IEC 61156-5 category 6A components standards.
3 Third party tested to comply with ANSI/TIA 568.C.2.
4.Meets requirements of IEEE 802.3 af and IEEE 802.3at for PoE applications.
5.Length cable markings enable easy indetification from remaining cables which reduce installation time and cable messed-up.
6.Additional color availablity.

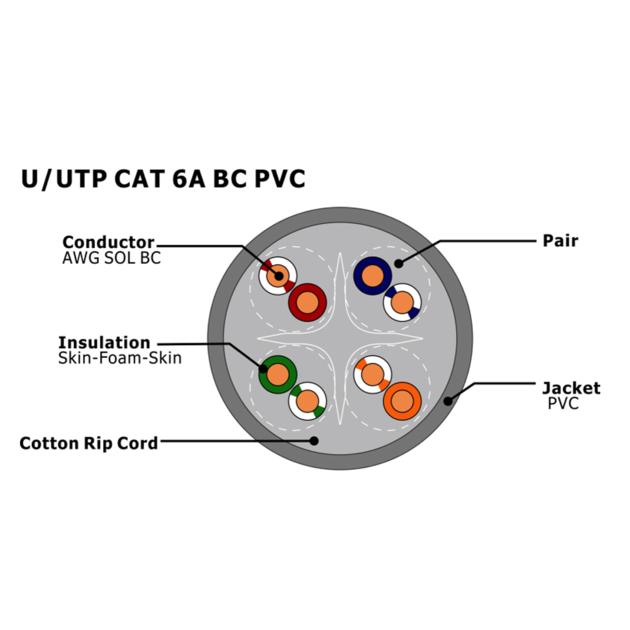

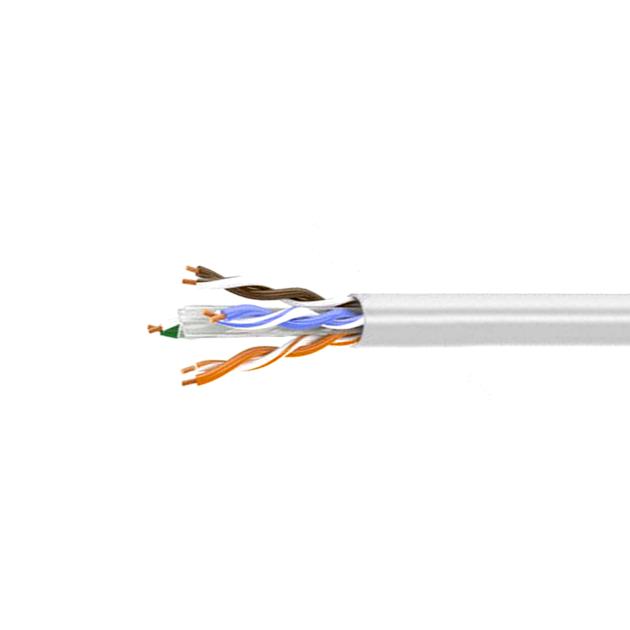

Basic construction
Conductor-23AWG Bare Copper
Pairs- Four Pairs( Blue/White-Blue,Organge/White-Orange,Green/White-Green, Brown/White-Brown)
Insulation- 1.35mm Foamed Polyethylene
Jacket-7.5mm 2mm PVC/PE/LSZH

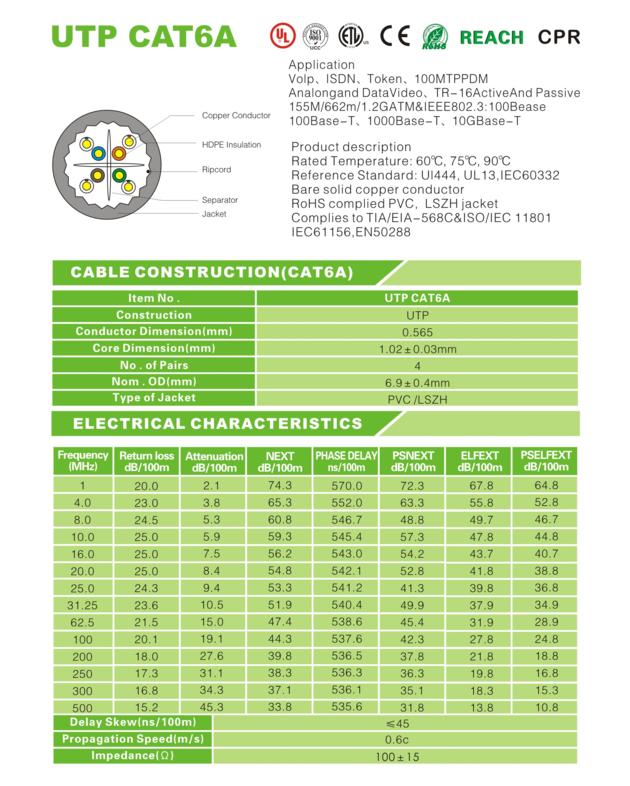

Electricial Characteristic
Impedance 100 15(ohms)
Insulation Resistance: >5000MΩ *KM
Dielectric strength: DC 2500V 2S
Max Conductor DC Resistance at 20º C:8.4Ohms/100m
Resistance Unbalance: Max2.5
Capatacitance Unbalance: 330pf/100m
Transfer impedance: Max 10 mohms/m@100MHz
Installation Temperature: -30º C-50º C
Operation Temperature: -20º C-75º C
|
